CCV PAX A920 - Check Connection

In this step-by-step tutorial, we’ll show you how to perform a connection test to the authorization systems using your CCV PAX A920.

Have you already set up your connection?

Are the connection icons active?

Here we offer you the tutorials for this:

Setting up your WLAN connection

Setting up your SIM connection

Explanation of the Connection Icons

Output display

1)                                                                                        2)

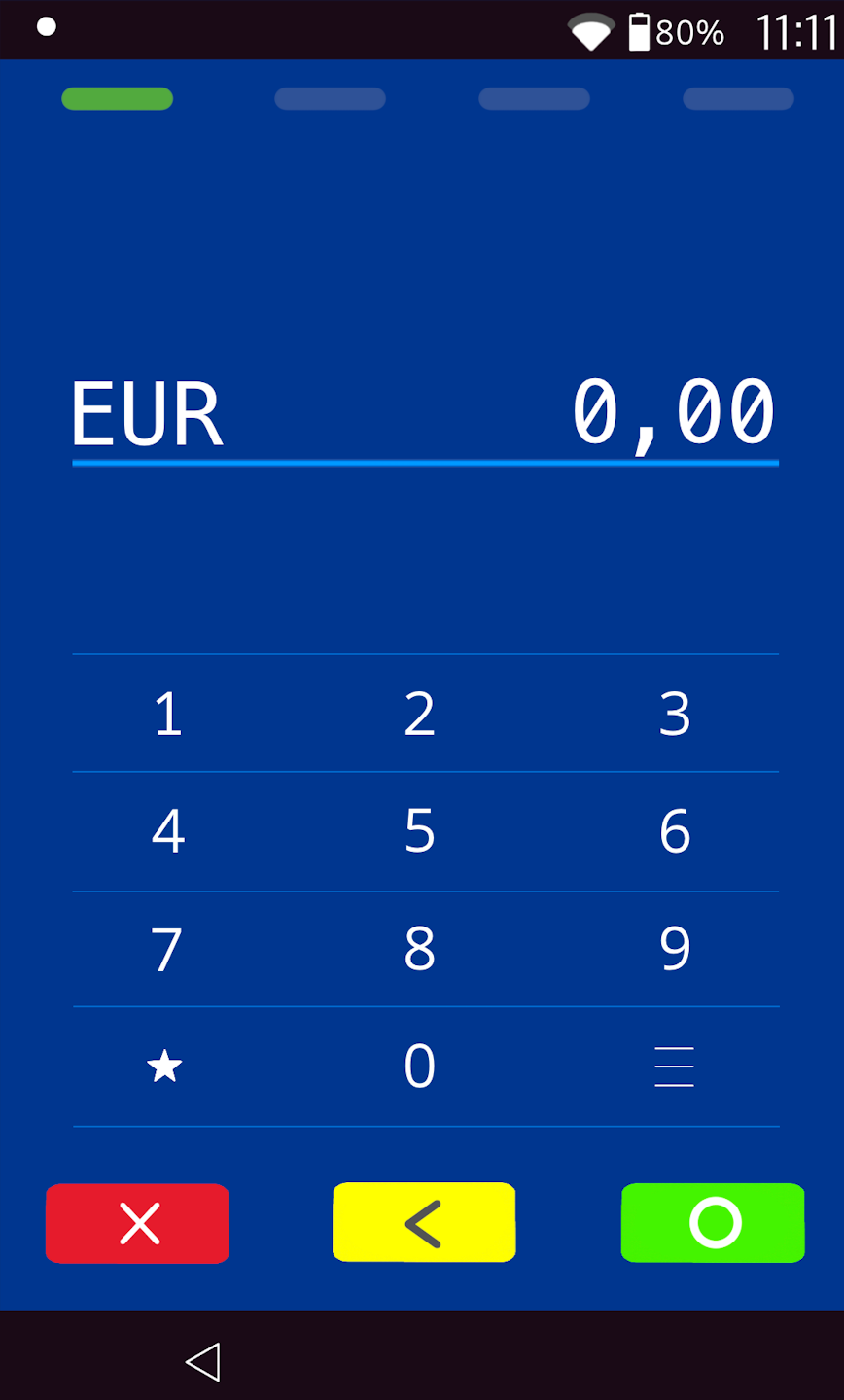

If you see display 1)

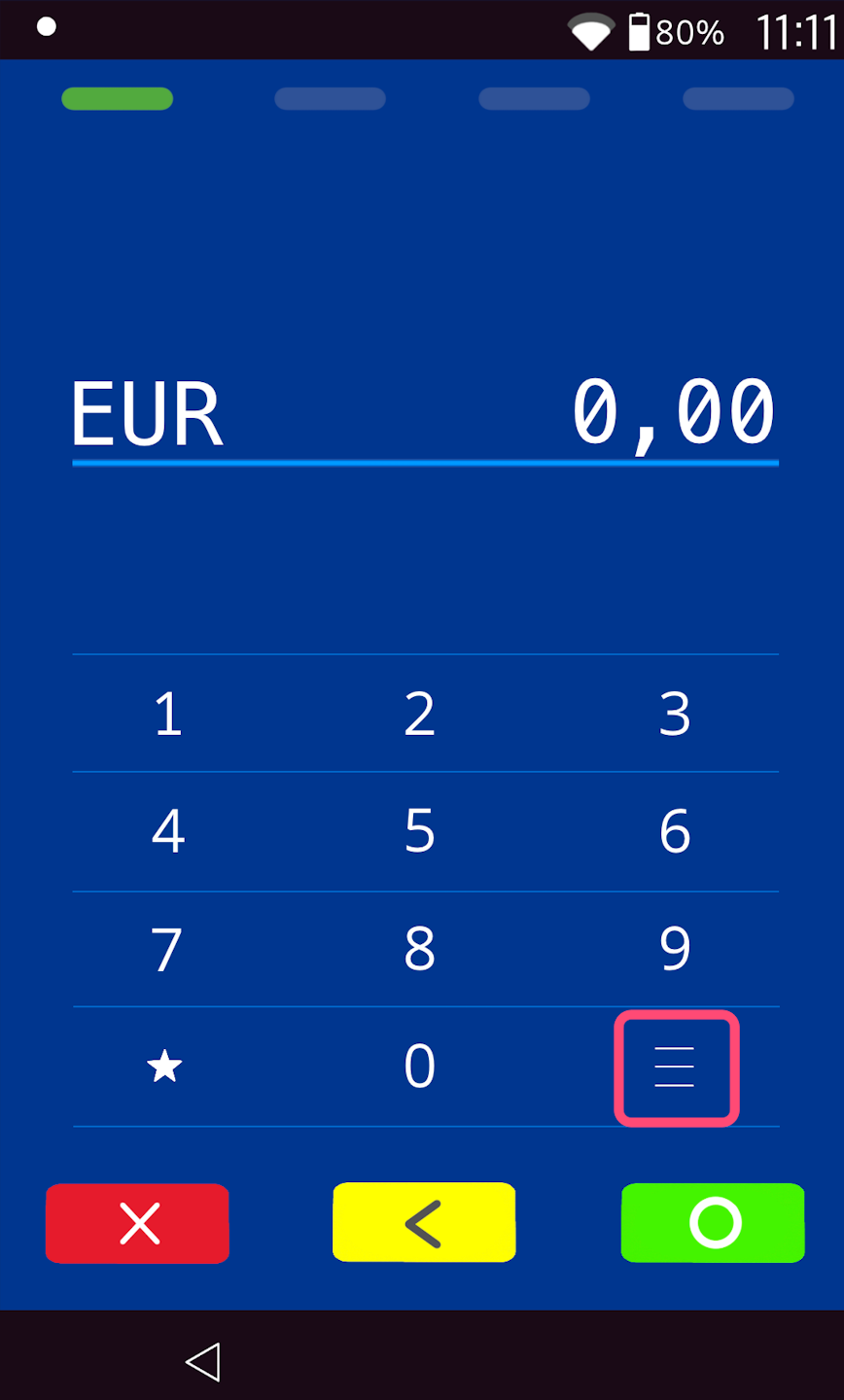

Menu button: please select the three horizontal lines at the bottom right to access the main menu, and continue to PIN Entry.

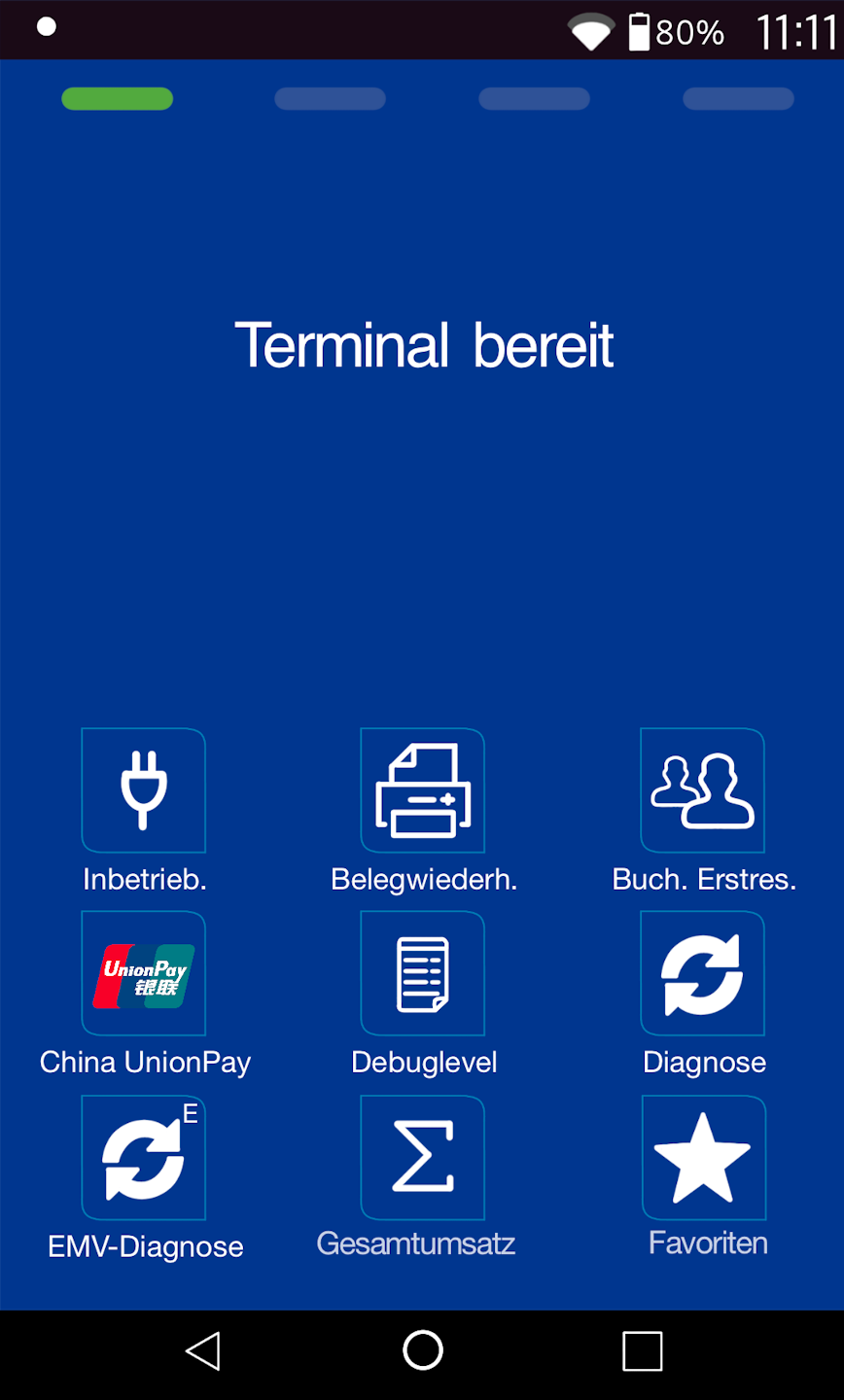

If you see display 2)

Favorites button

In Fig. 1 you can see your output display.

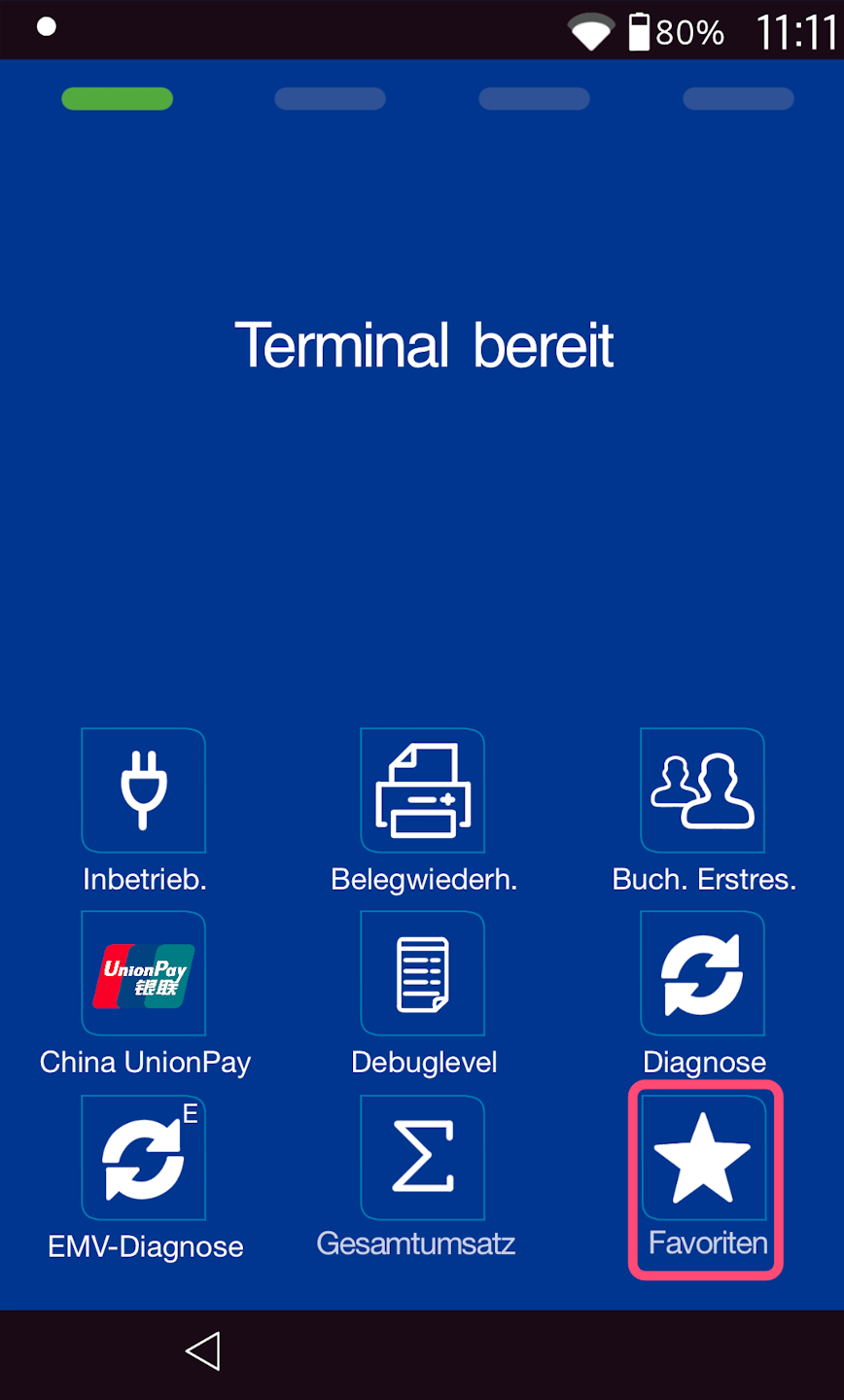

Please select the "Favorites" menu item.

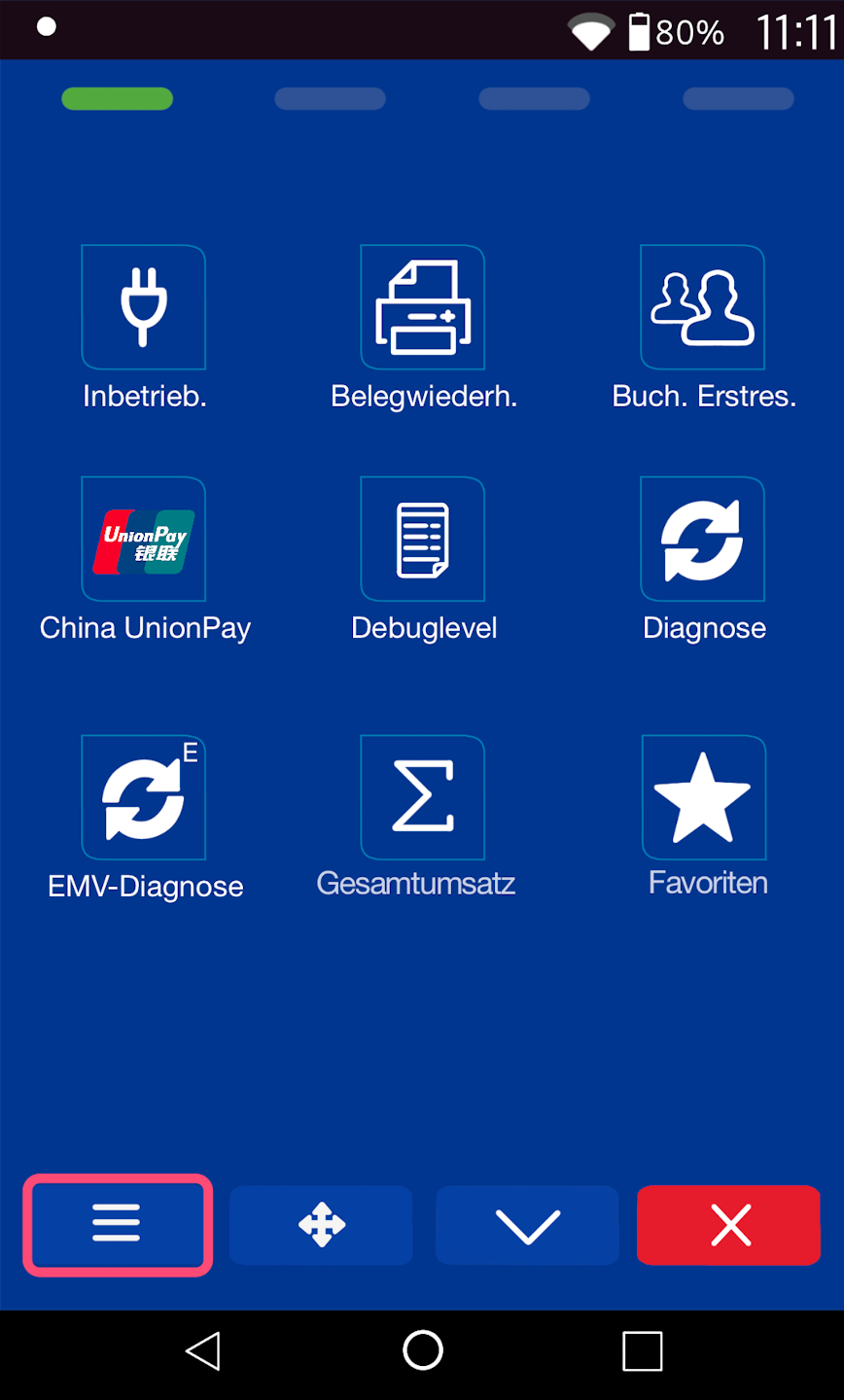

Then, as shown in Fig. 2, select the main menu button.

PIN entry

Please now enter your merchant PIN.

You can find the terminal ID on your merchant receipts or on the POS interface.

• Terminal IDs starting with 68xxxxxx: 111111
• Terminal IDs starting with 526xxxxx: 0123

Please confirm the entry by pressing the green OK button.

Diagnostics

Please tap the menu item Diagnostics.

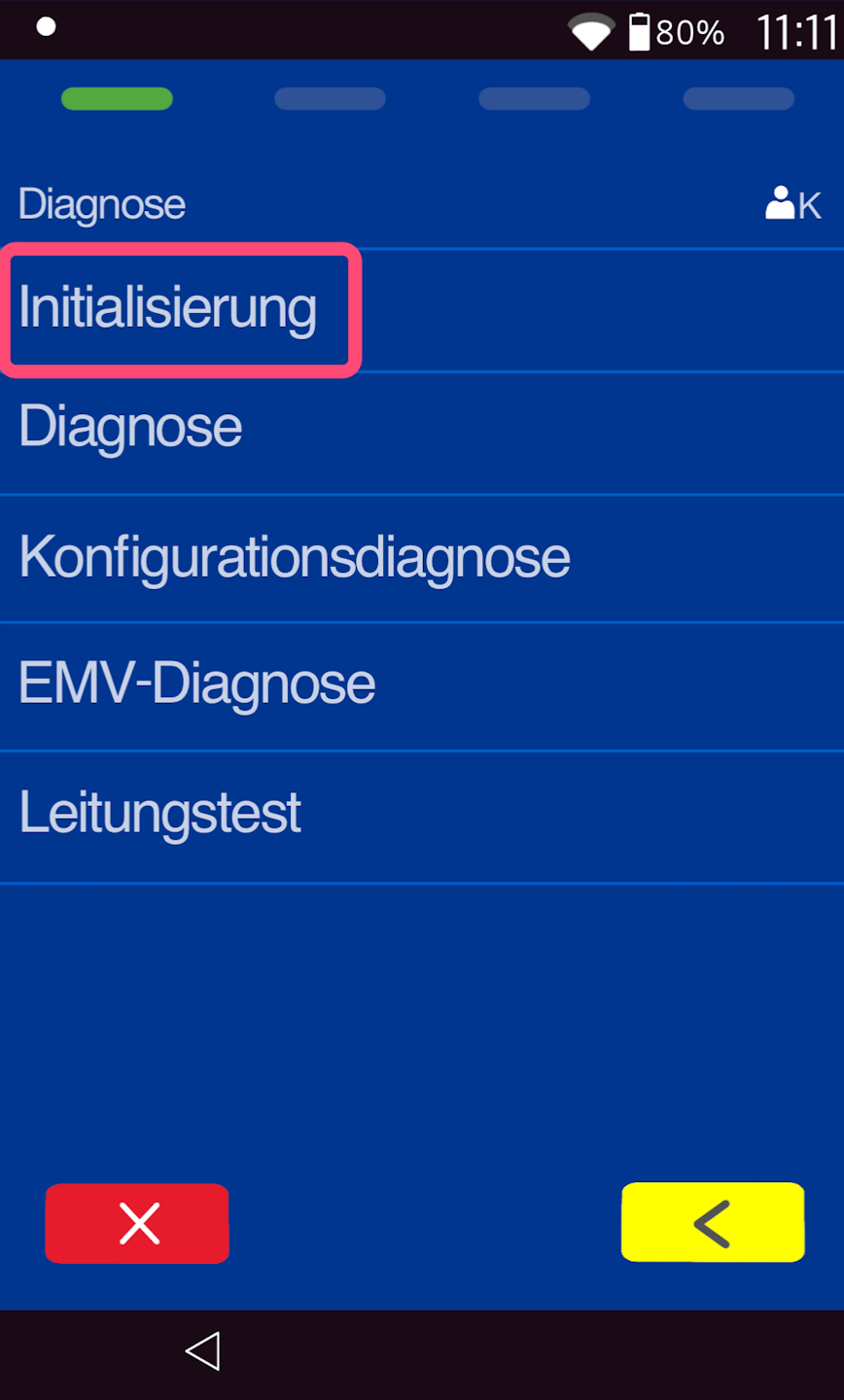

Initialization

Initialization checks whether a connection to our authorizer exists. Additionally, the terminal ID is verified for consistency.

Please select Initialization and confirm the process with the green OK key.

Successful completion will be confirmed with a printout stating "Successfully completed." A second diagnostic printout will follow.

If you receive an error message (e.g., FEP 82), please contact our technical service hotline or use our contact form.

To return to the amount entry screen, please use the red X key.
