CCV PAX A920 - Setting up your WLAN connection

In this tutorial, we will show you how to connect your CCV PAX A920 card reader to a WLAN network.

SIM cards are optional.

The card reader is compatible with 2.4 GHz and 5 GHz WLANnetworks as well as LTE functionality in the mobile network.

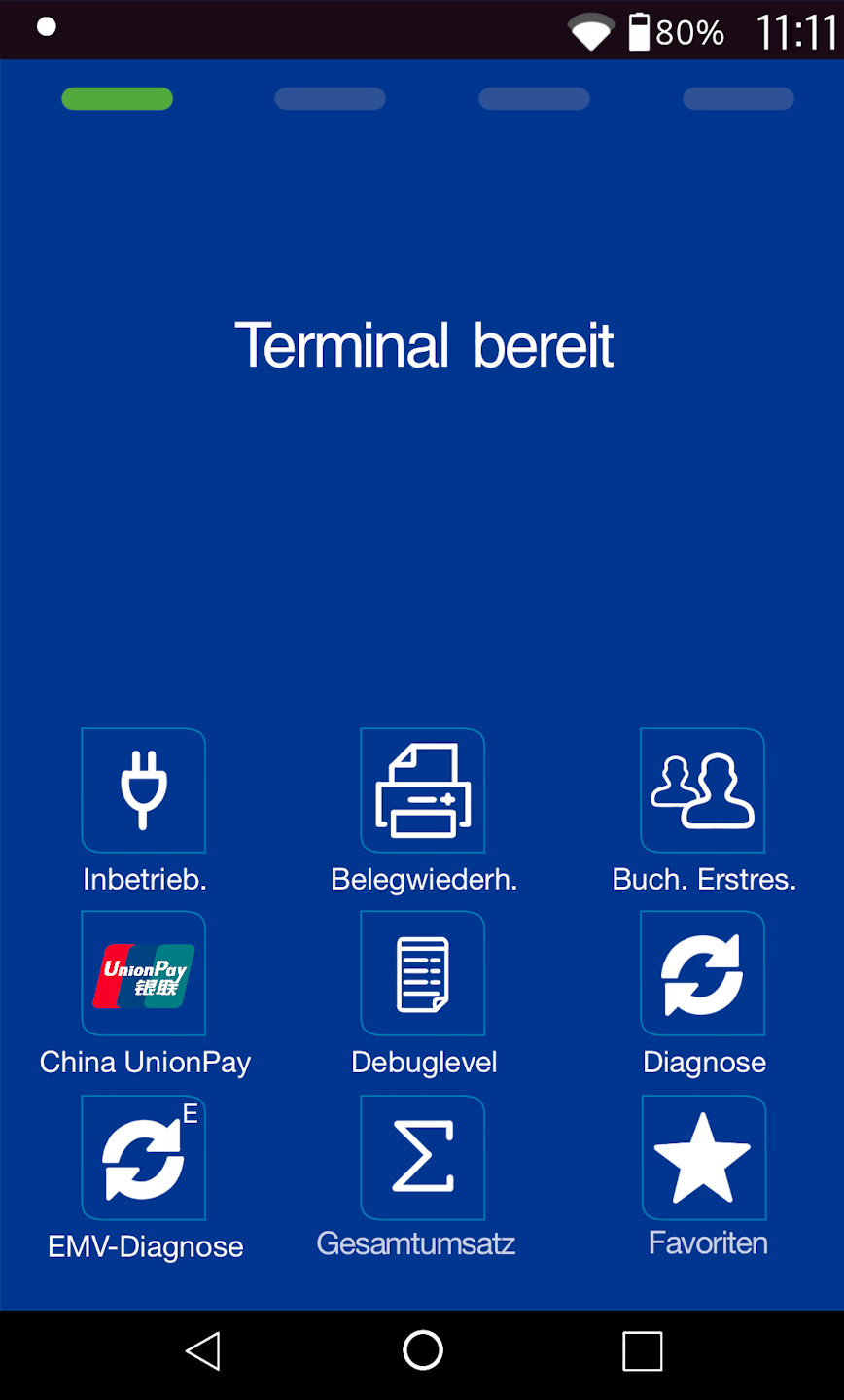

Output display

You can see your output display.

WLAN

Setting up your WLAN connection

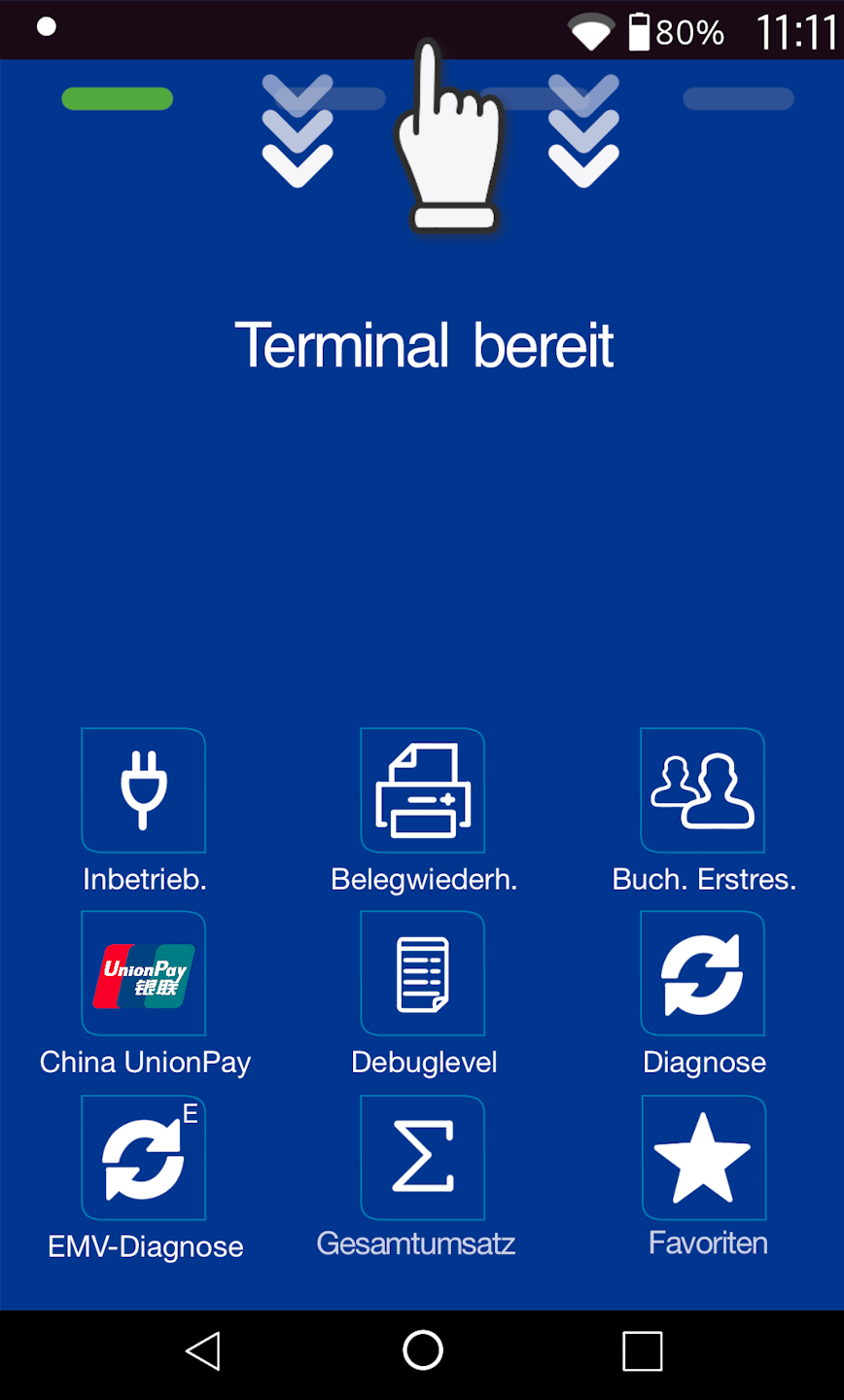

Please swipe down from the top edge of the display to access the Android settings.

Setting up your WLAN connection

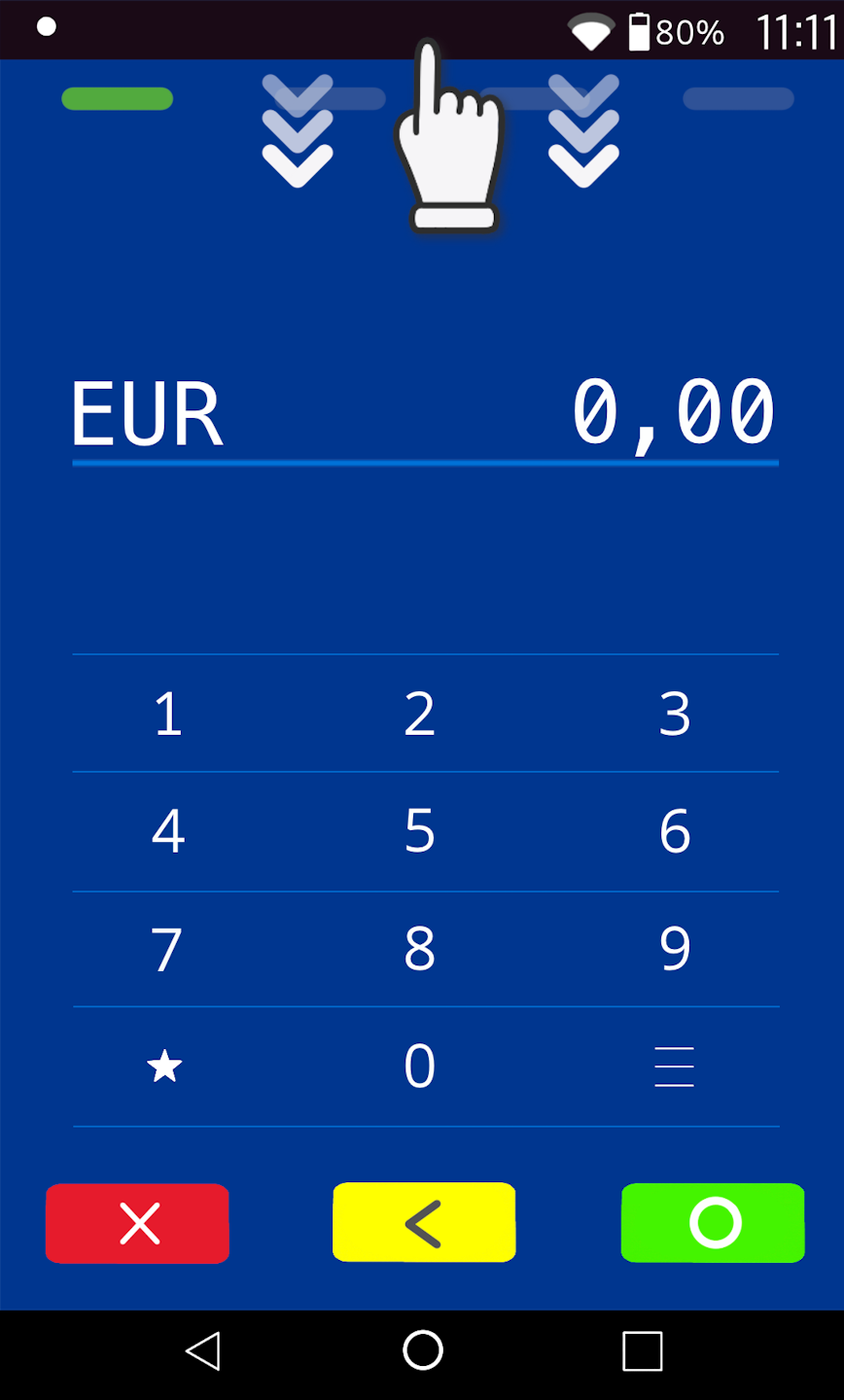

Please swipe down from the top edge of the display to access the Android settings.

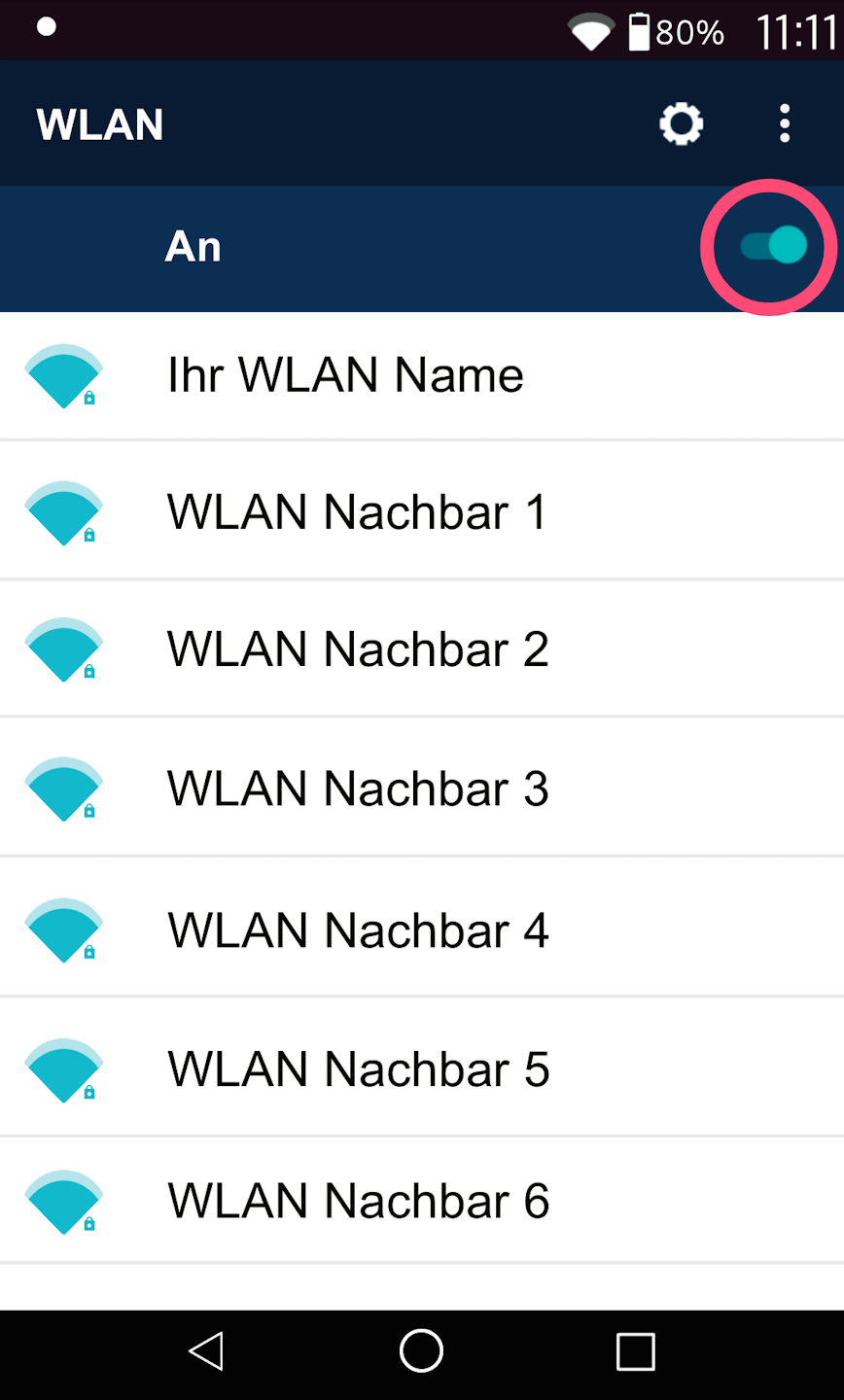

Selecting a WLAN network

In the first step, please activate the WLAN function.

Activate by swiping.

All available WLAN networks in your area will now appear.

Please select the WLAN network you want to connect your card reader to.

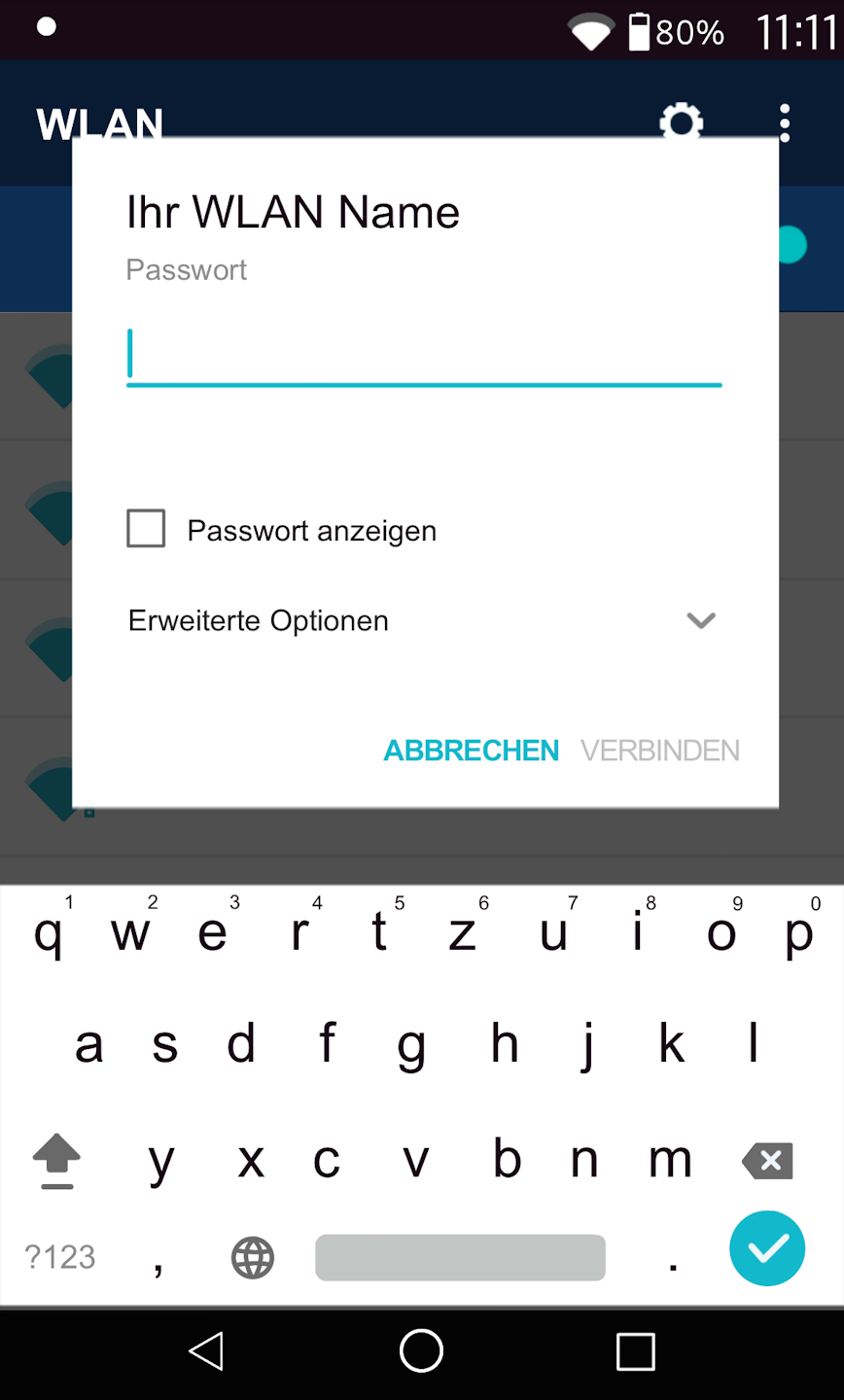

Entering the WLAN password

At this point, you will be prompted to enter the WLAN password.

Please pay attention to uppercase and lowercase letters in your password.

You can check the "Show password" box to prevent possible typing errors.

Please confirm the password entry by pressing "Connect."

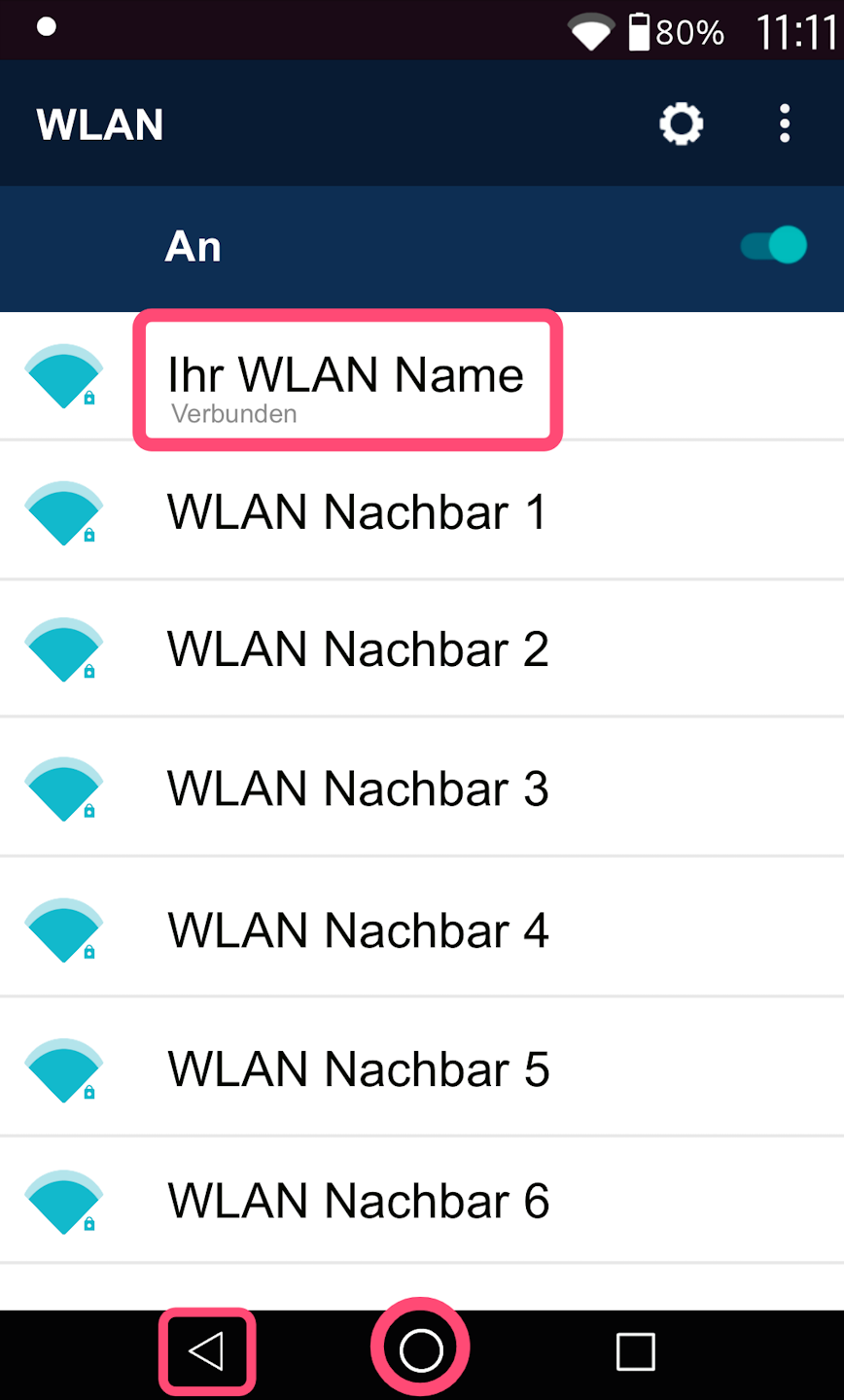

Completion

As soon as "Connected" appears under your Wi-Fi network name, your card reader has an active internet connection.

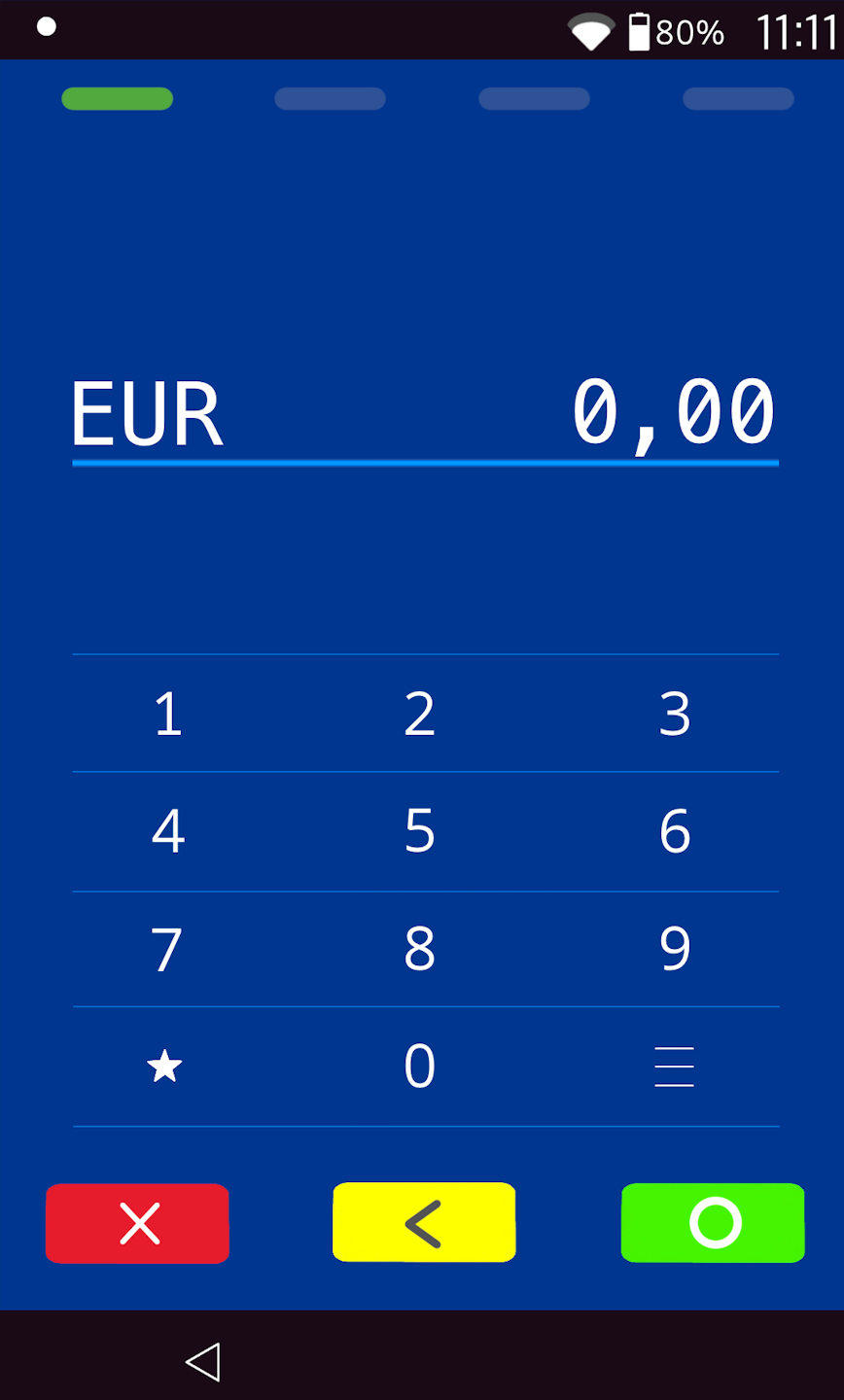

To access the payment entry screen, please tap the small circle in the center at the bottom. Alternatively, you can use the left arrow.

If you have successfully set up the connection, please check its functionality using our article Check Connection.

You can also find an informative article about the connection symbols on your card reader The Connection Symbols
