Setting the Date and Time

During the time change in March and October, it may be necessary to manually adjust the date and time.

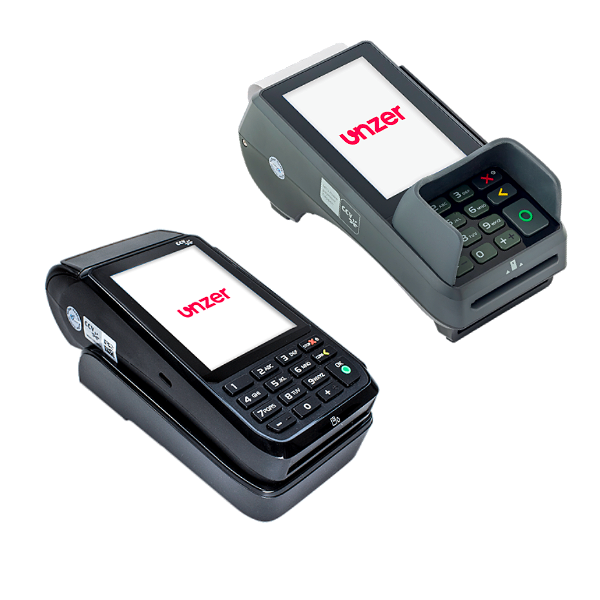

In this tutorial, we will show you how to set the time on your CCV Mobile Premium or Base Next card reader.

Start Display

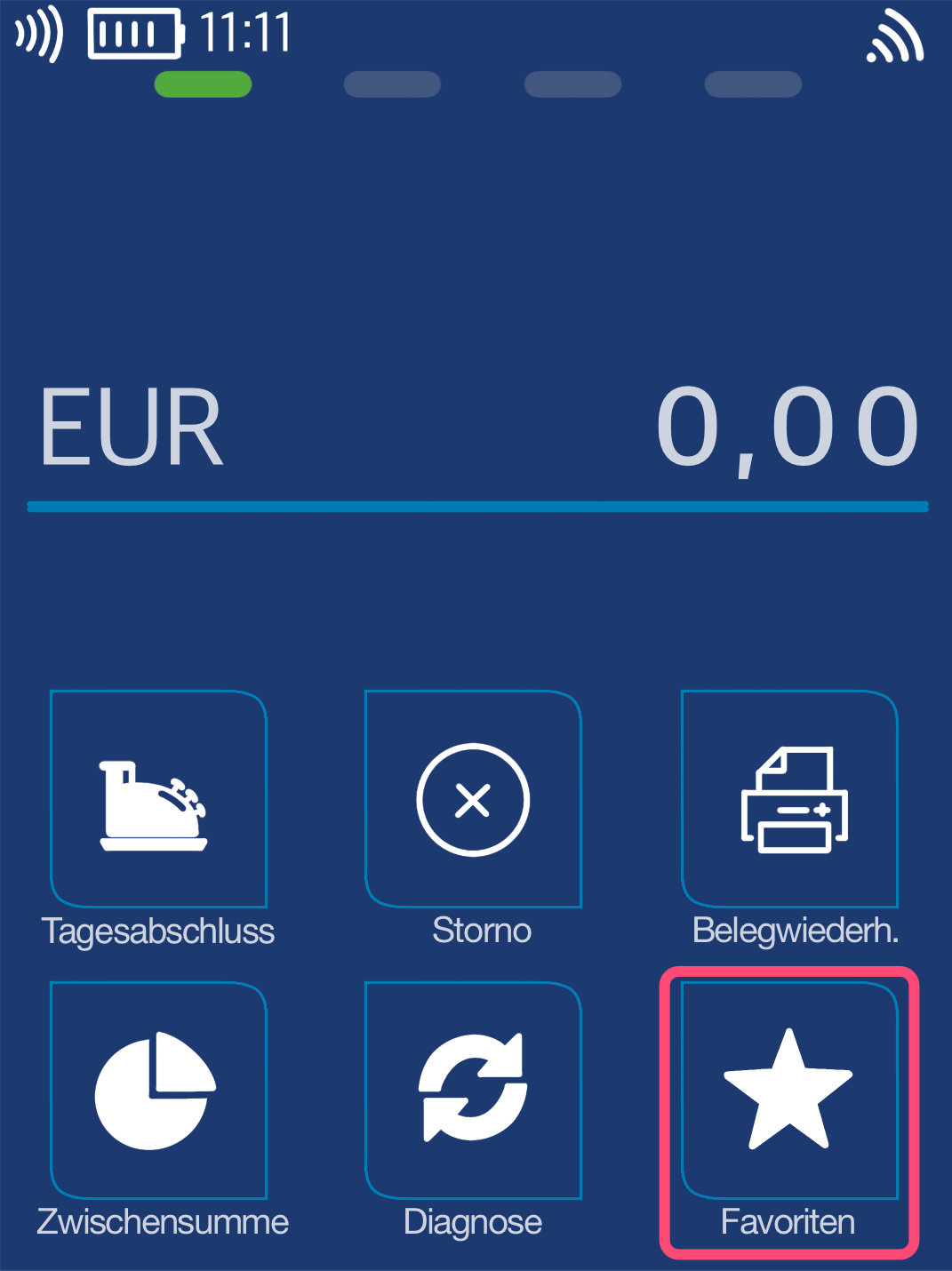

You will see your start display. Please select the Favorites key.

Select by tapping the touchscreen.

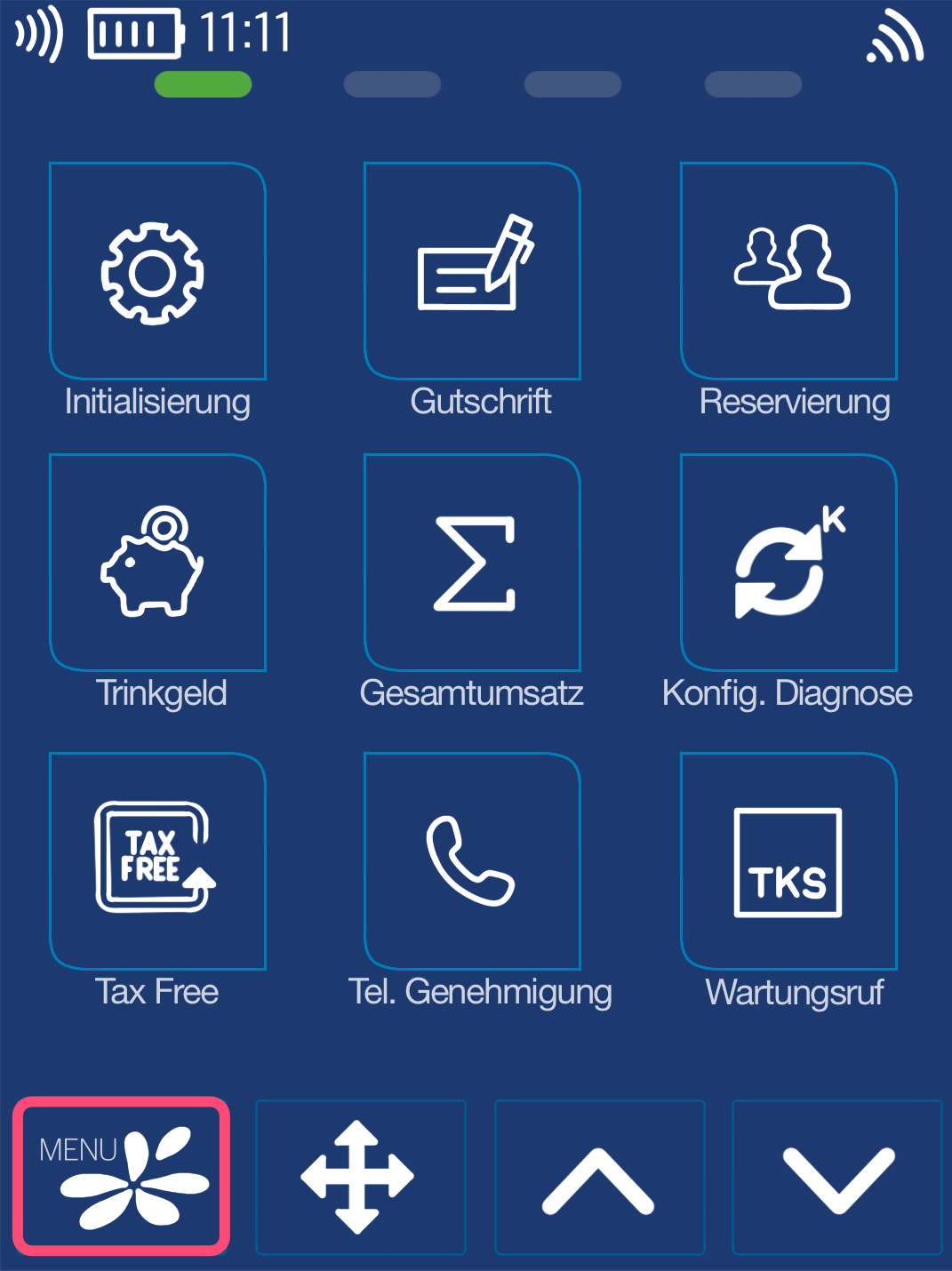

Fig. 2 - Now please select the Menu key.

PIN Entry

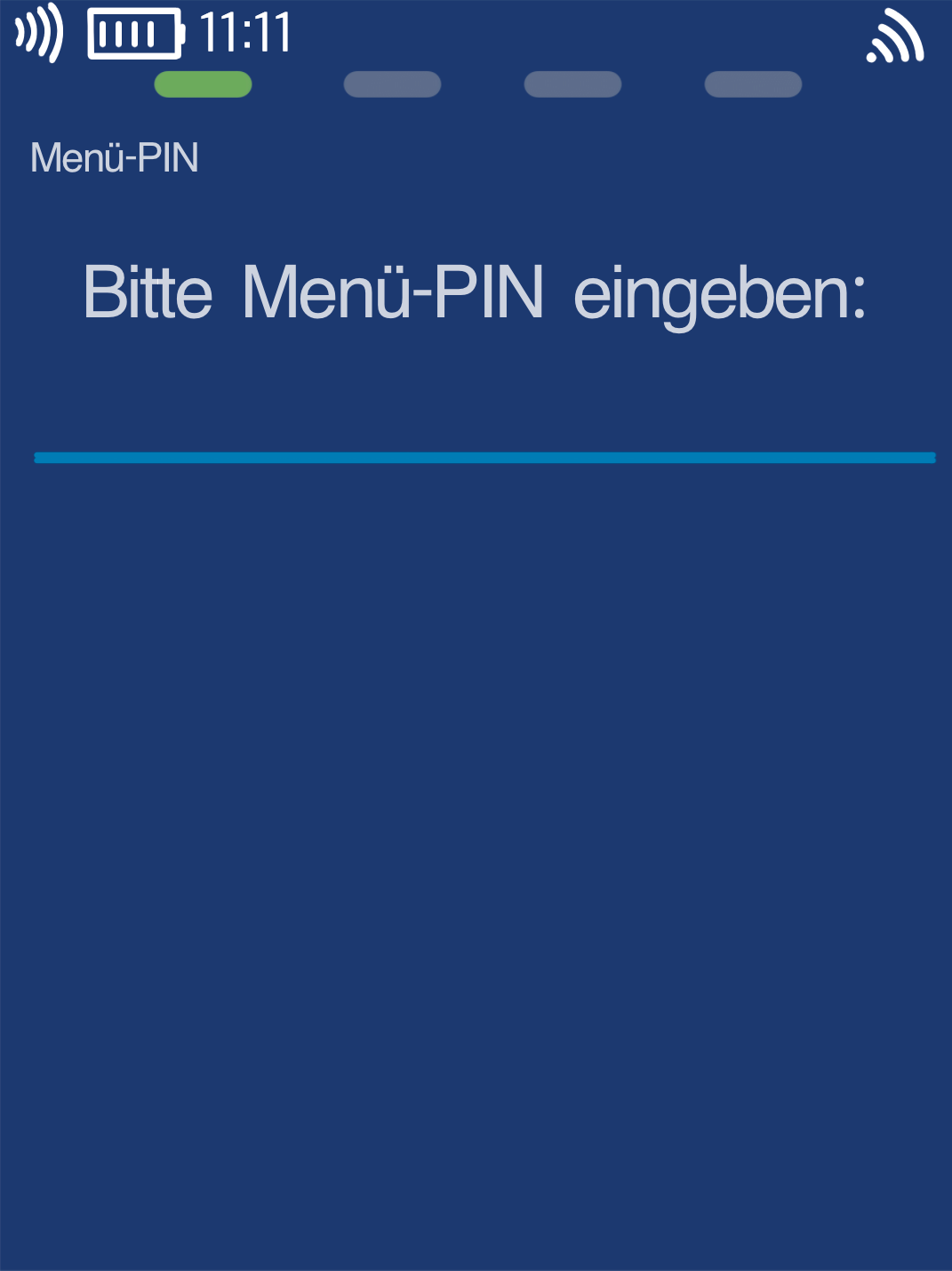

Please now enter your merchant PIN.

You can find the terminal ID on your merchant receipts or on the end-of-day report.

Terminal IDs starting with 61xxxxxx: 111111

Terminal IDs starting with 68xxxxxx: 111111

Terminal IDs starting with 526xxxxx: 0123

Please confirm your entry by pressing the green OK button.

Menu Structure

Please use the down arrow key to navigate to the menu item Administration (Fig. 2)

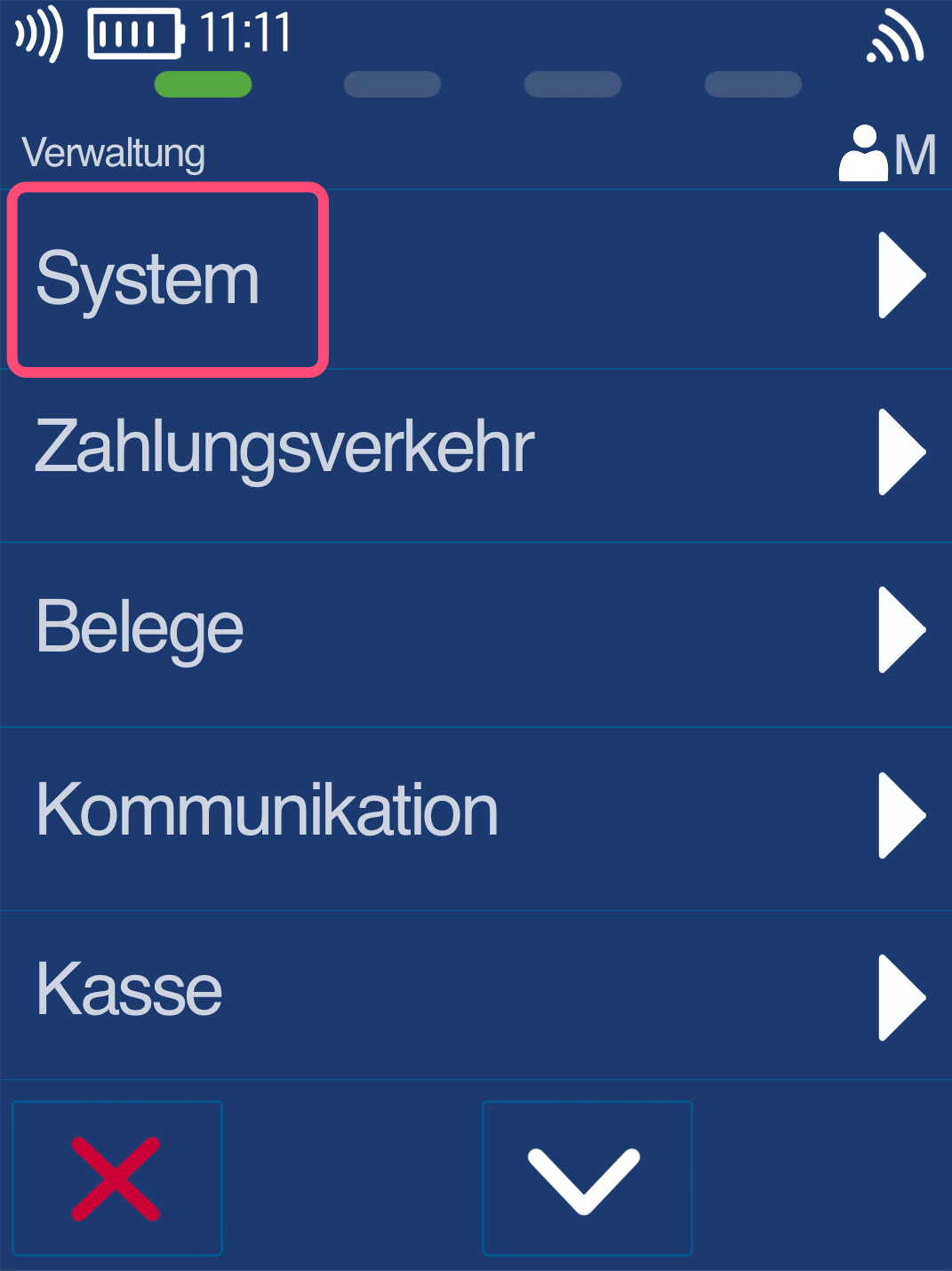

Fig. 3 - Please select the menu item System here.

Time Settings

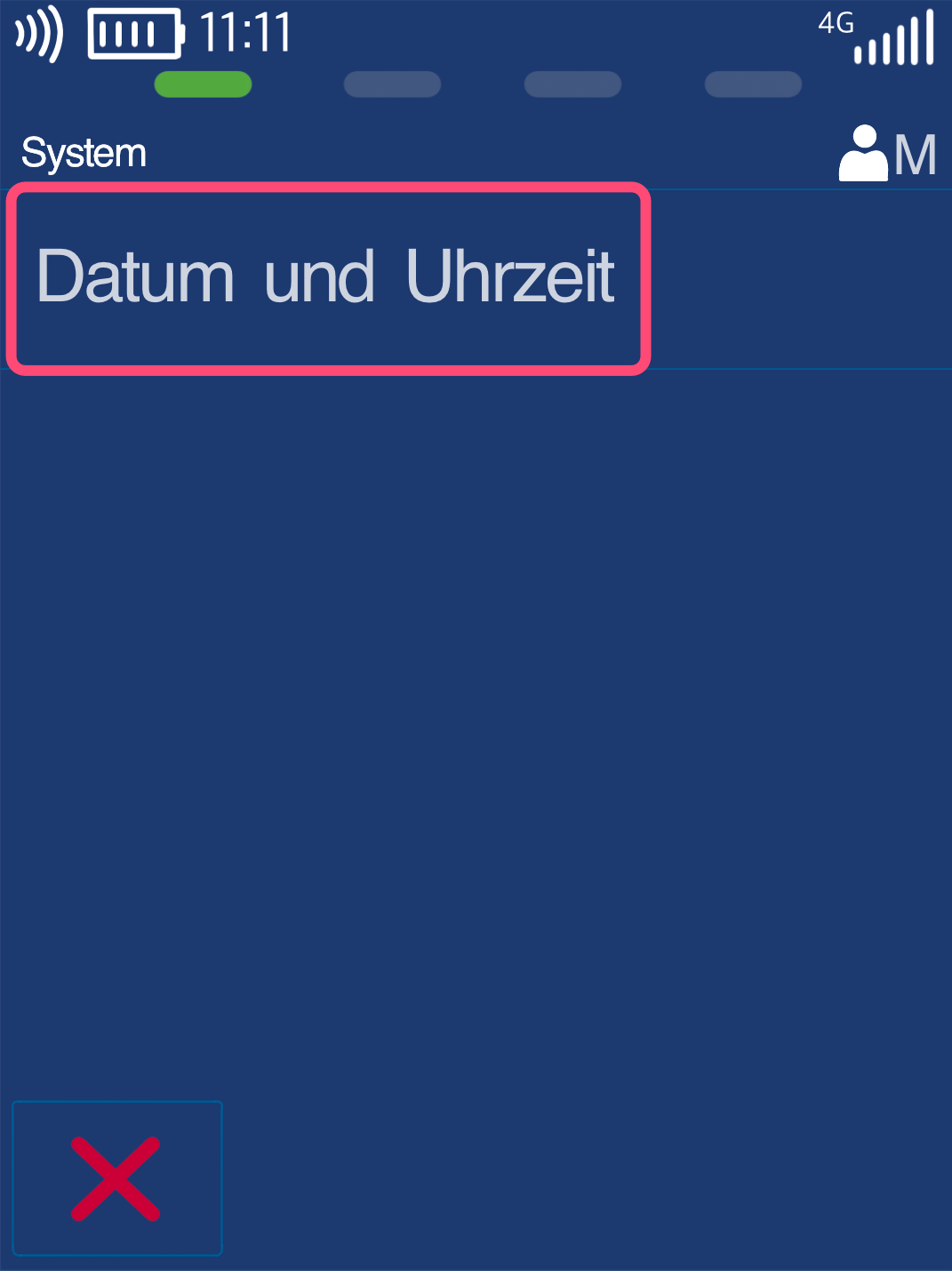

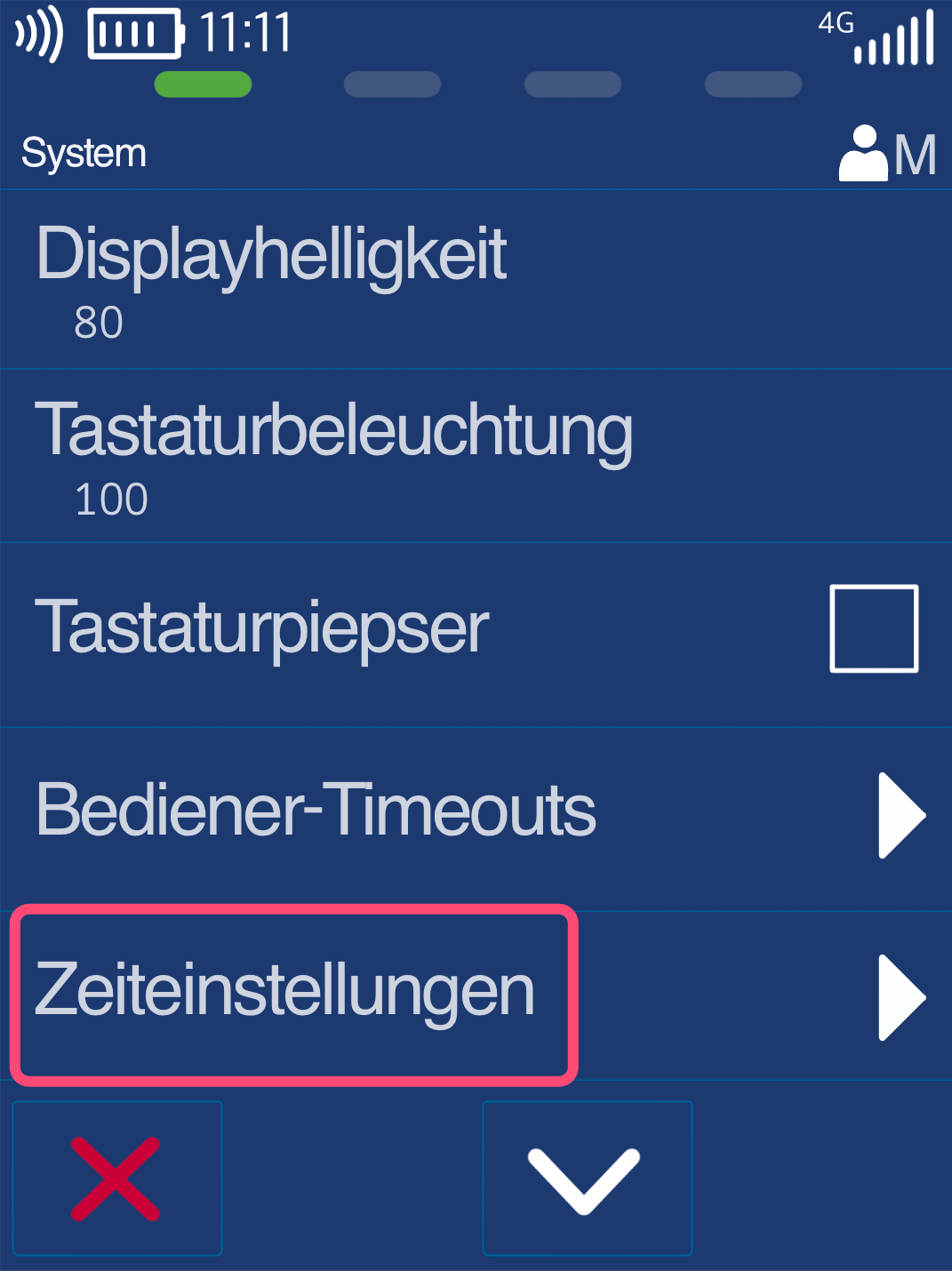

Please navigate to the menu item Time Settings and then select Date and Time (Fig. 2).

Entering Date and Time

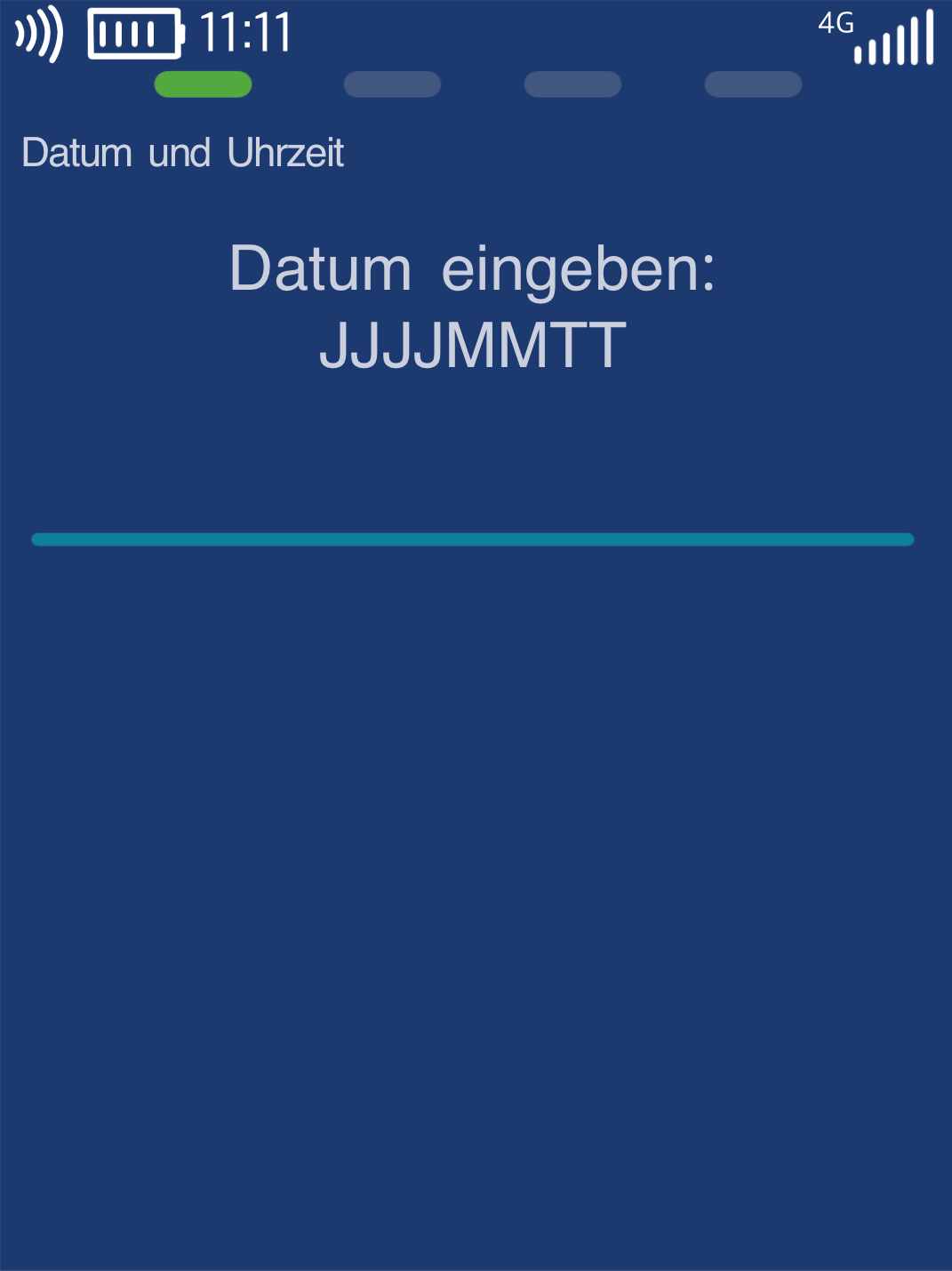

Fig. 1 - Enter the date and confirm with the green OK key

Example: 20240130

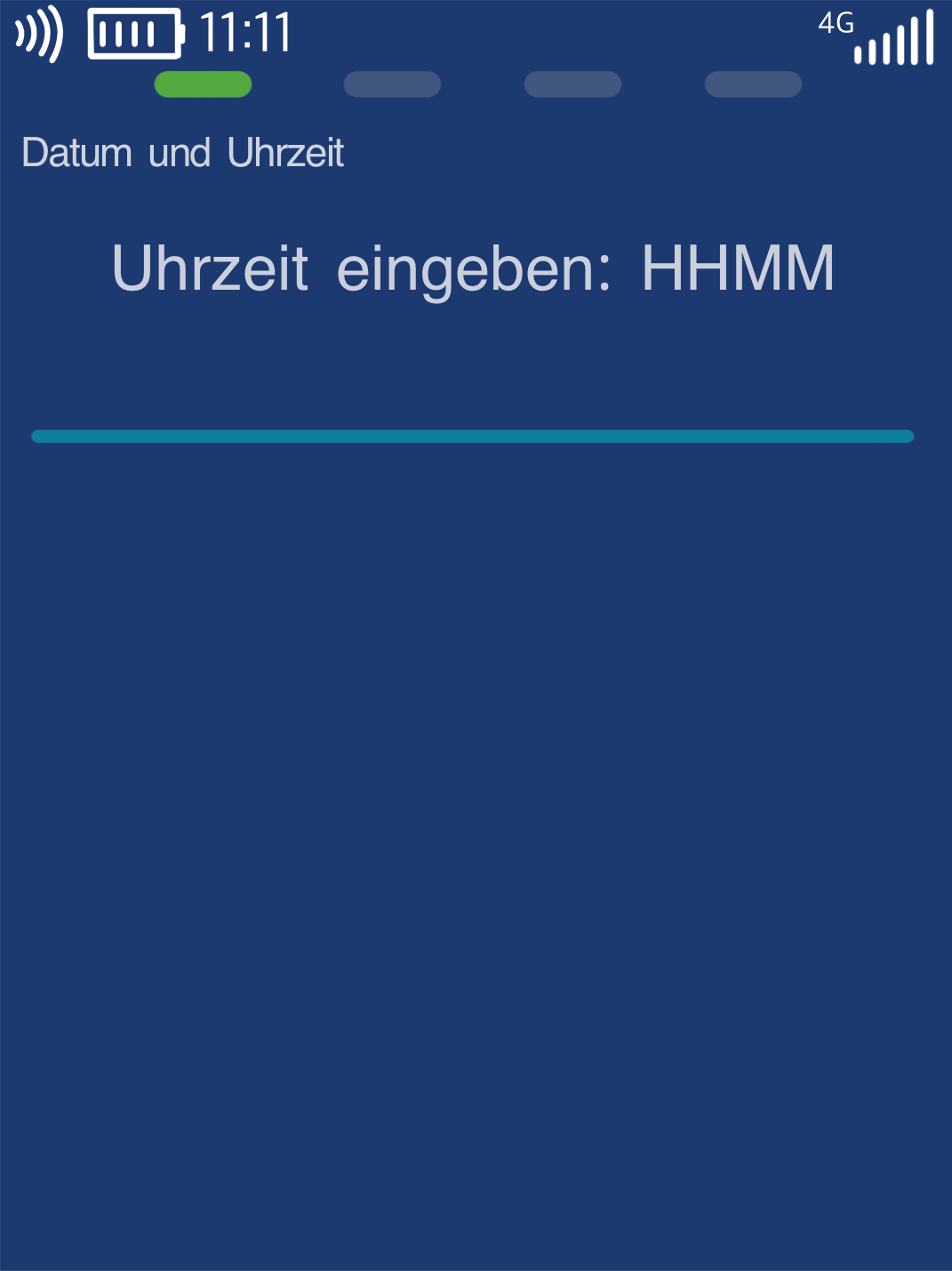

Fig. 2 - Enter the time and confirm with the green OK key

Example: 1030

Once you have entered the date and time, please press the red Stop key to return to your start display.

The date and time setting is now complete.
