CCV - Setting Up Your POS Integration

In this tutorial, we will show you how to set up your CCV Mobile Premium & CCV Base Next card reader for integration with your POS system.

During the initial setup of your CCV Mobile Premium & CCV Base Next card reader, the POS interfaces ZVT and OPI are already activated by default. We recommend not changing these ports afterward.

The following POS ports are predefined:

TIDs starting with 68xxxxxx

ZVT – Port 20011 (TCP/IP)

OPI – Port 20002 (TCP/IP)

TIDs starting with 526xxxxx

ZVT – Port 20007 (TCP/IP)

OPI – Port 20002 (TCP/IP)

Please inform your POS provider which port will be used so that your POS system can send the transaction amount to the card reader.

Start Display

Please select your start display:

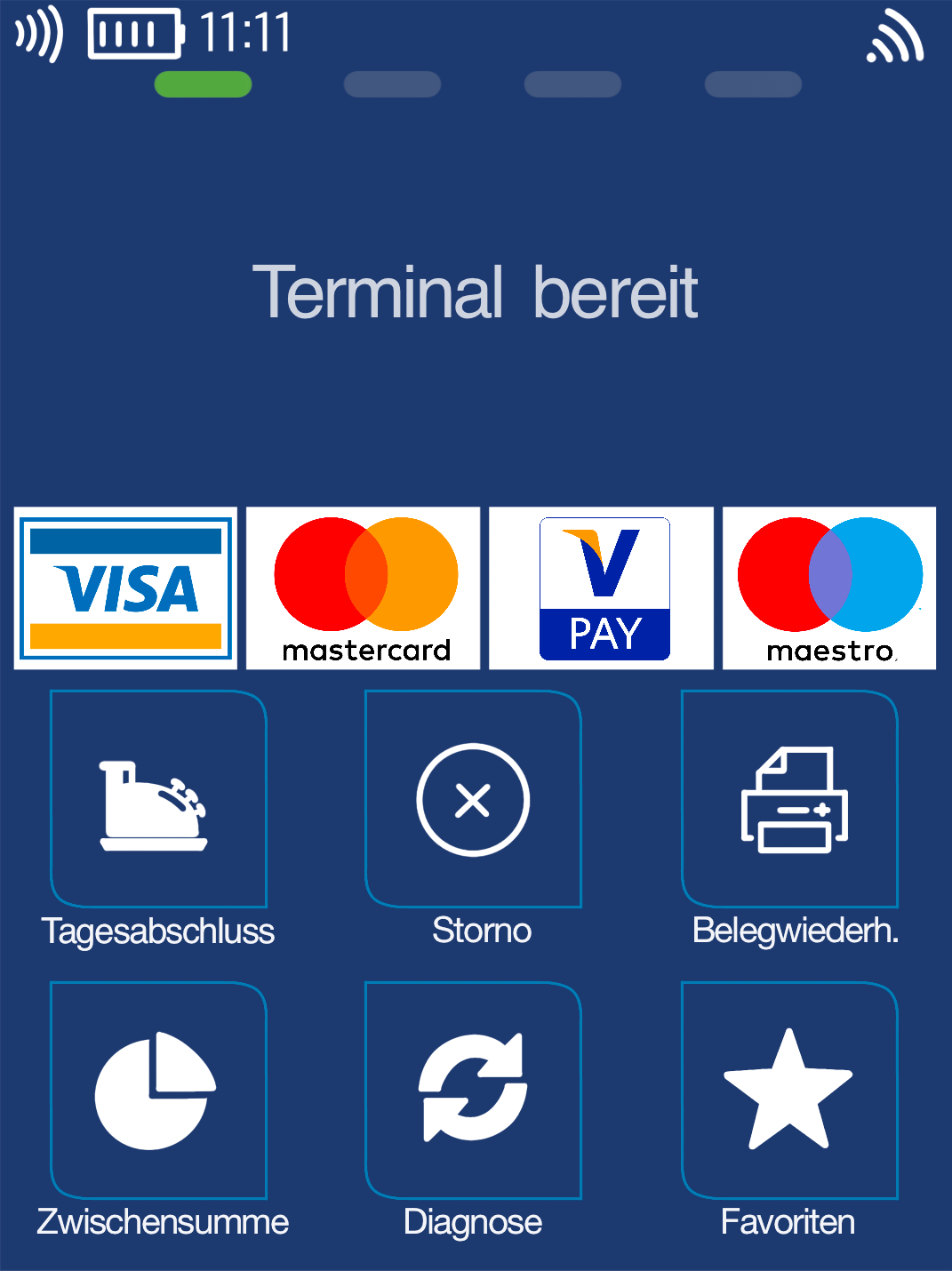

I see Fig. 1.

Favorites

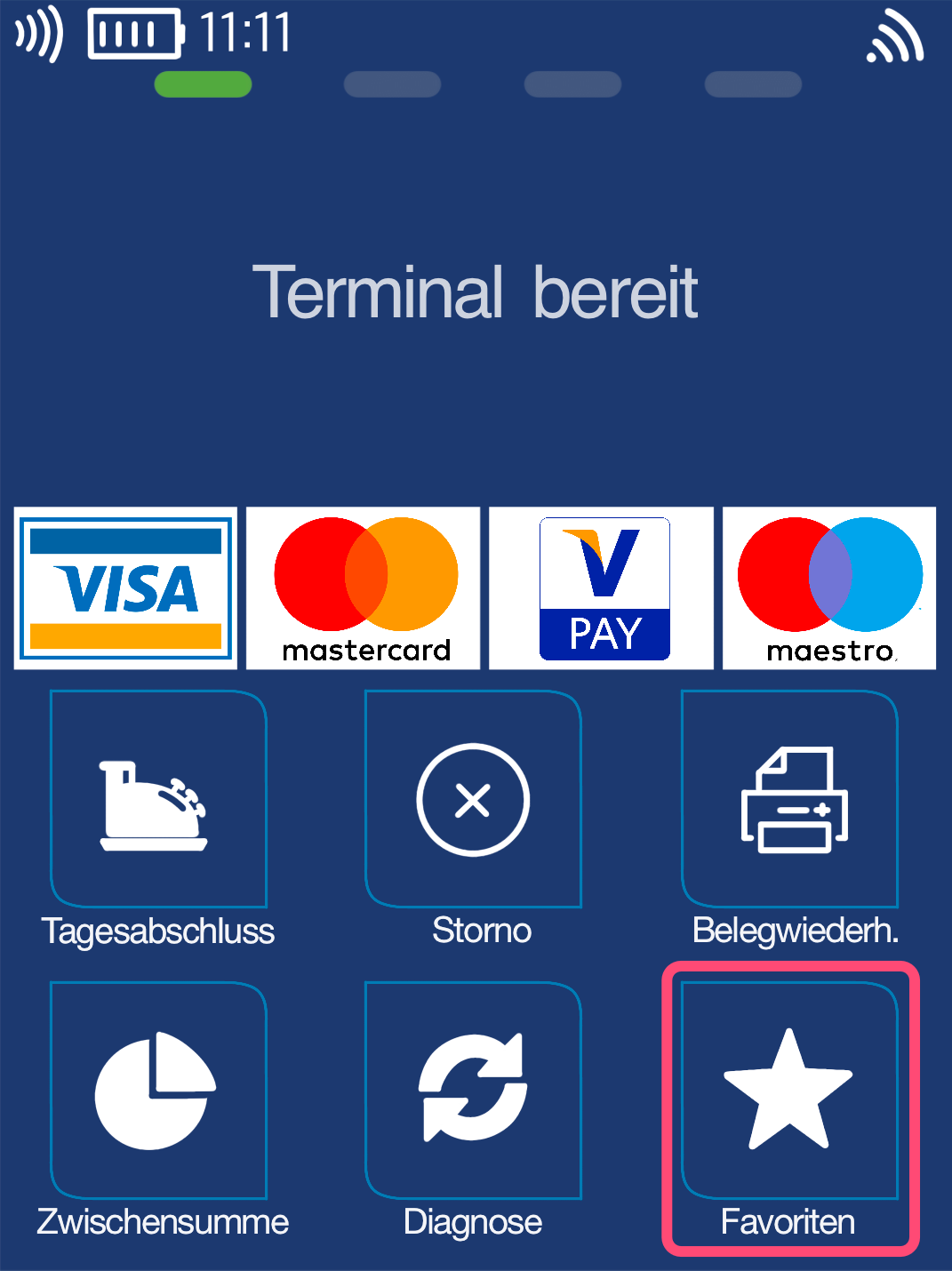

As shown in Fig. 1, please select the Favorites button.

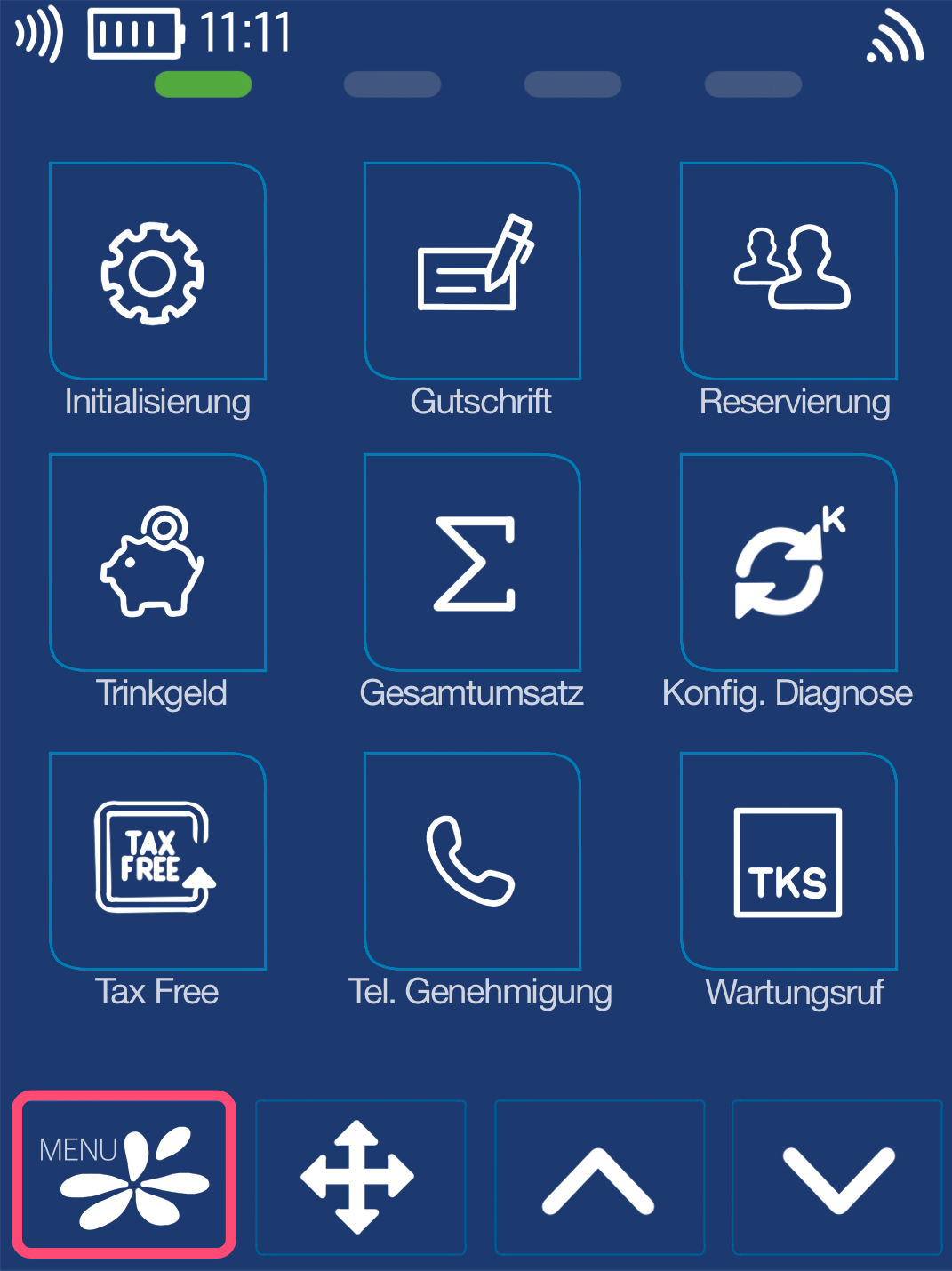

In Fig. 2, select the menu flower icon at the bottom left.

Select by tapping.

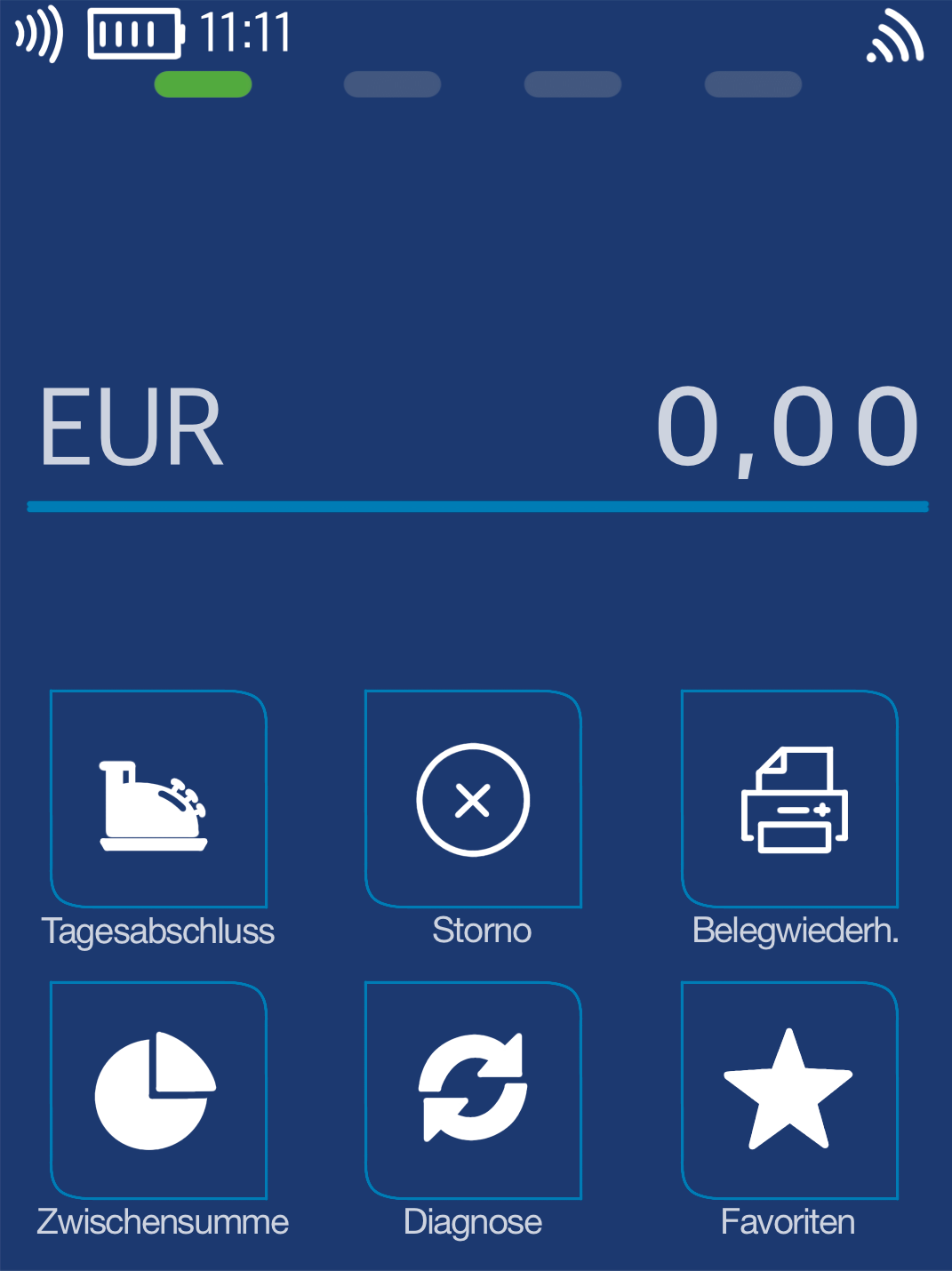

I see Fig. 2.

Favorites

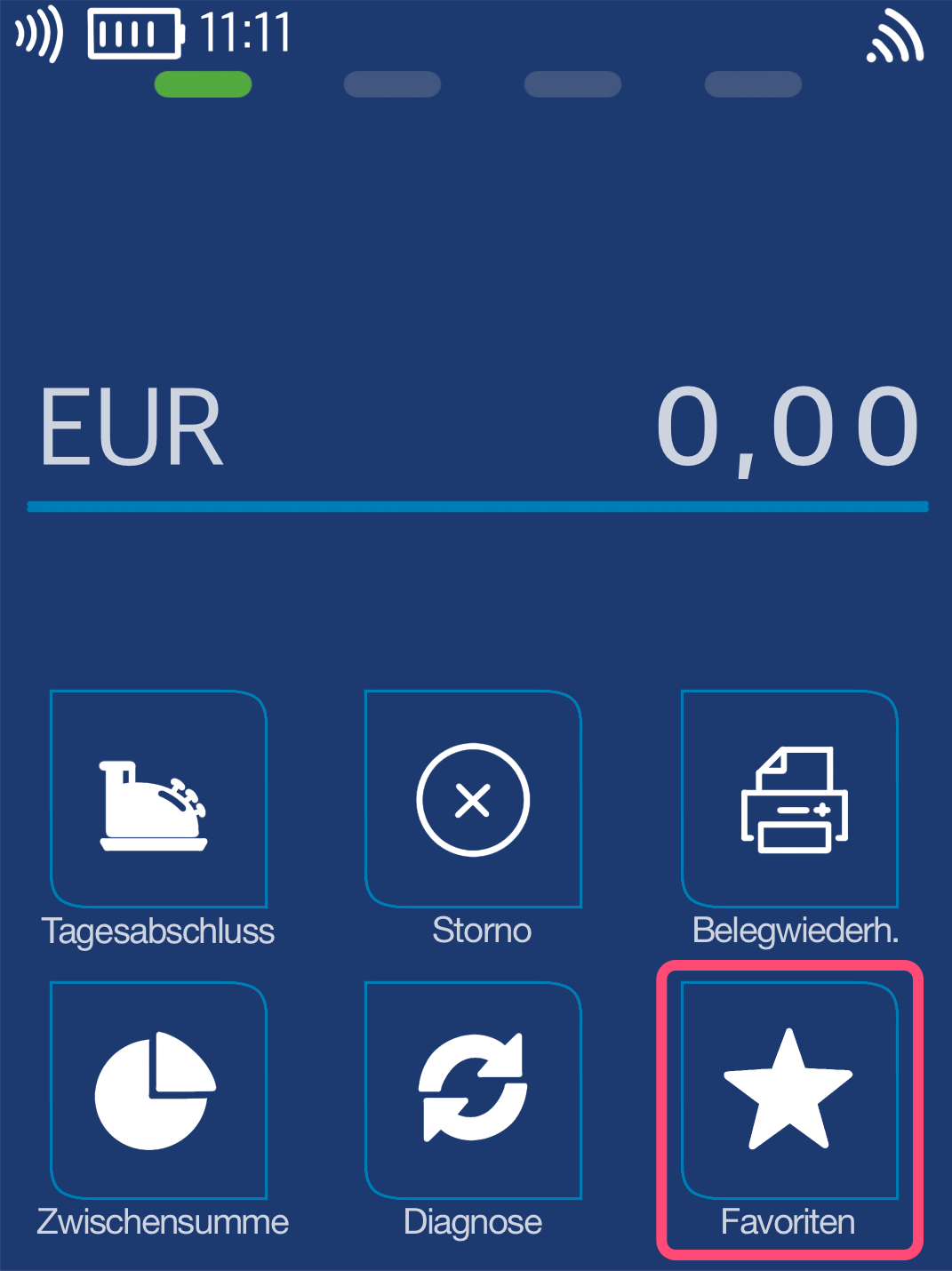

As shown in Fig. 1, please select the Favorites button.

In Fig. 2, select the menu flower icon at the bottom left.

Select by tapping.

PIN Entry

Please now enter your merchant PIN.

You can find the Terminal ID on your merchant receipts or on the end-of-day report.

Terminal IDs starting with 61xxxxxx: 111111
Terminal IDs starting with 68xxxxxx: 111111
Terminal IDs starting with 526xxxxx: 0123

Please confirm the entry by pressing the green OK button.

Main Menu

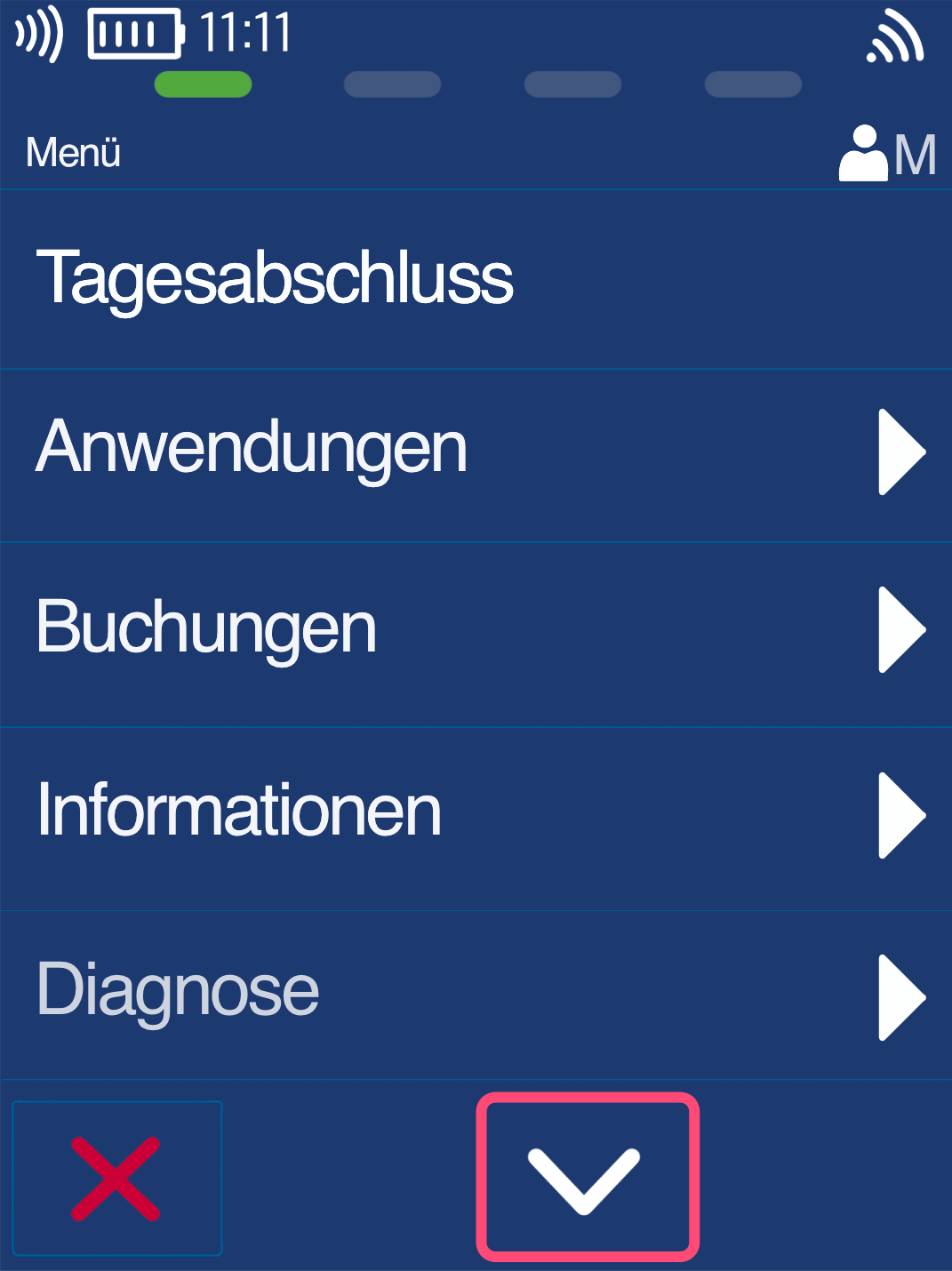

In the main menu, please use the down arrow (Fig. 1) to navigate to the Administration menu item (Fig. 2).

Administration

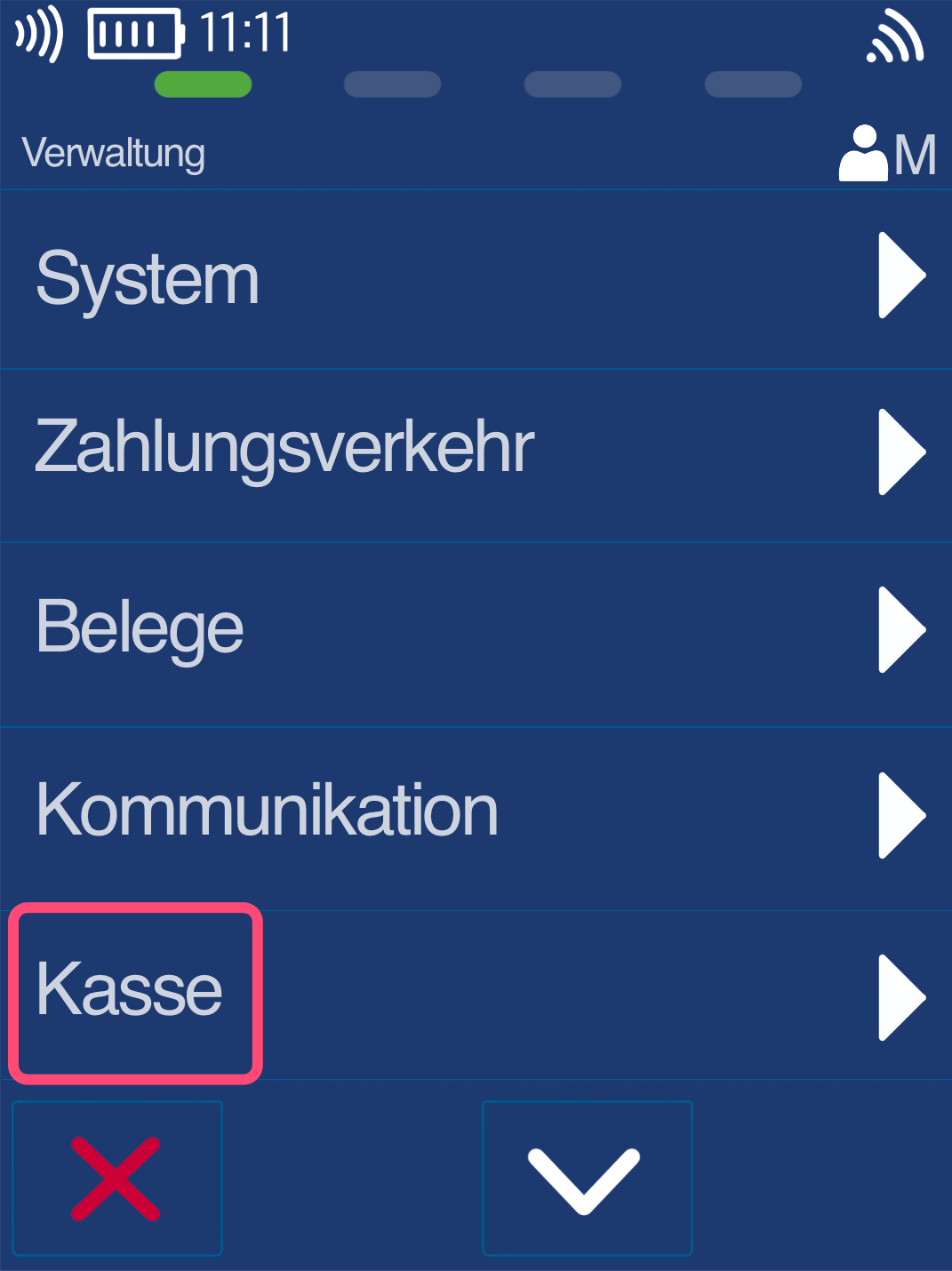

Now please select the menu item POS.

POS Settings

Please follow the steps shown in Figures 1–3.

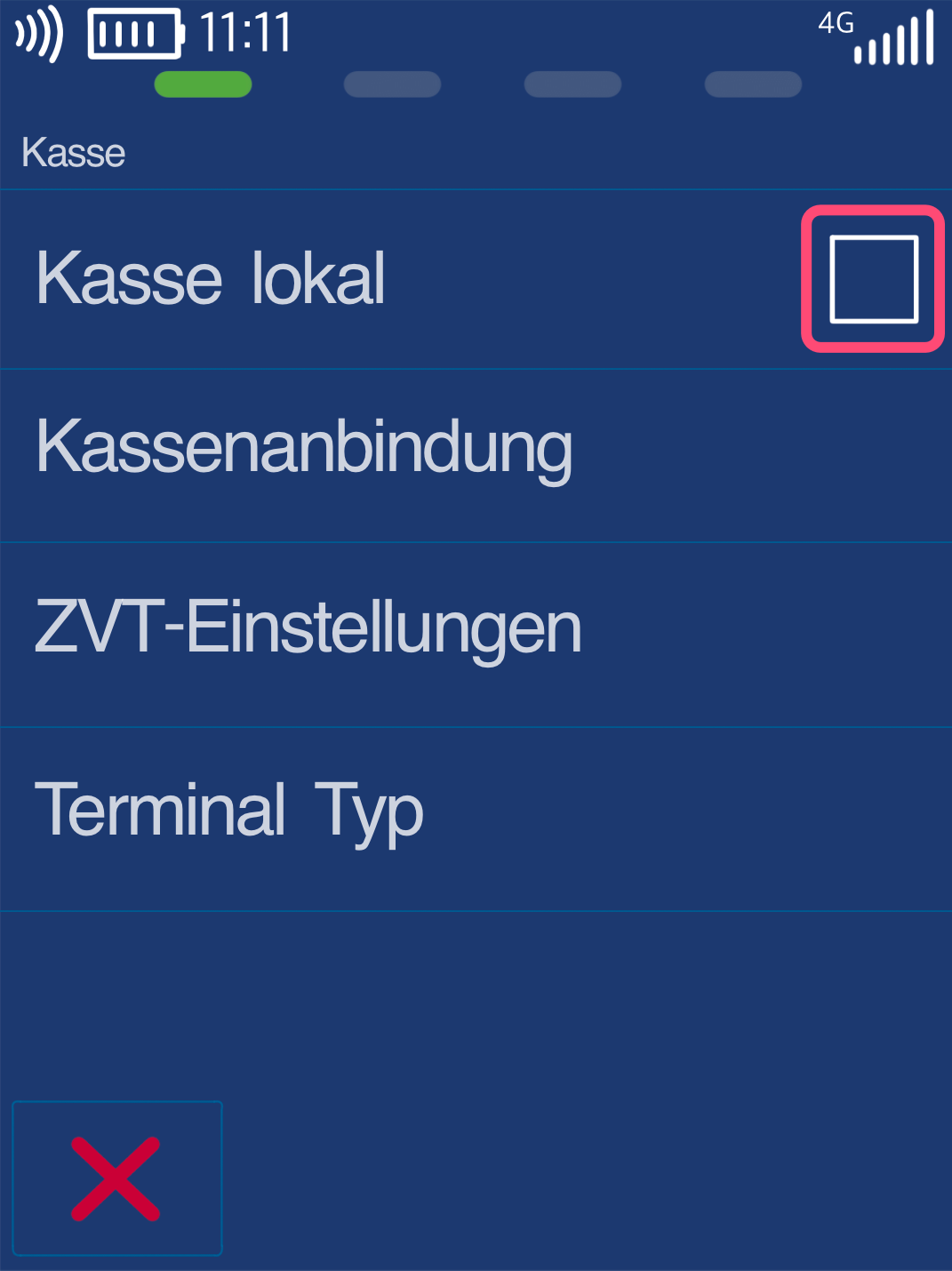

Fig. 1 – Disable “Local POS” by tapping.

By disabling the menu item “Local POS,” manual amount entry will no longer be possible. The display will only show “Terminal ready.”

If you still want to allow manual amount entry, please leave “Local POS” enabled.

Fig. 2 – Enable Receipt Control

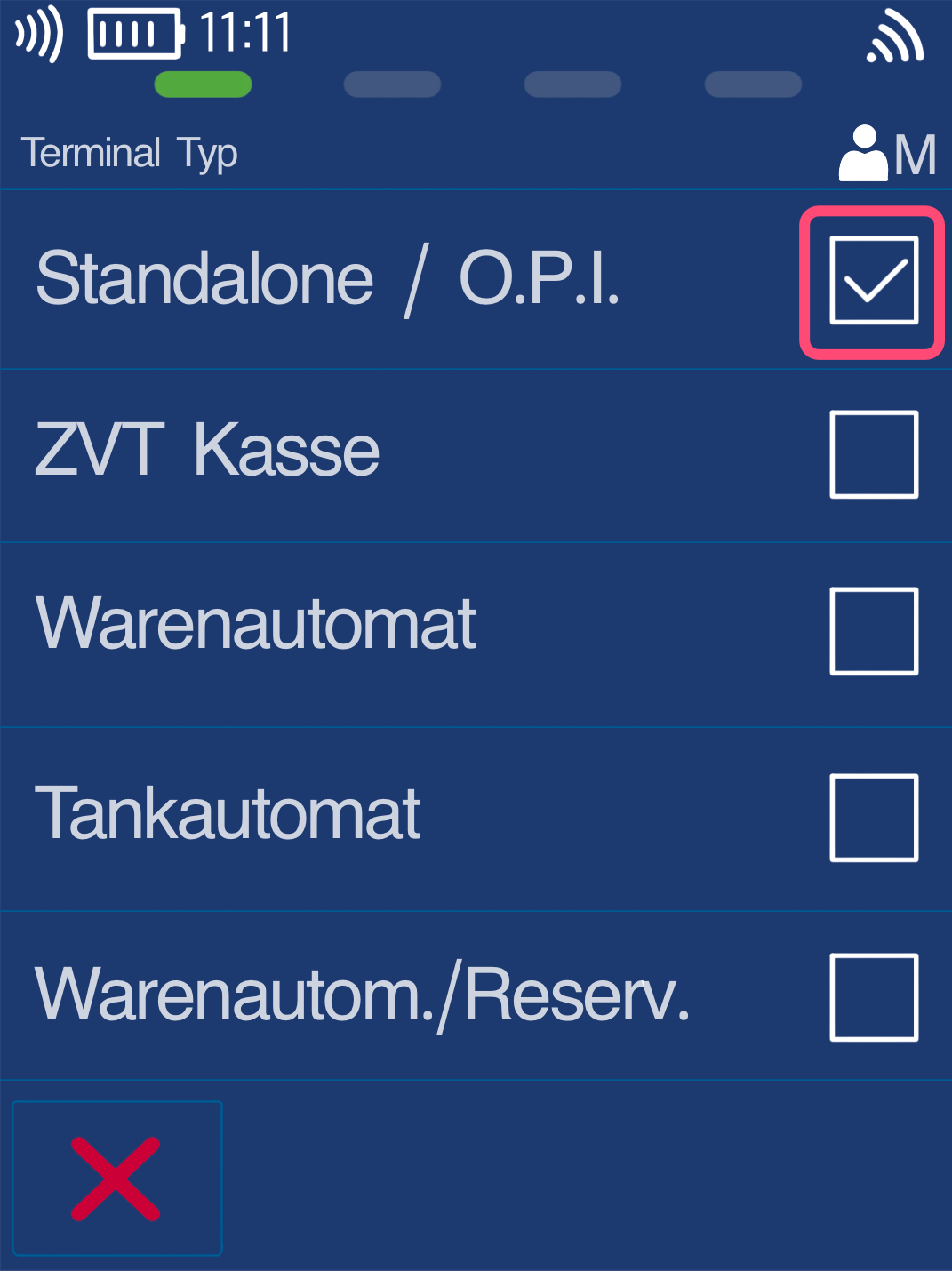

Fig. 3 – Enable Standalone / O.P.I

To go back one step, please use the yellow correction button.

Once all settings are configured, tap the red Stop button to return to your start display.

Your POS integration setup is now complete.
