CCV - Viewing IP Address Data

In this step-by-step guide, we will show you how to view the assigned IP address on your card reader.

The card reader must be connected to either a WLAN or LAN network.

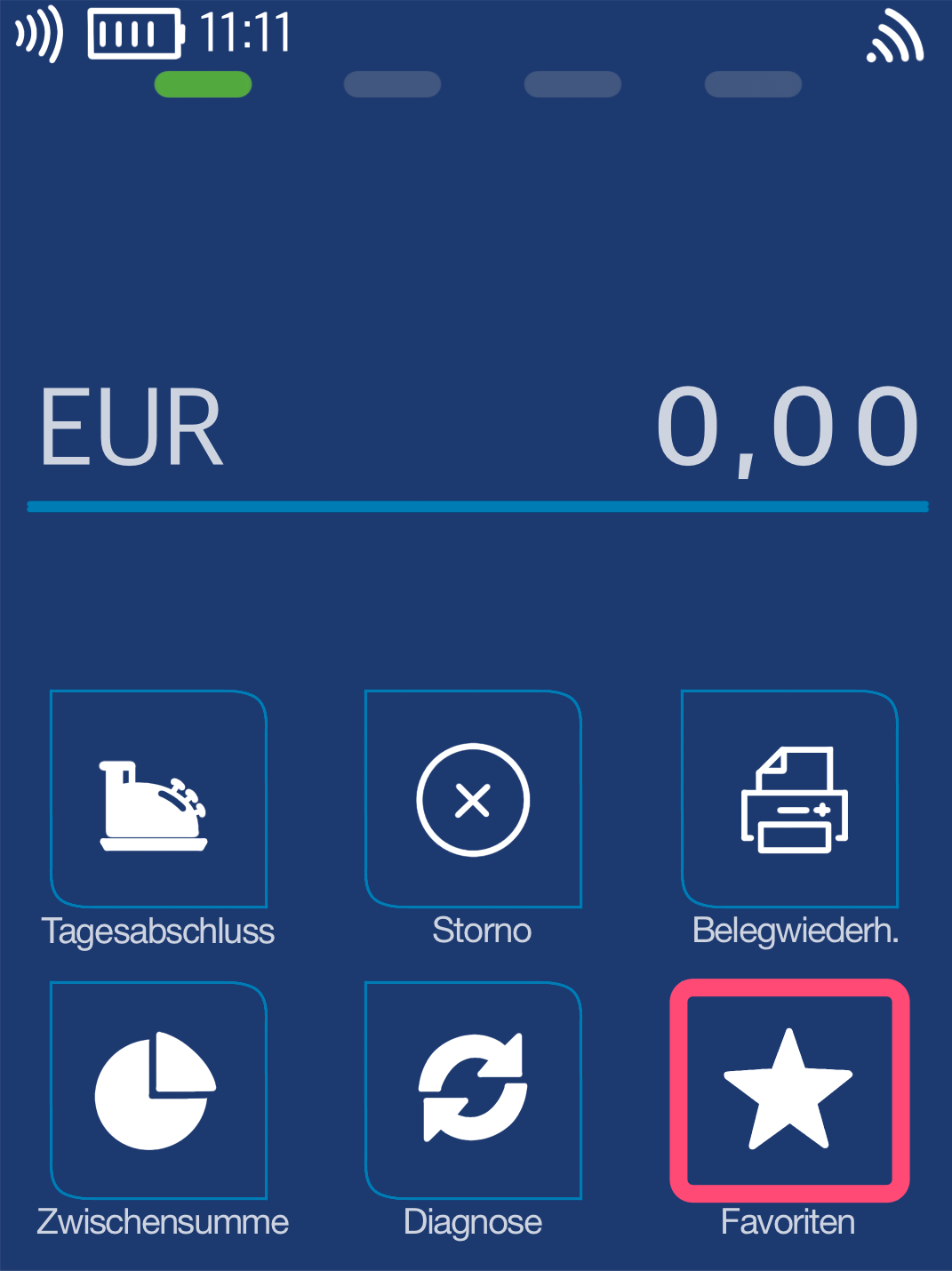

Favorites Button

You will see your main display. Please select the Favorites button.

Select by tapping.

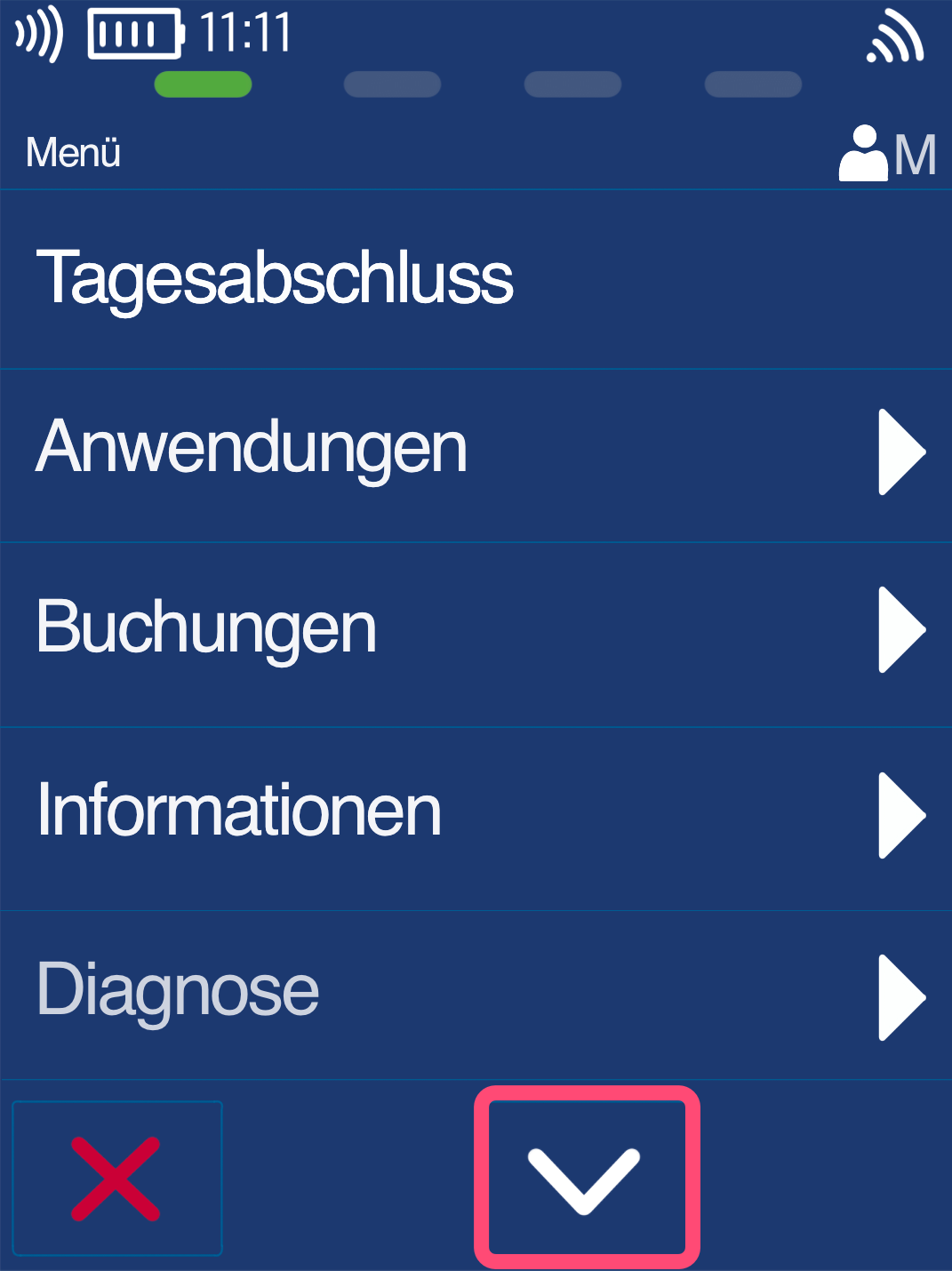

Menu Button

Now please select the Menu button.

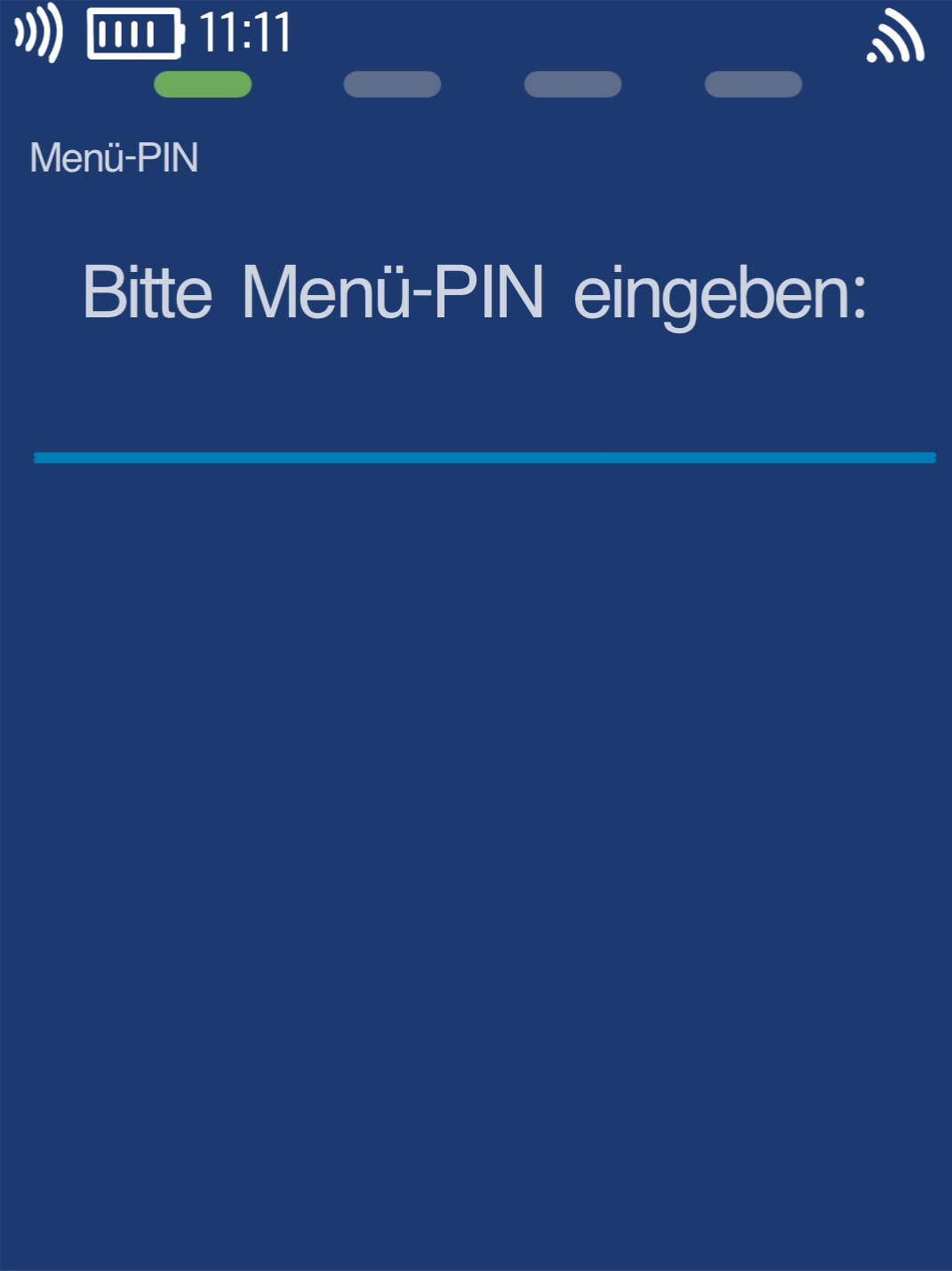

Menu PIN

Please now enter your merchant PIN.

You can find the Terminal ID on your merchant receipts or on the end-of-day report.

Terminal IDs starting with 61xxxxxx: 111111

Terminal IDs starting with 68xxxxxx: 111111

Terminal IDs starting with 526xxxxx: 0123

Please confirm the entry by pressing the green OK button.

Main Menu

Please use the down arrow key to access the rest of the menu (Fig. 1).

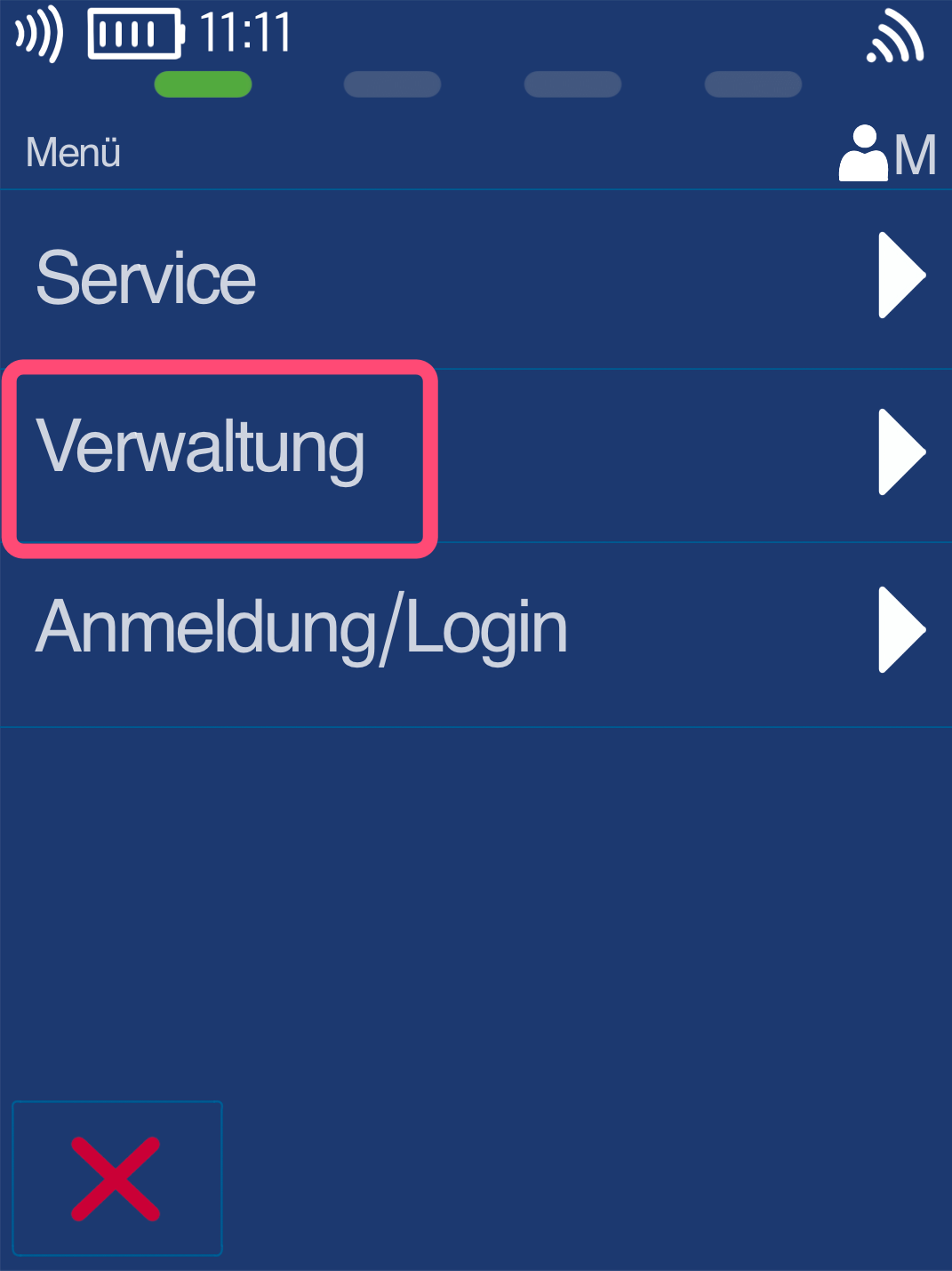

In Fig. 2, tap the menu item Administration.

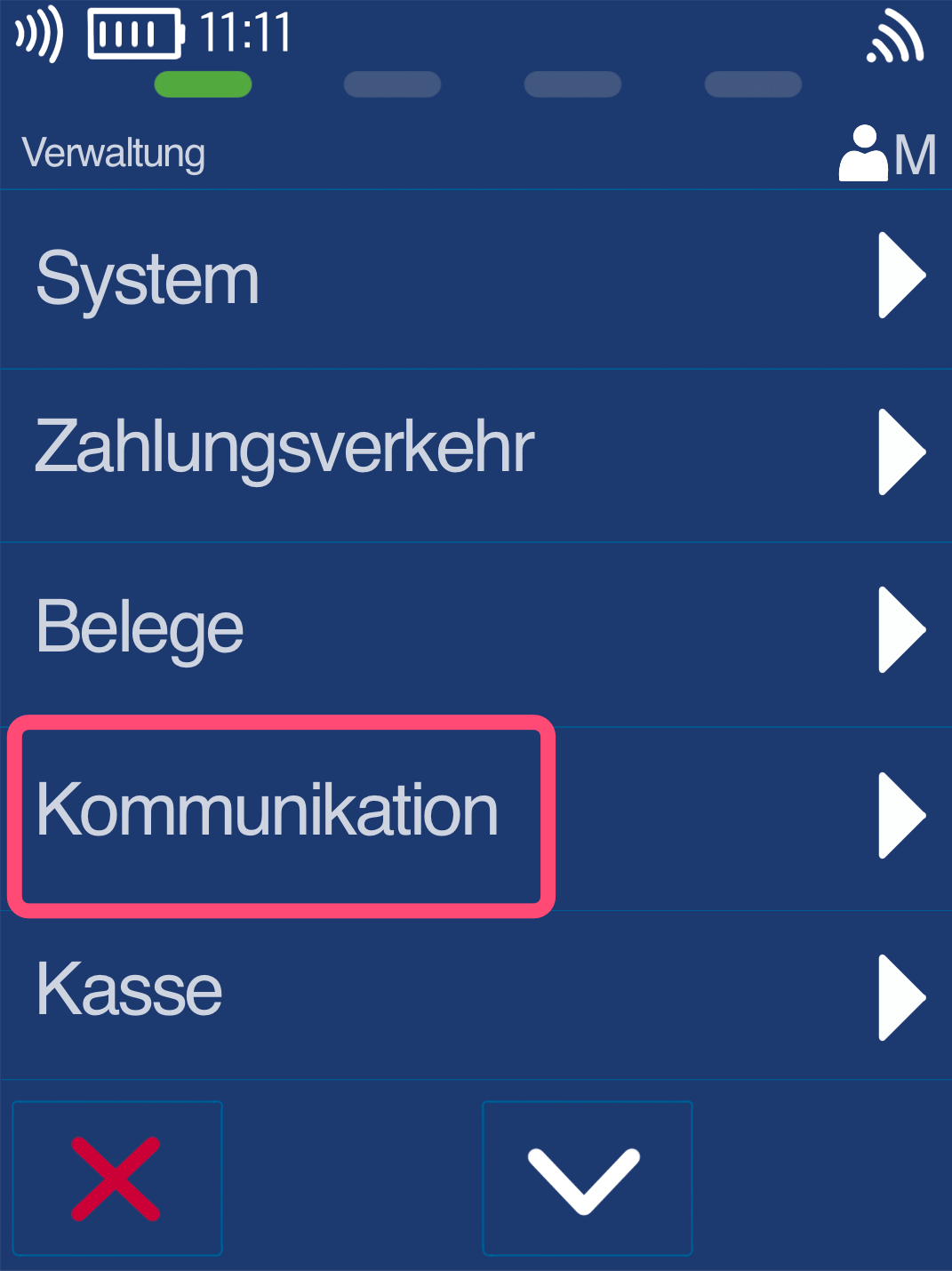

Administration

In the Administration menu, you will find the Communication button.

Please select it.

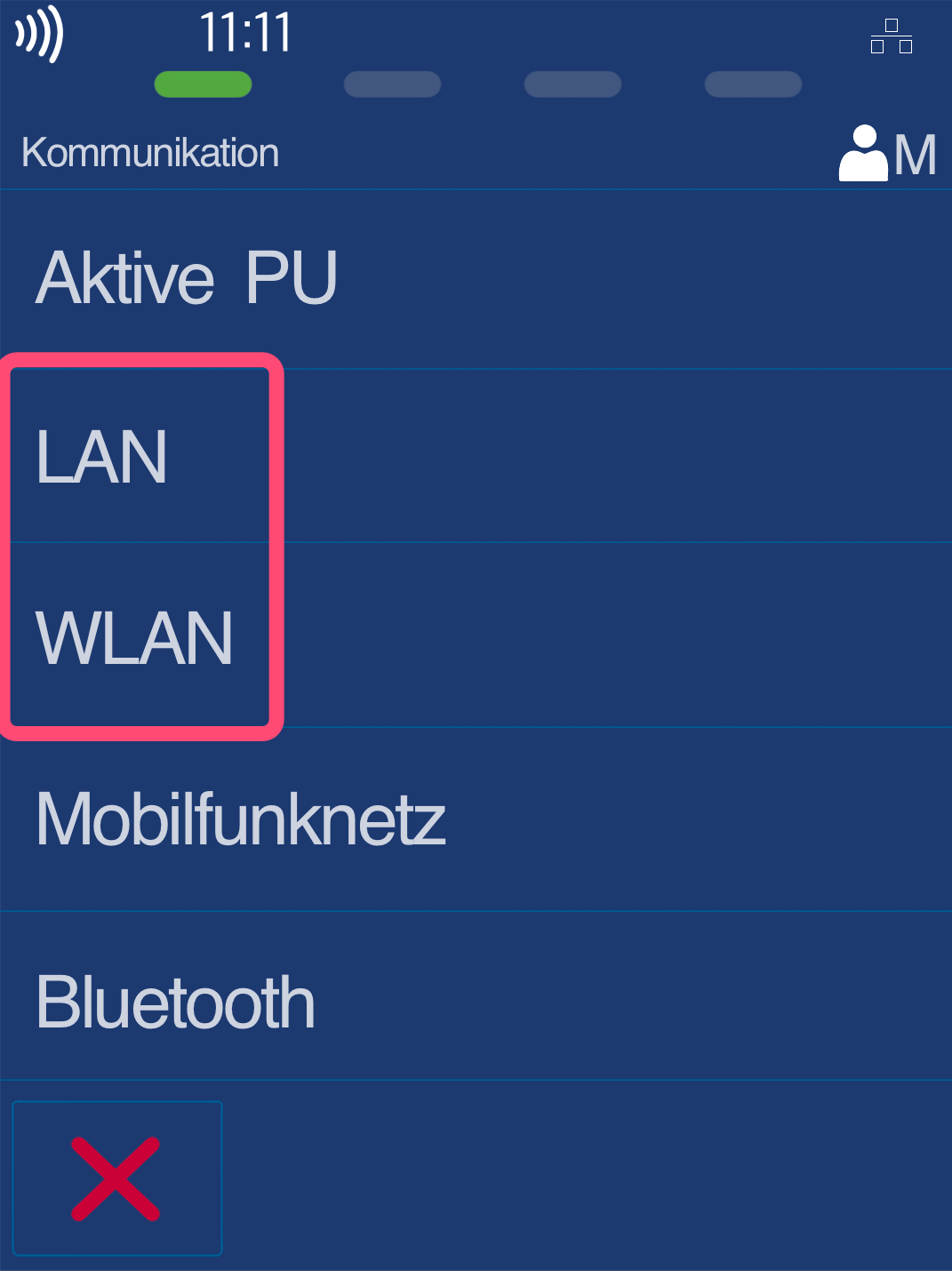

Communication

You will now see the available connection types.

Depending on your current connection, please select either WLAN or LAN.

IP Data Display

Your IP data will now be displayed.

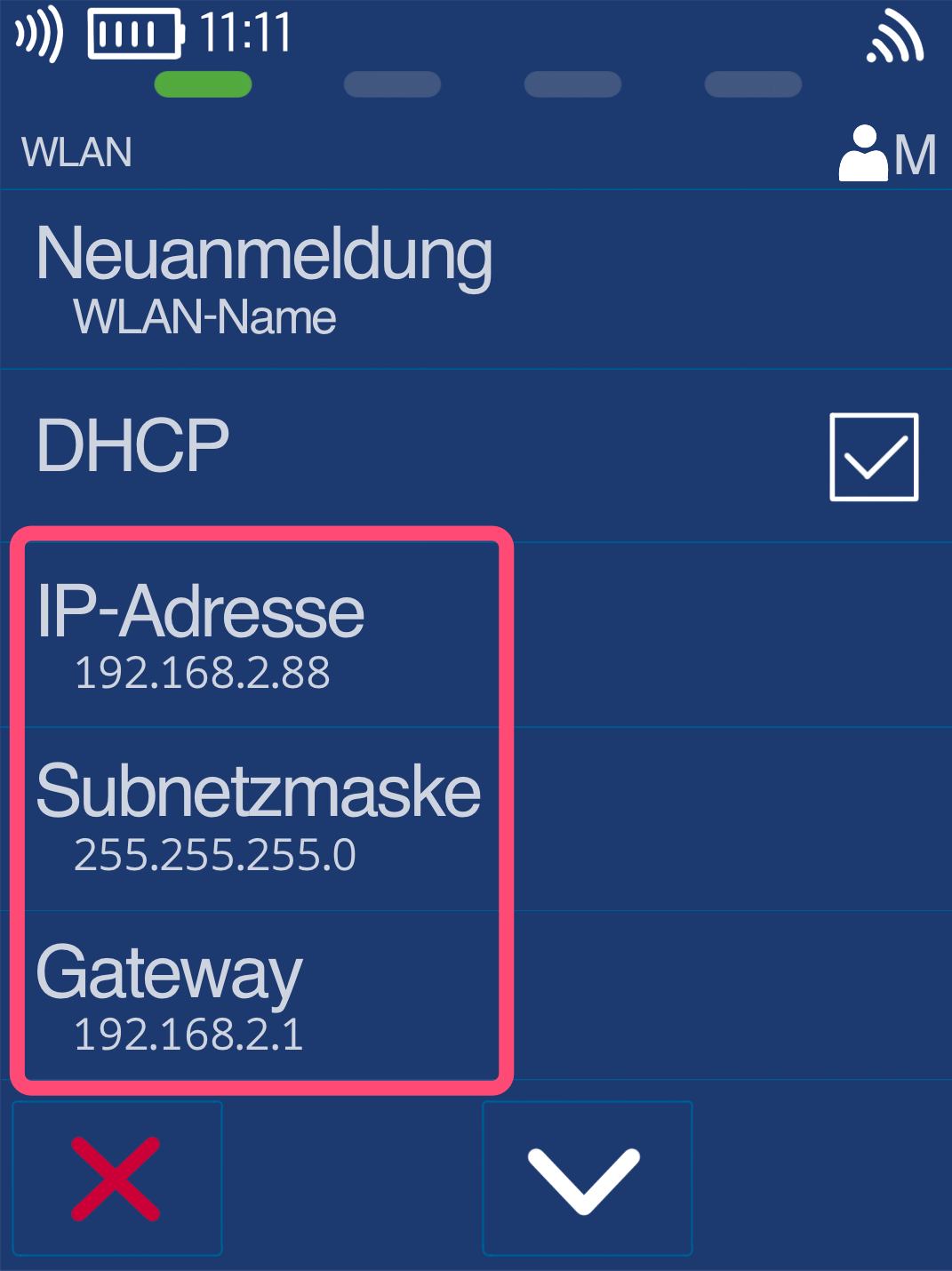

Fig. 1 – IP data for WLAN connection

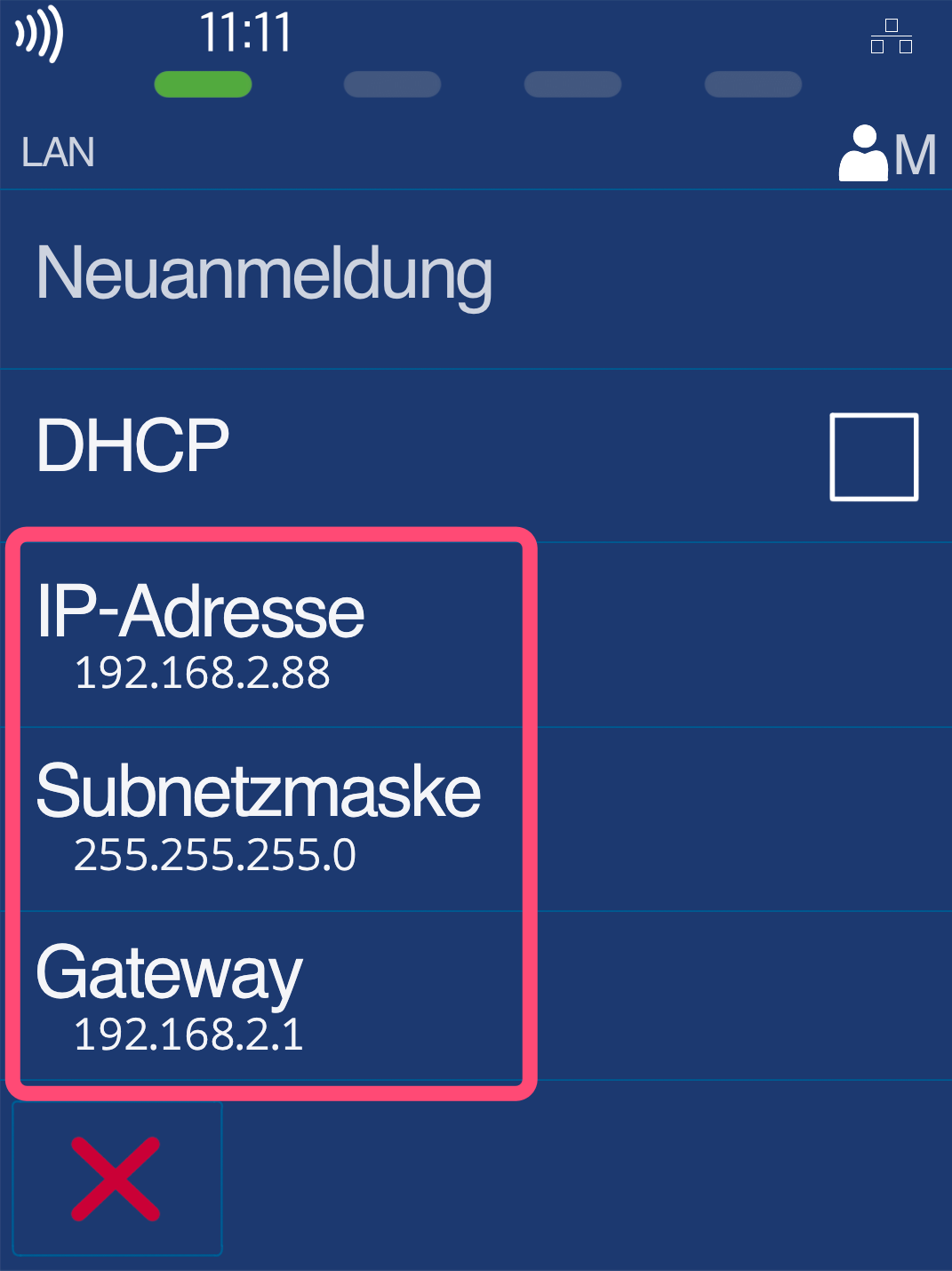

Fig. 2 – IP data for LAN connection
