Verifone - Perform Diagnoses

The diagnoses contain all necessary information for handling payment processing.

Contents of the Diagnoses

Receipt text

Payment methods

Card acceptance

Payment authorizations

Additional functions

To apply the changes effectively, it is important to run them manually in a specific order. We will show you here how to import the diagnoses.

Number of Diagnoses

1. Extended Diagnosis
2. Config Diagnosis
3. Config EMV Diagnosis

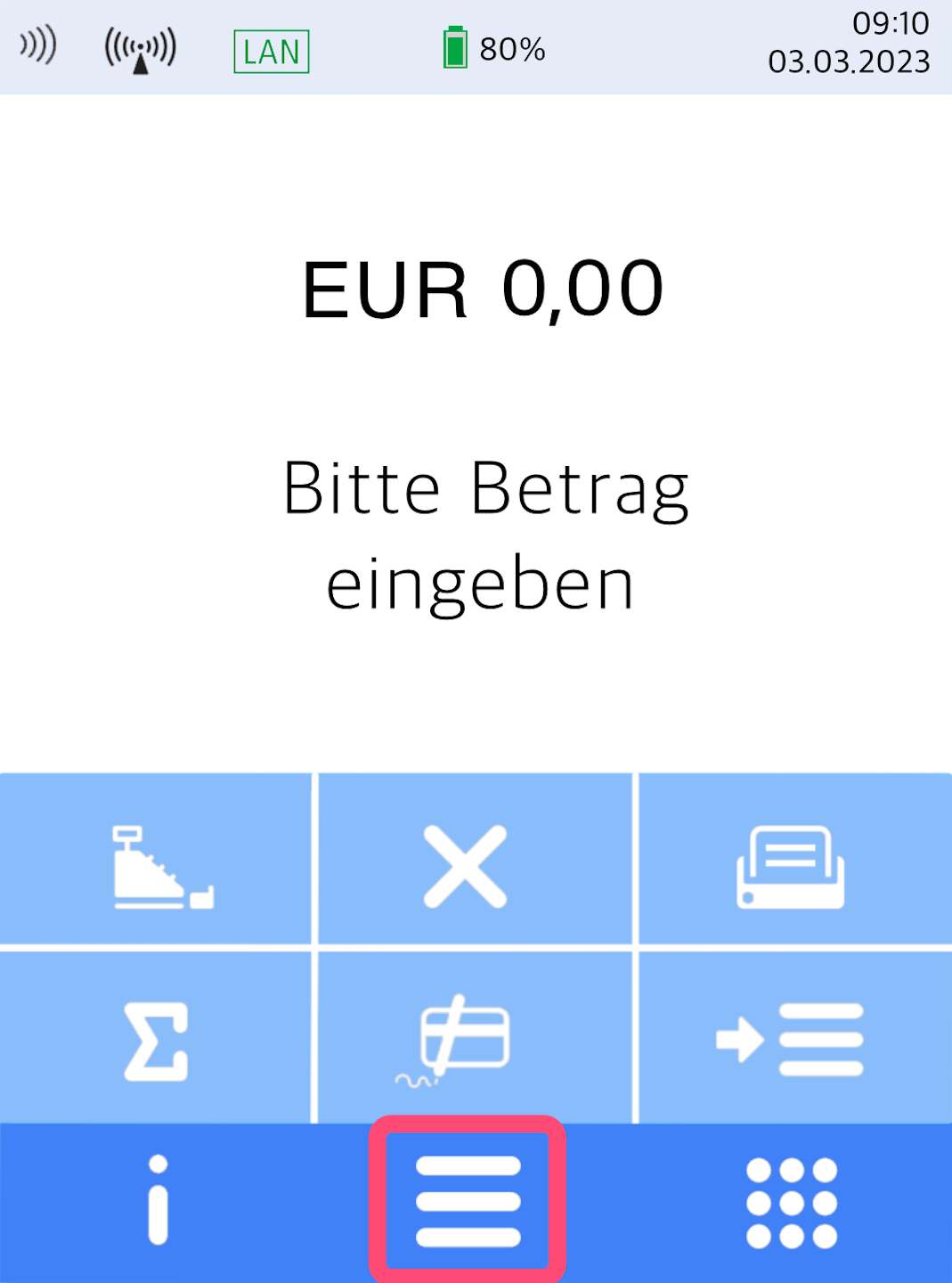

Menu Button

Here you see your home display.

Please press the button with the 3 horizontal bars to access the main menu.

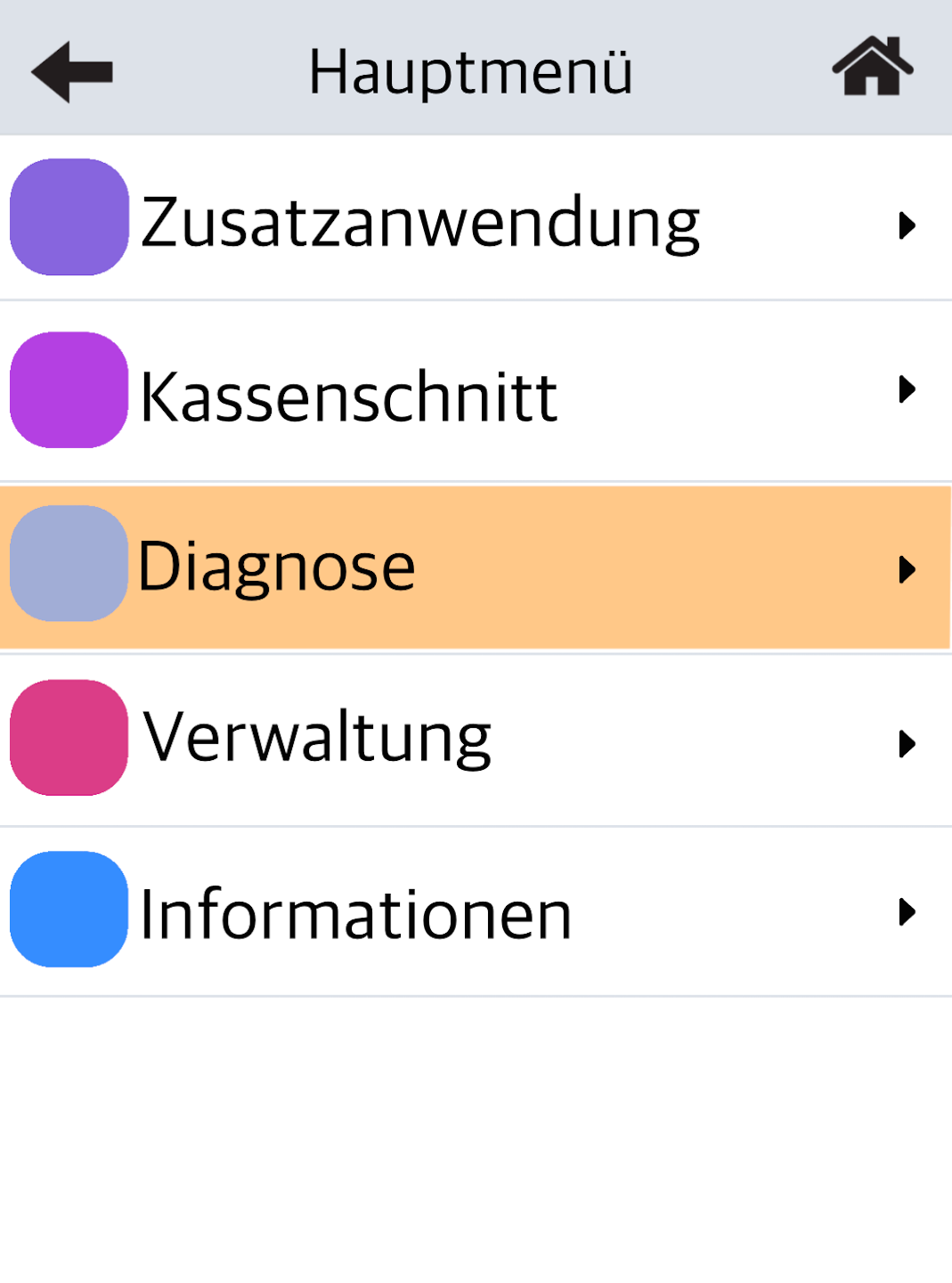

Diagnoses

Please select the menu item Diagnose.

Select by tapping.

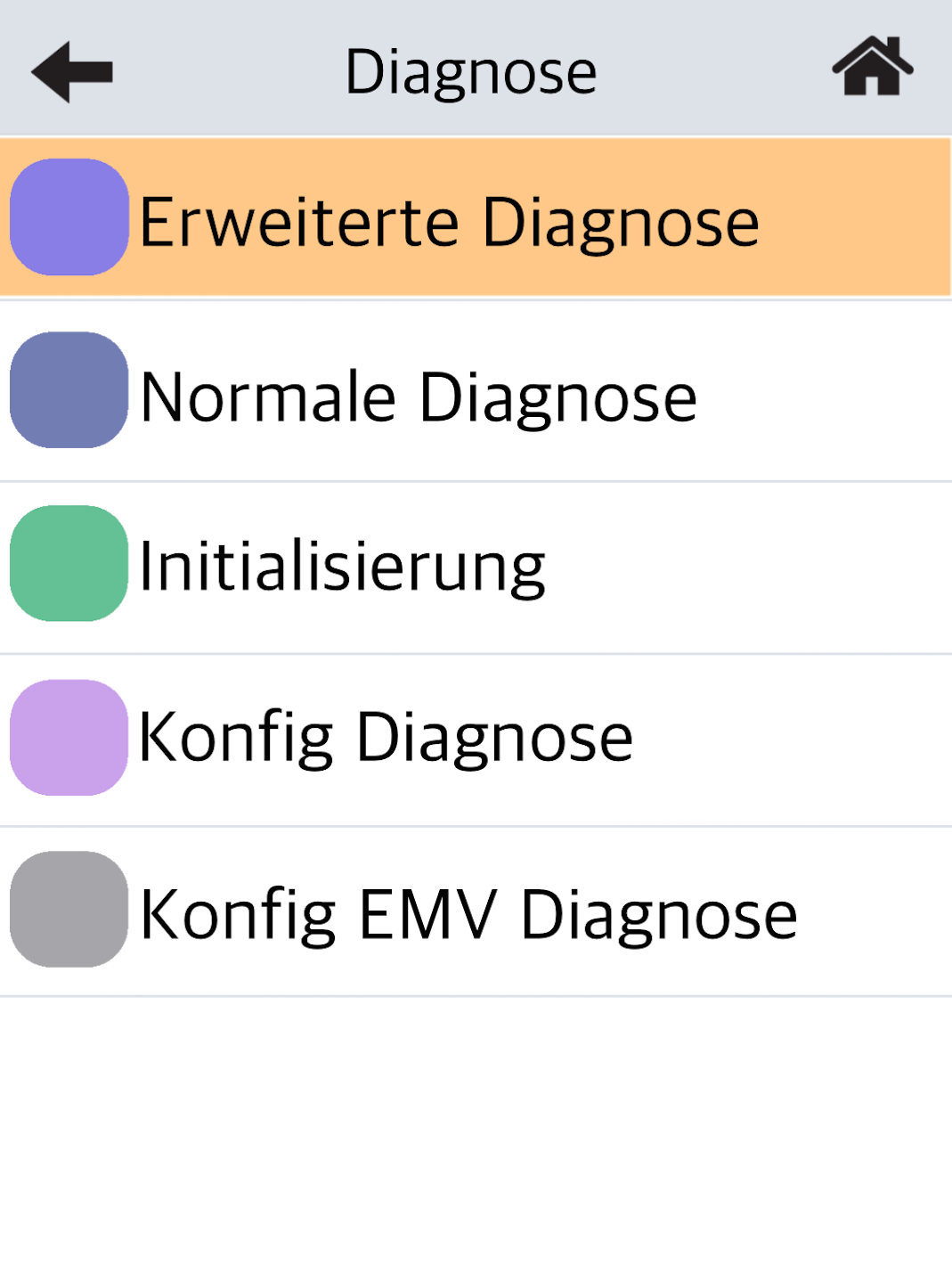

Extended Diagnosis

Please select Erweiterte Diagnose as the first step.

A receipt stating Network ready for operation will be printed.

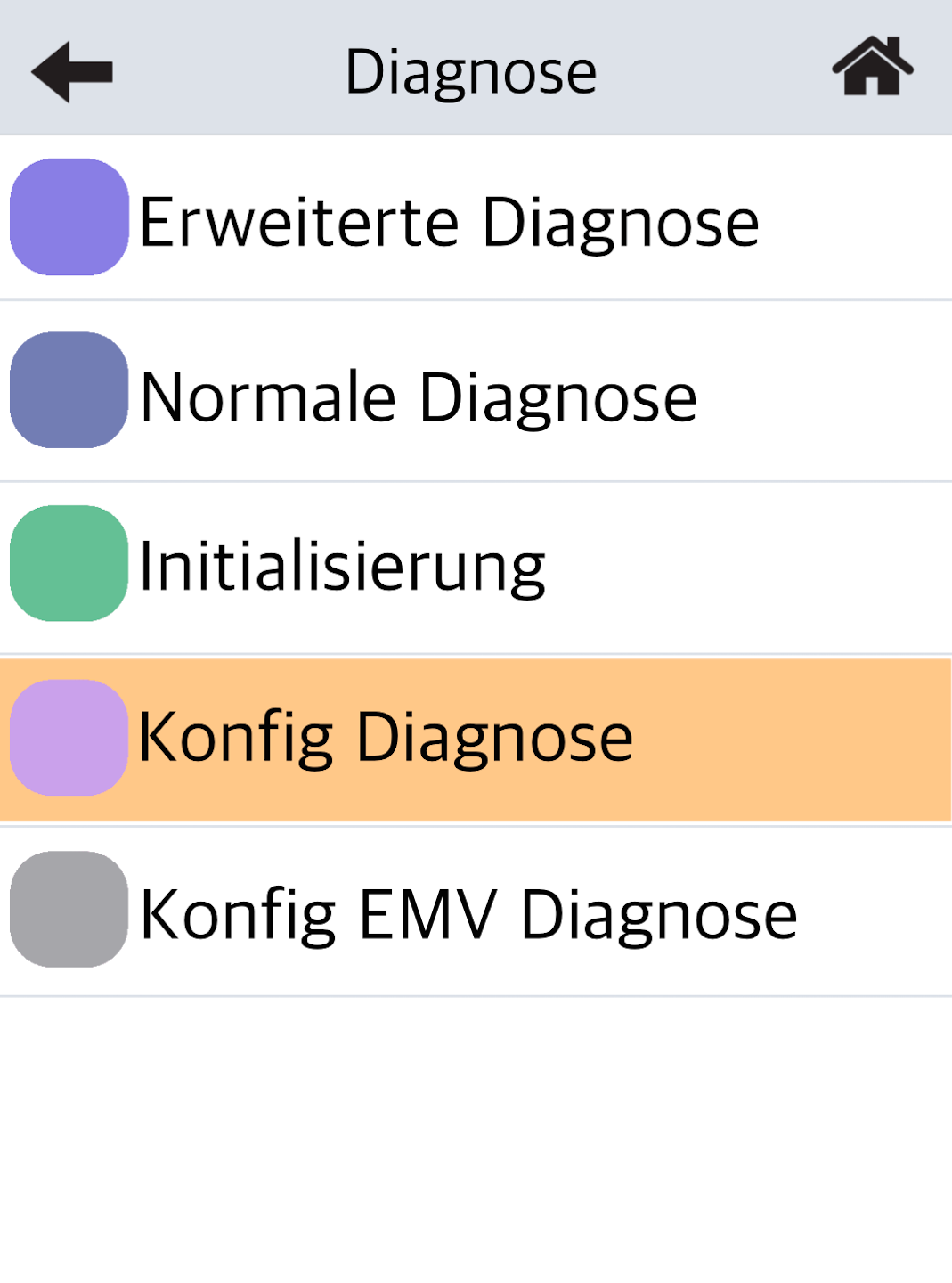

Config Diagnosis

In the second step, please select Konfig Diagnose.

A receipt stating Network ready for operation will be printed.

EMV Diagnosis

In the final step, please select Konfig EMV Diagnosis.

Again, a receipt stating Network ready for operation will be printed.

The card reader has now adopted all stored changes and updates.
