CCV - Display and Keypad Settings

In this tutorial, we will show you how to adjust the display brightness and keypad backlight on your CCV Mobile Premium or Base Next according to your preferences.

For the CCV Mobile Premium, these settings affect battery performance.

Main Menu

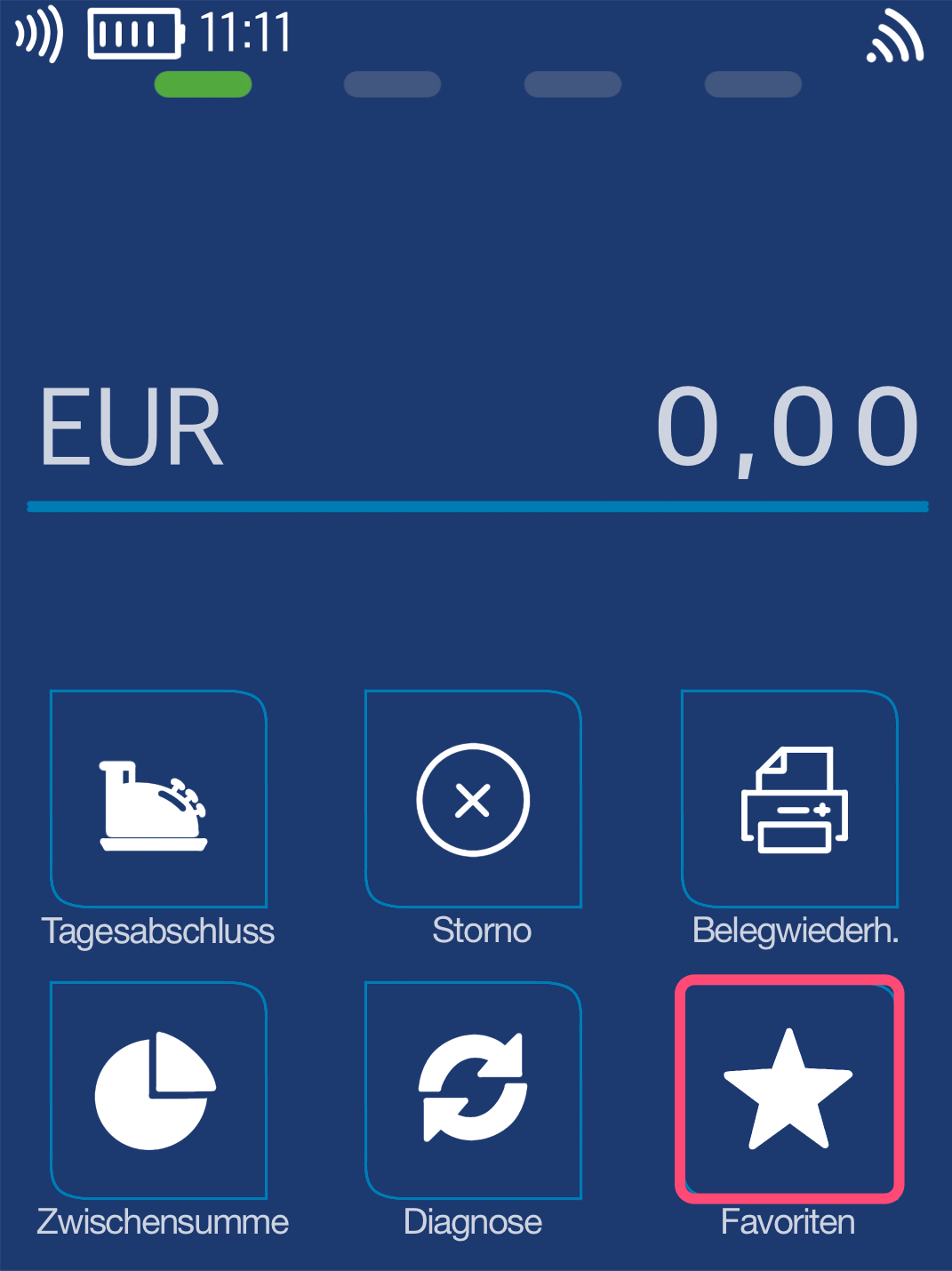

You will see your start display. Please select the Favorites button.

Select by tapping the touchscreen.

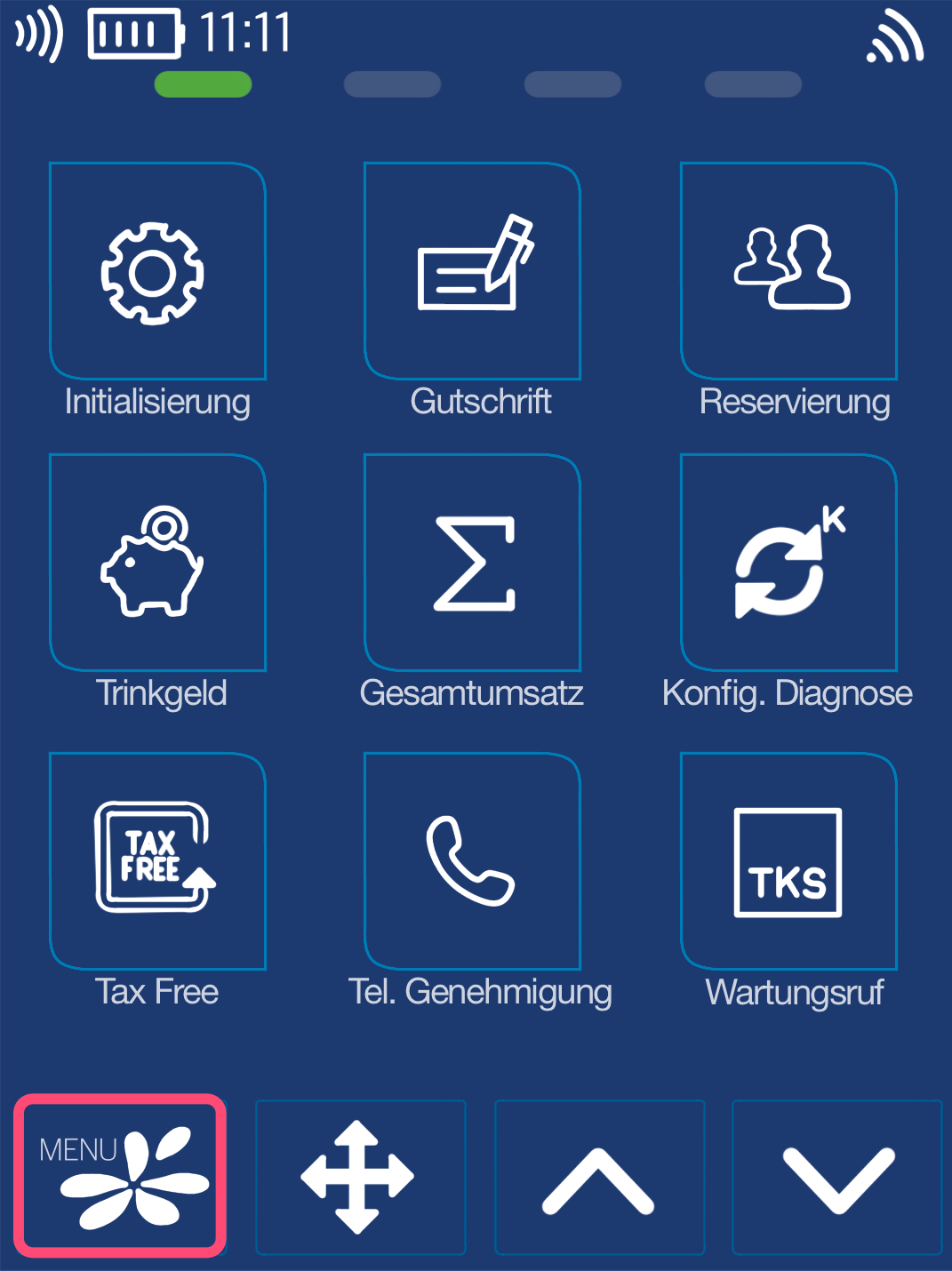

Fig. 2 – Now please select the Menu button.

PIN Entry

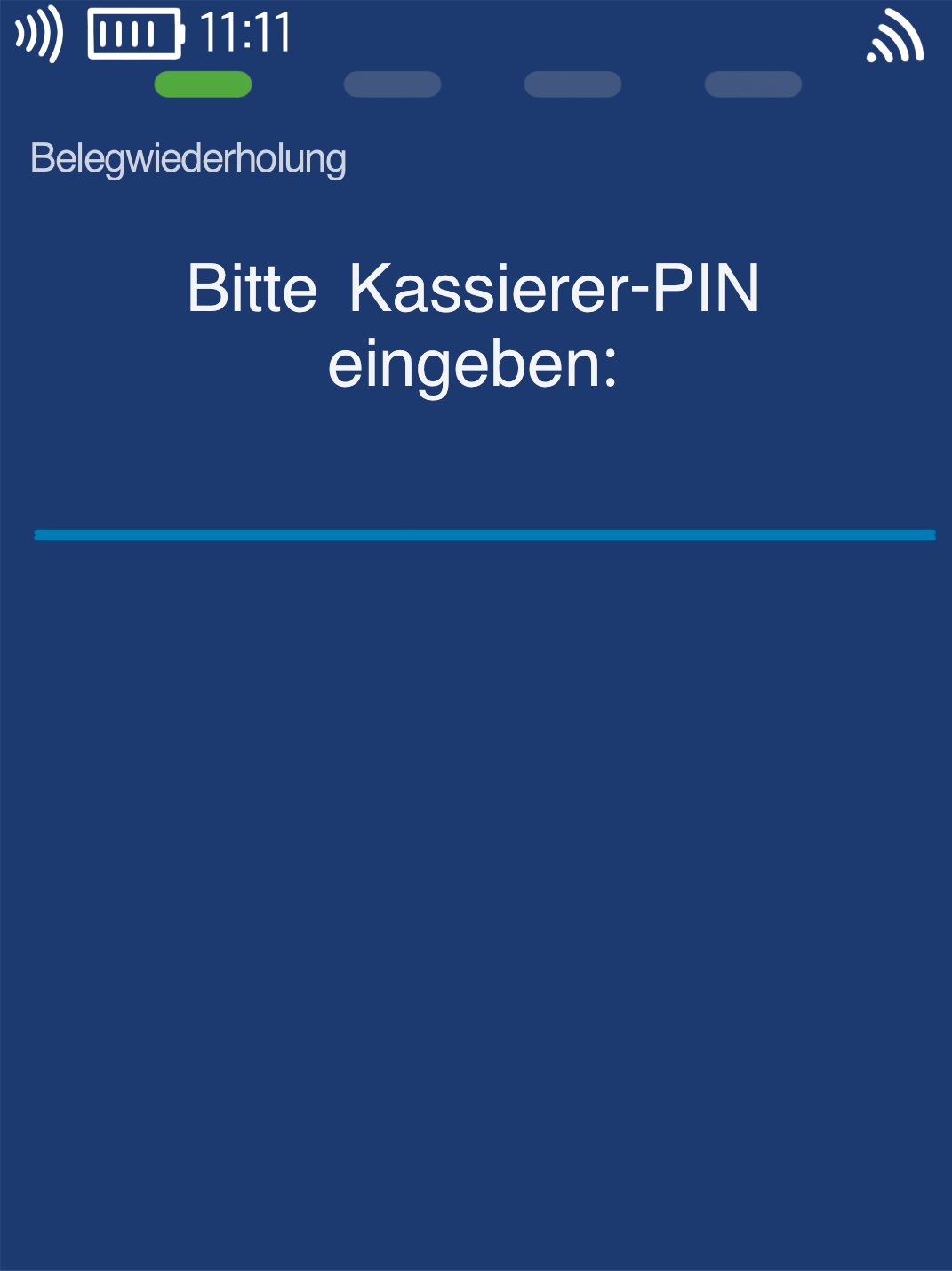

Please now enter your merchant PIN.

You can find the Terminal ID on your merchant receipts or on the end-of-day report.

Terminal IDs starting with 61xxxxxx: 111111

Terminal IDs starting with 68xxxxxx: 111111

Terminal IDs starting with 526xxxxx: 0123

Please confirm the entry by pressing the green OK button.

Menu Structure

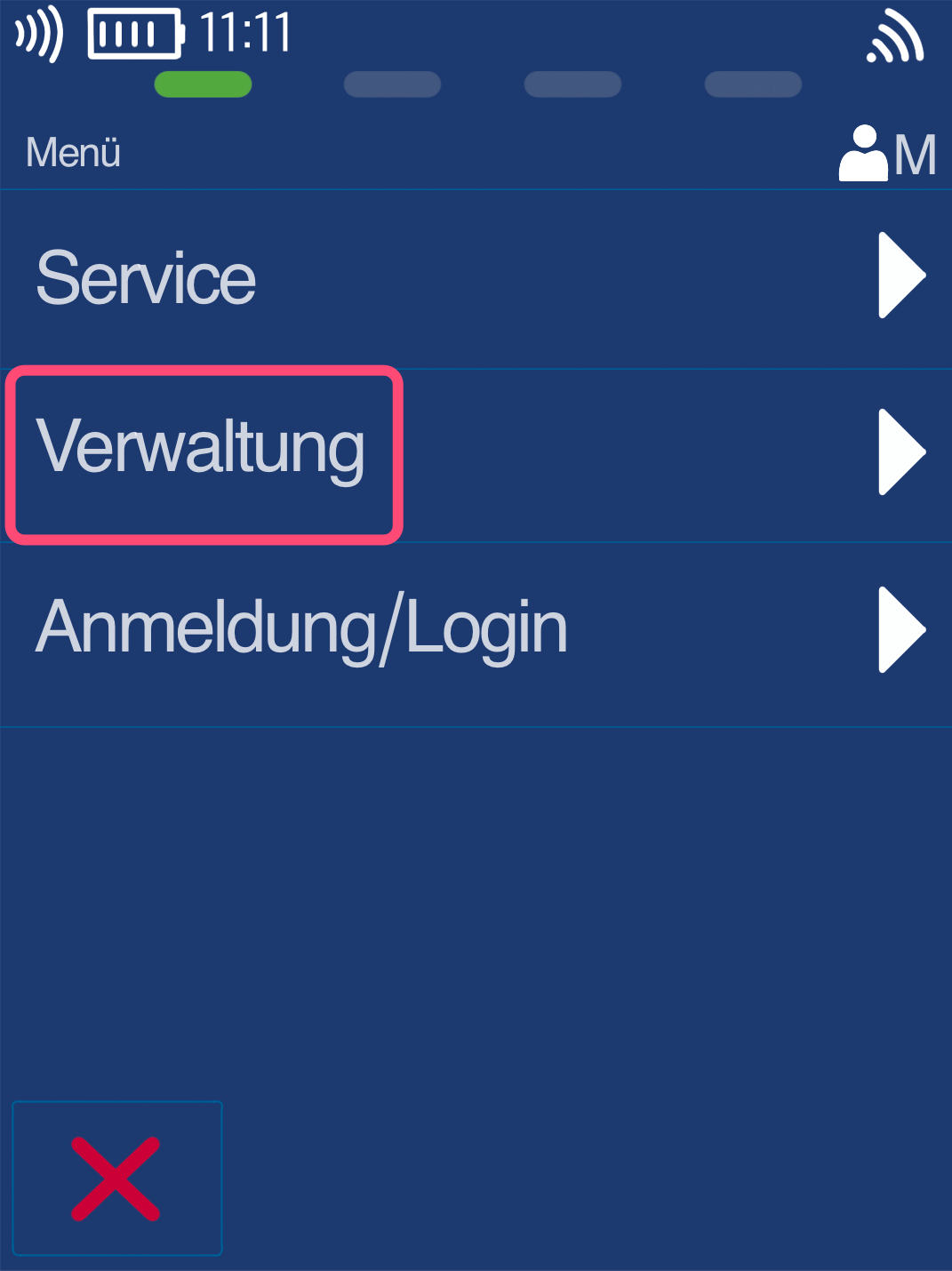

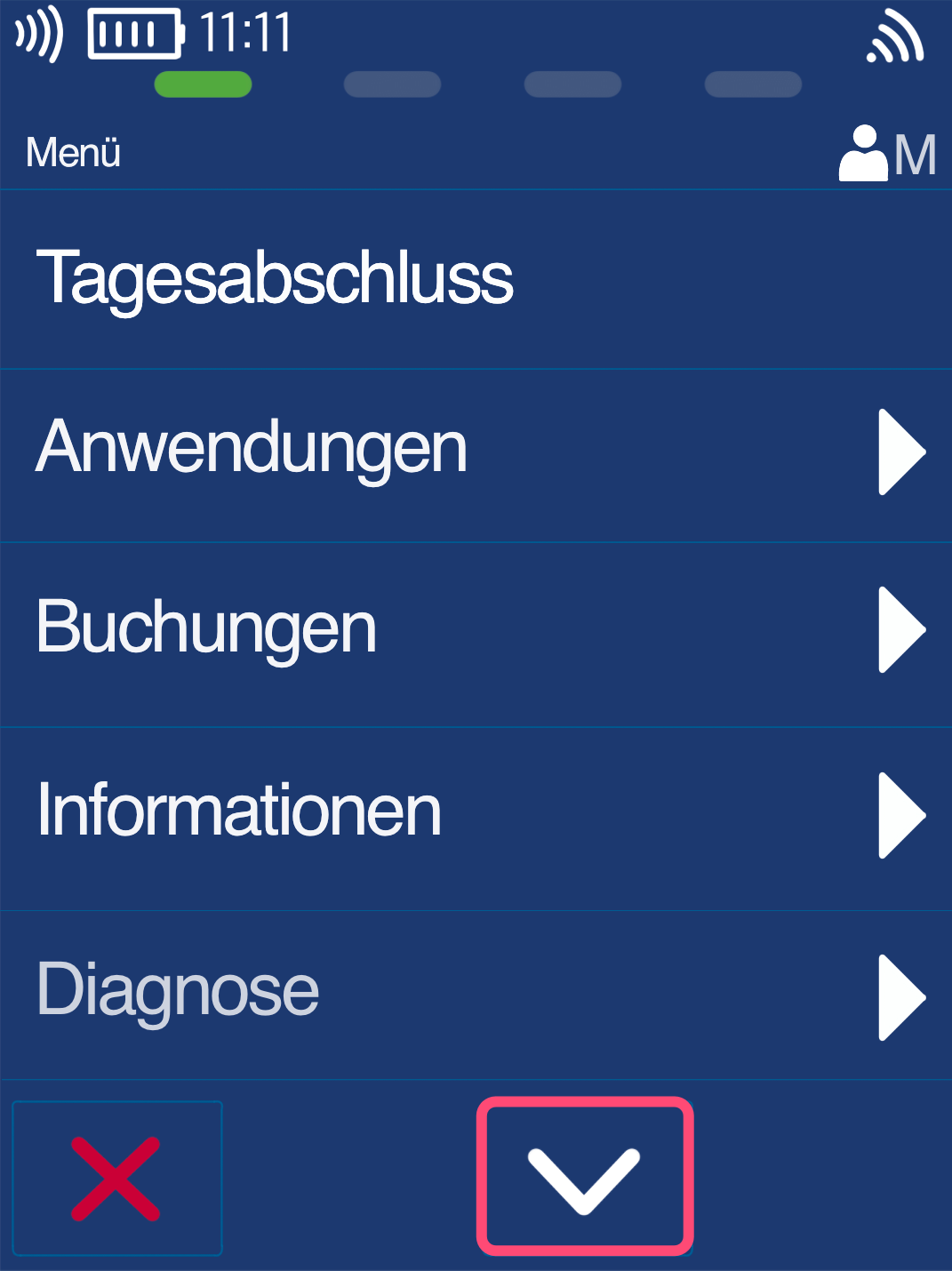

Please use the down arrow key to navigate to the Administration menu item (Fig. 2).

Fig. 3 – Here, please select the menu item System.

Settings and Completion

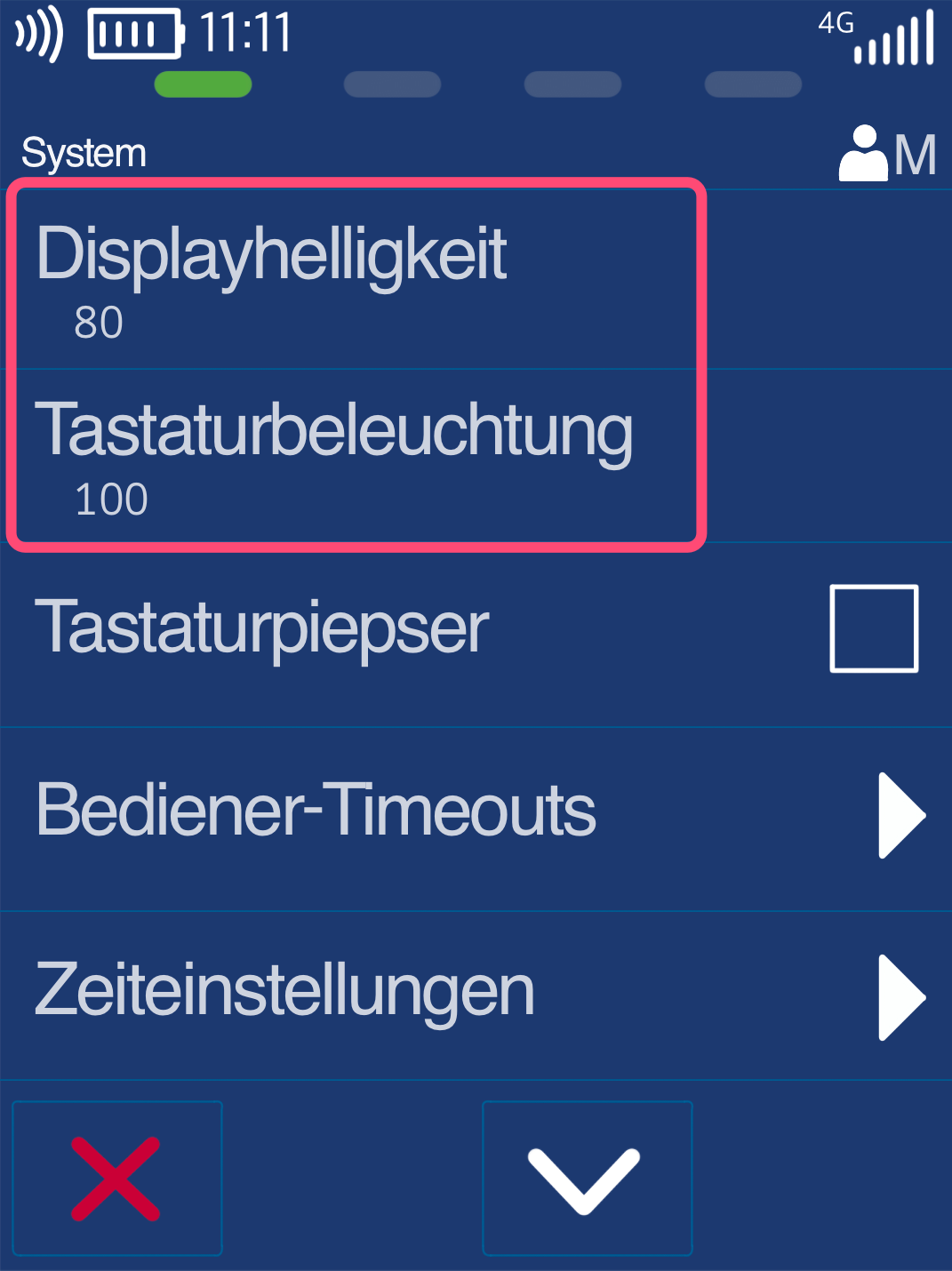

You can now adjust the display brightness and the keypad backlight to suit your needs.

For the CCV Mobile Premium, these settings impact battery life.

To return to your start display, please press the red Stop button.

Configuration is now complete.
