Verifone - Tillhub POS Integration

Configuration for the Tillhub POS System

You have a Tillhub POS system (Apple iPad) and want to connect your Verifone card reader to the register?

Some configurations on the card reader are required for this.

We will show you how it works.

Have you already set up your connection?

Are the connection symbols active?

Here we offer you the tutorials:

Setting up your connection

Explanation of connection symbols

Checking your connection

Menu

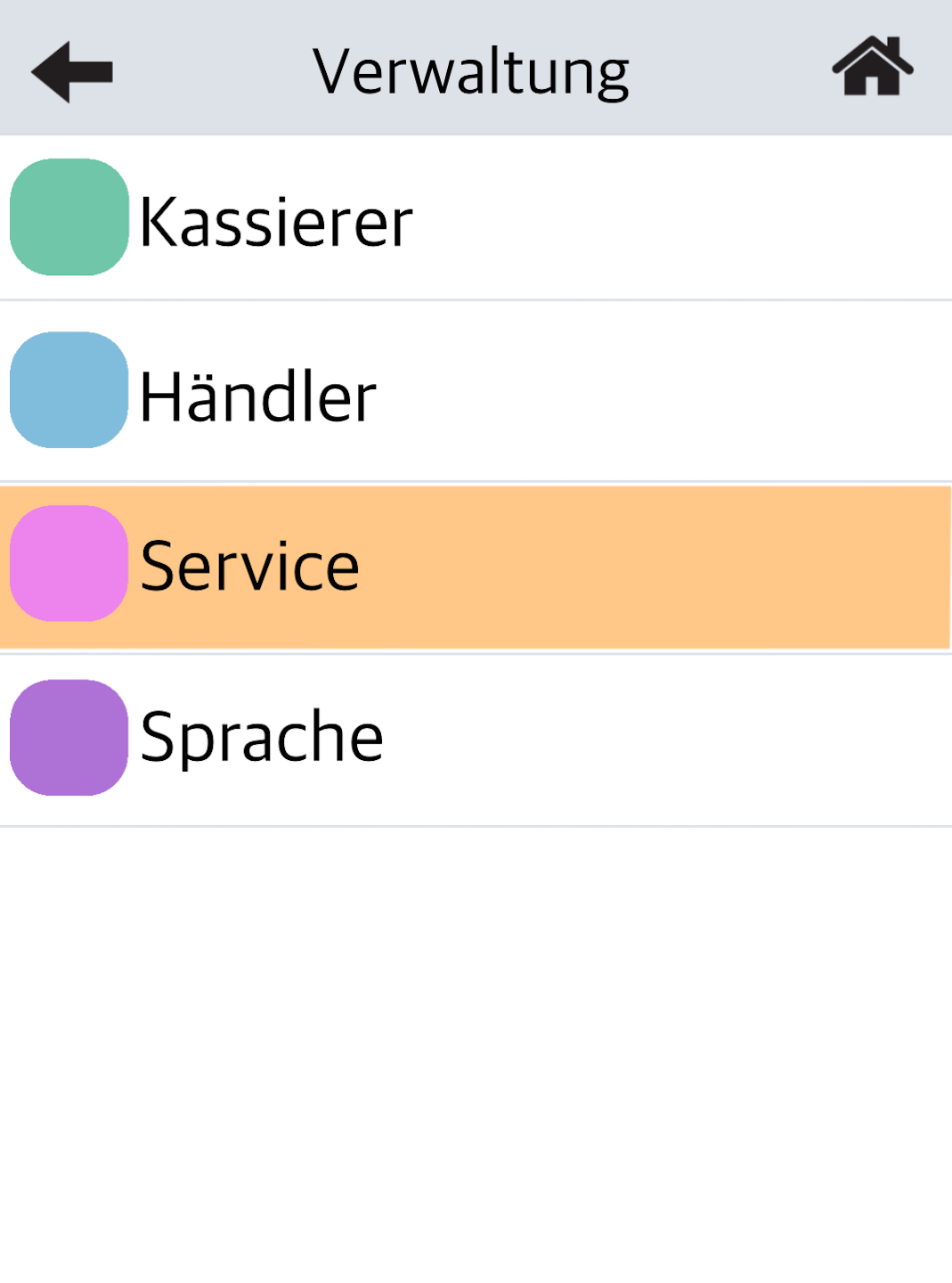

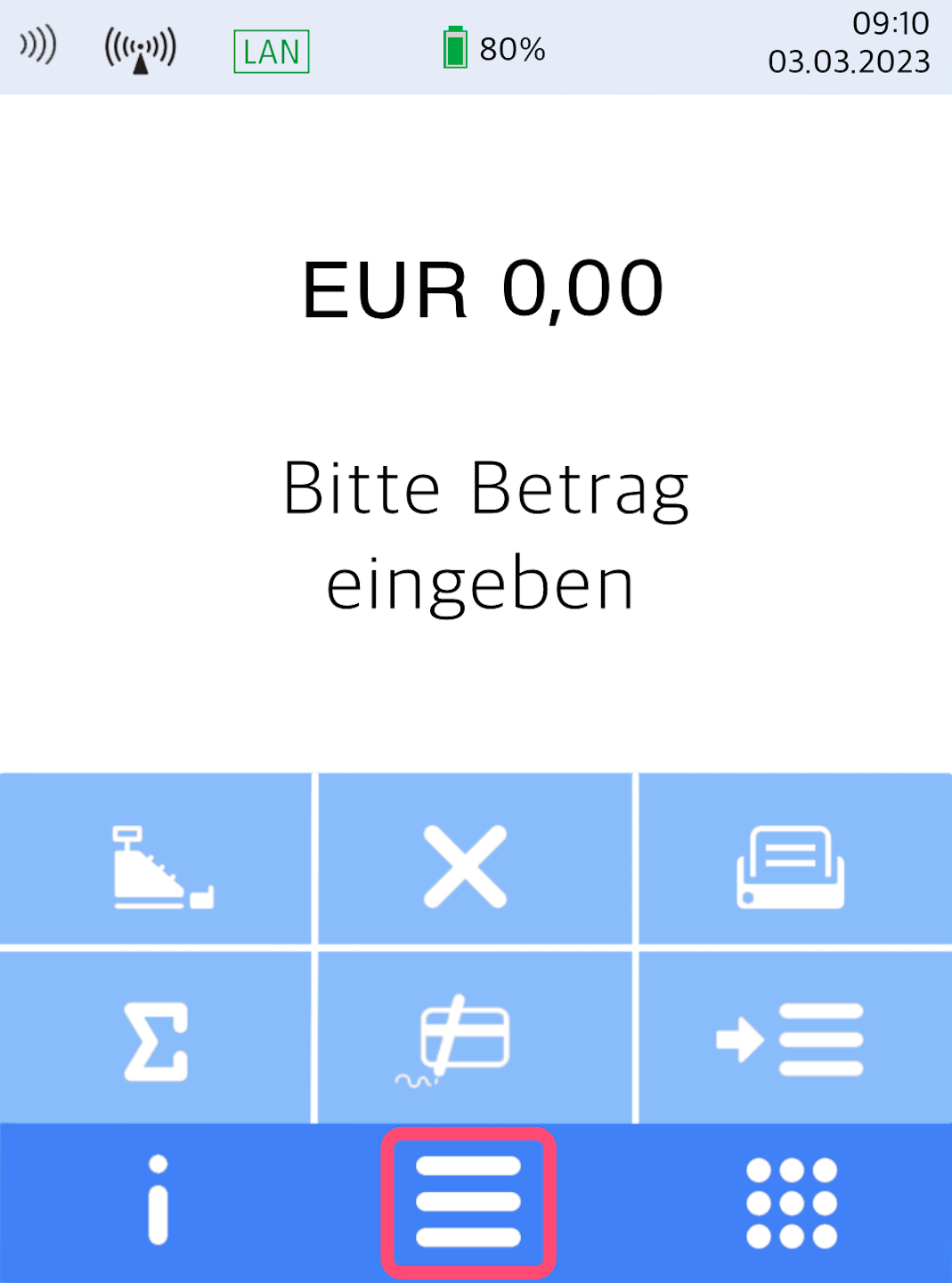

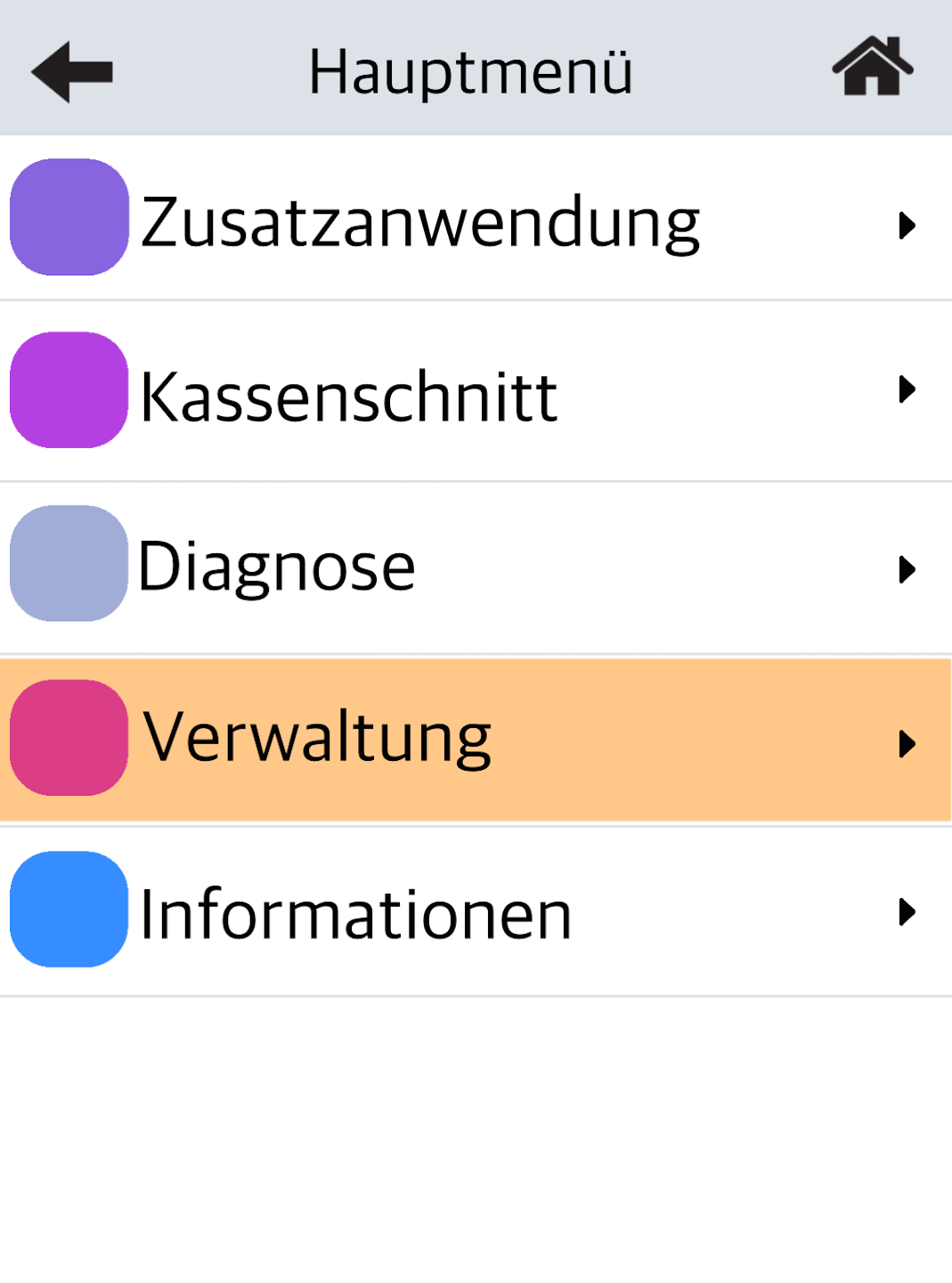

To configure your card reader for the Tillhub POS system, please follow Figures 1–3.

Passwords:

TID: 61xxxxxx – 820240

TID: 68xxxxxx – 222222

TID: 526xxxxx – 111111

POS Interface

To select Kassenschnittstelle, please follow Figures 1–2.

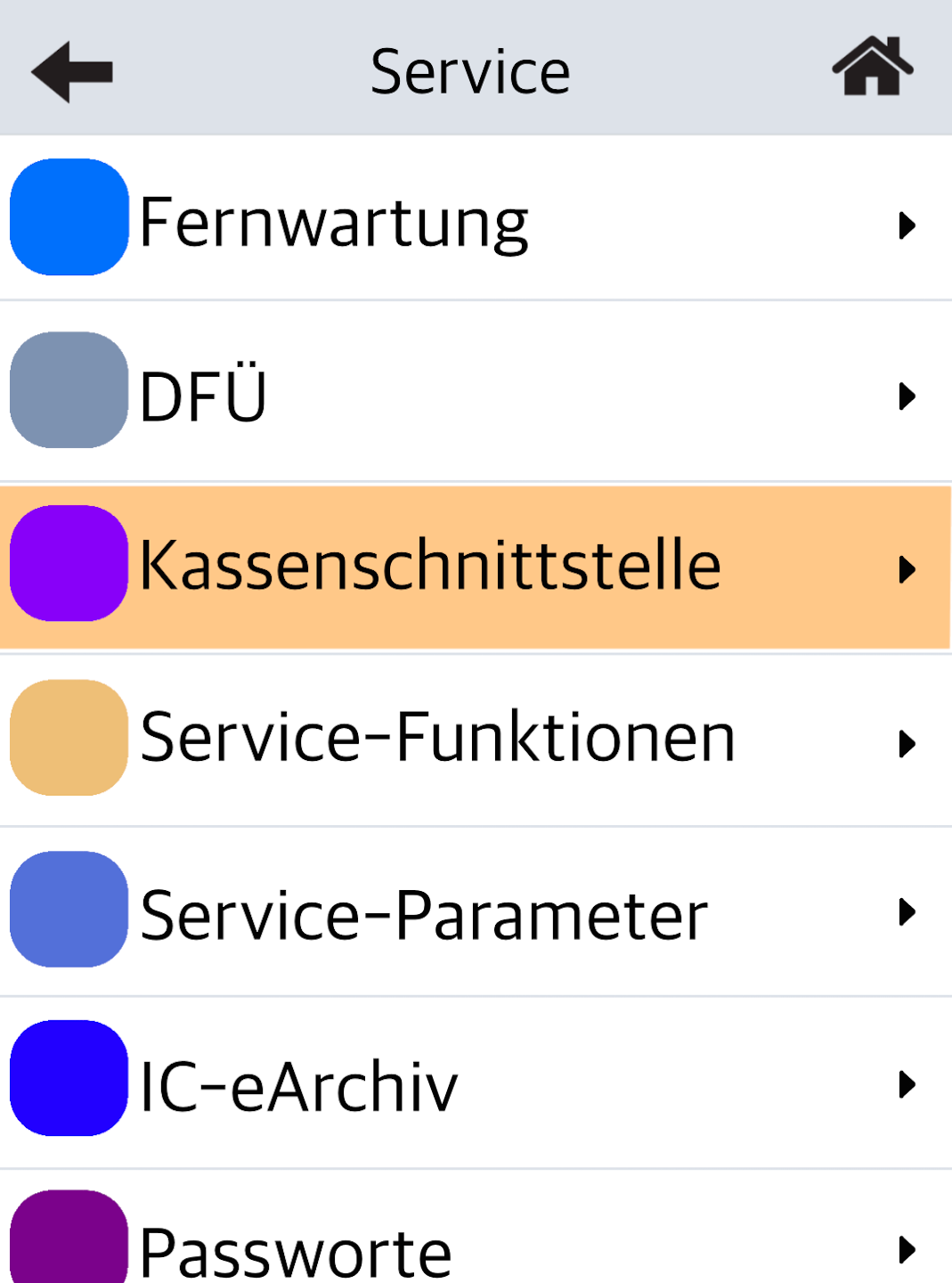

Fig. 1 – Select Kassenschnittstelle

Fig. 2 – Select OPI

Activation

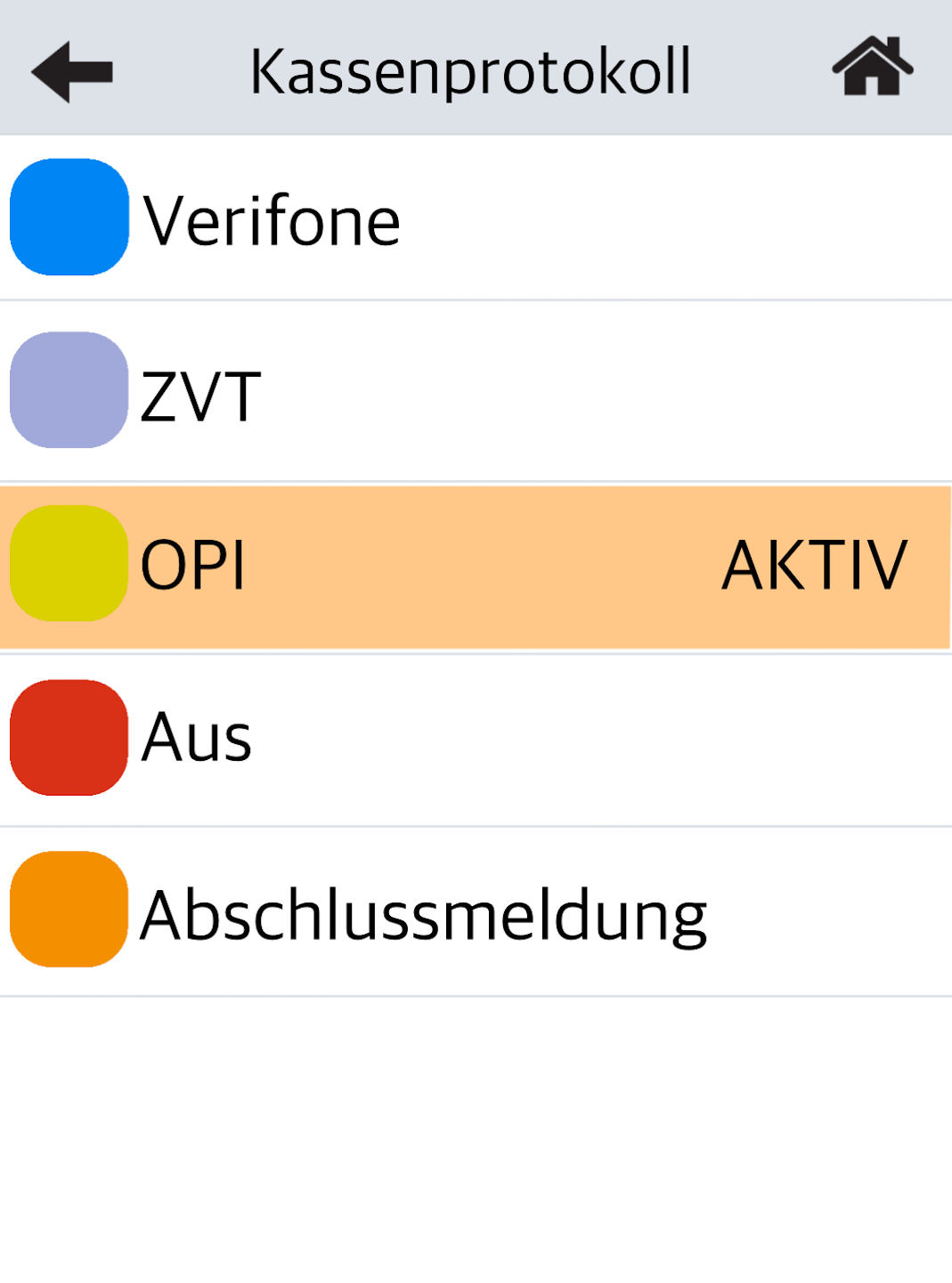

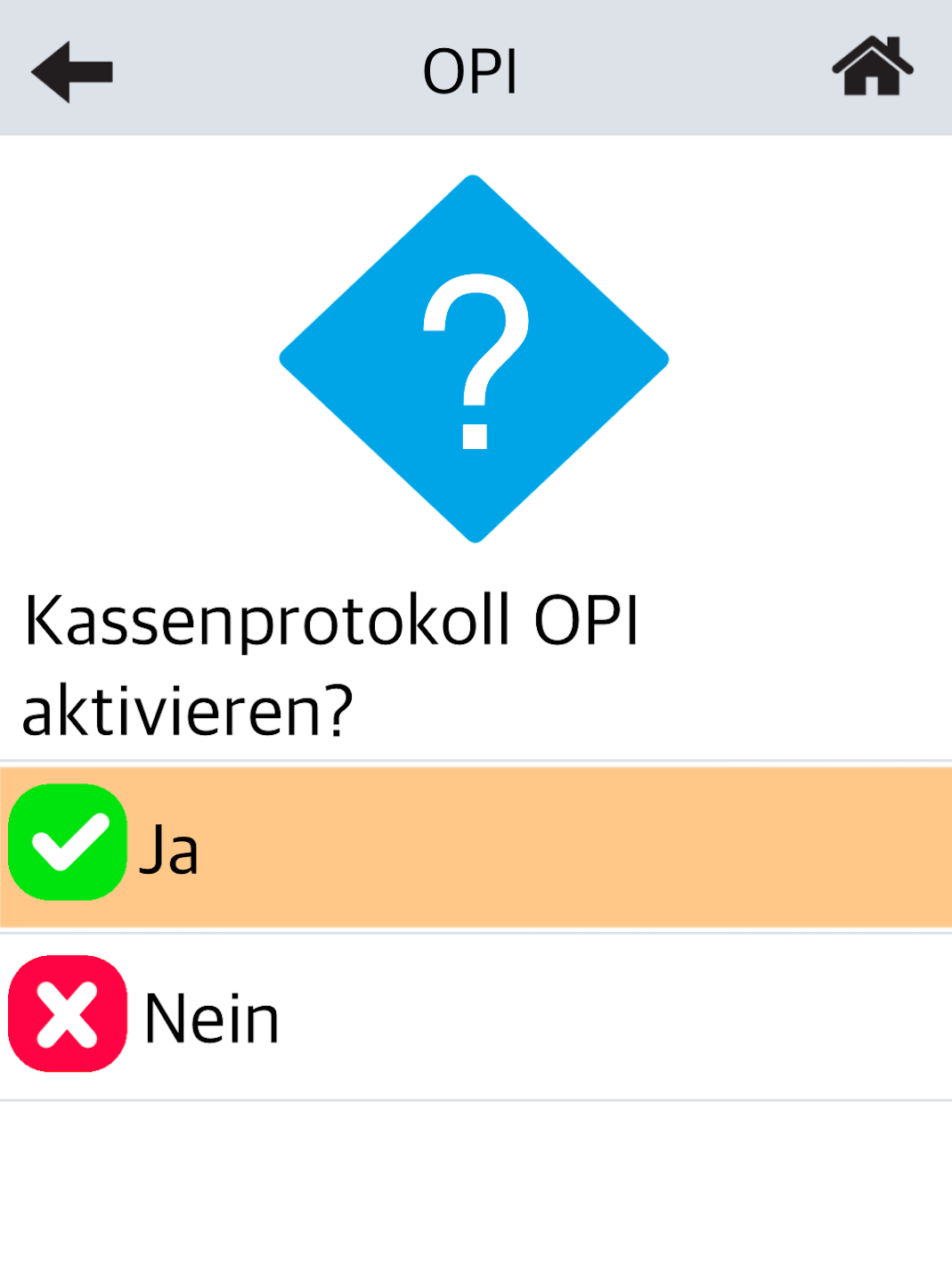

Fig. 1 – After selecting OPI, you will be asked if you want to activate the OPI protocol. Please confirm with Ja.

Fig. 2 – Do you want to set up receipt printing on your POS system? Please confirm with YES.

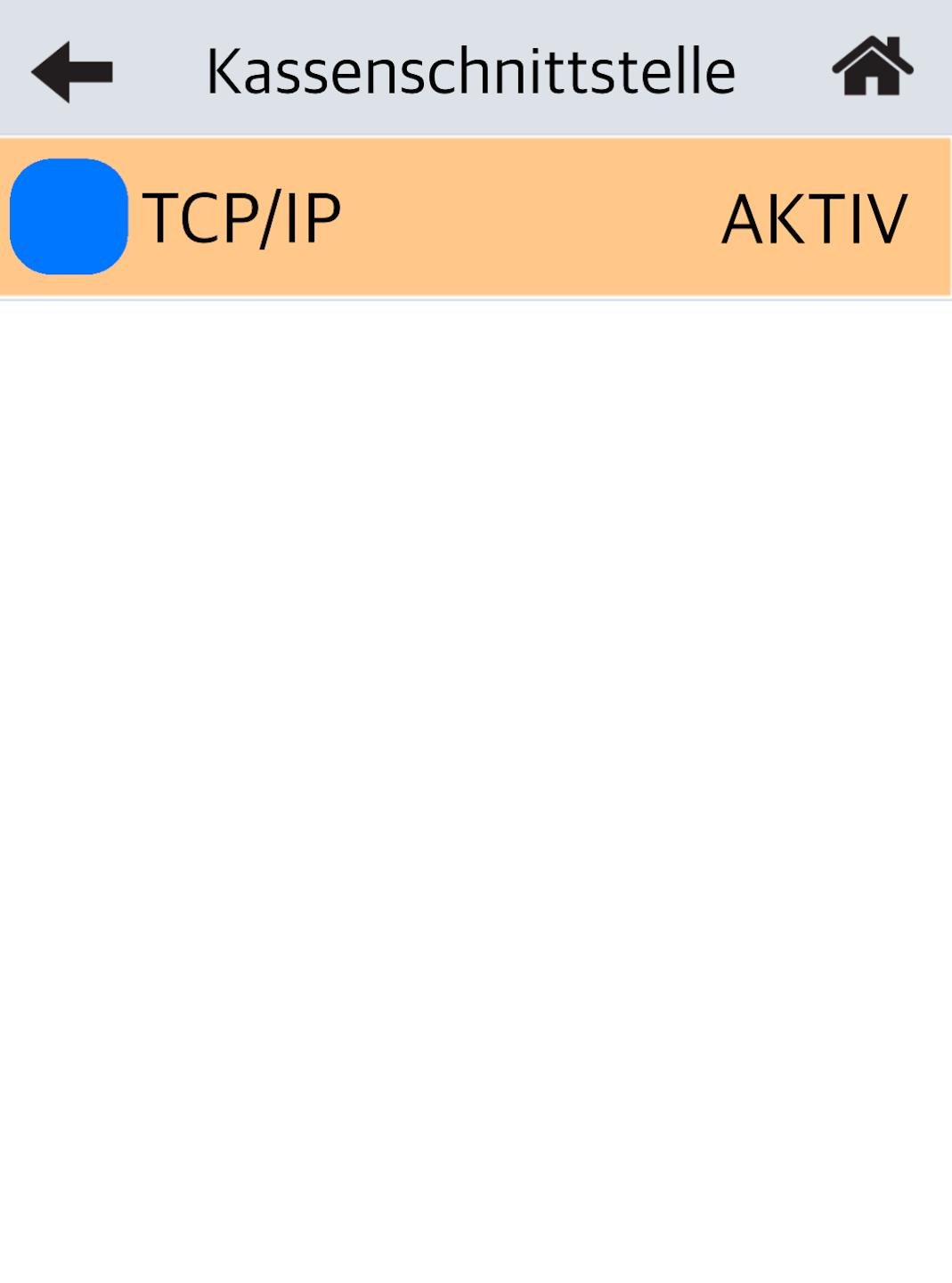

Fig. 3 – Please tap TCP/IP.

Port Settings & Completion

The port numbers for the Tillhub POS system are:

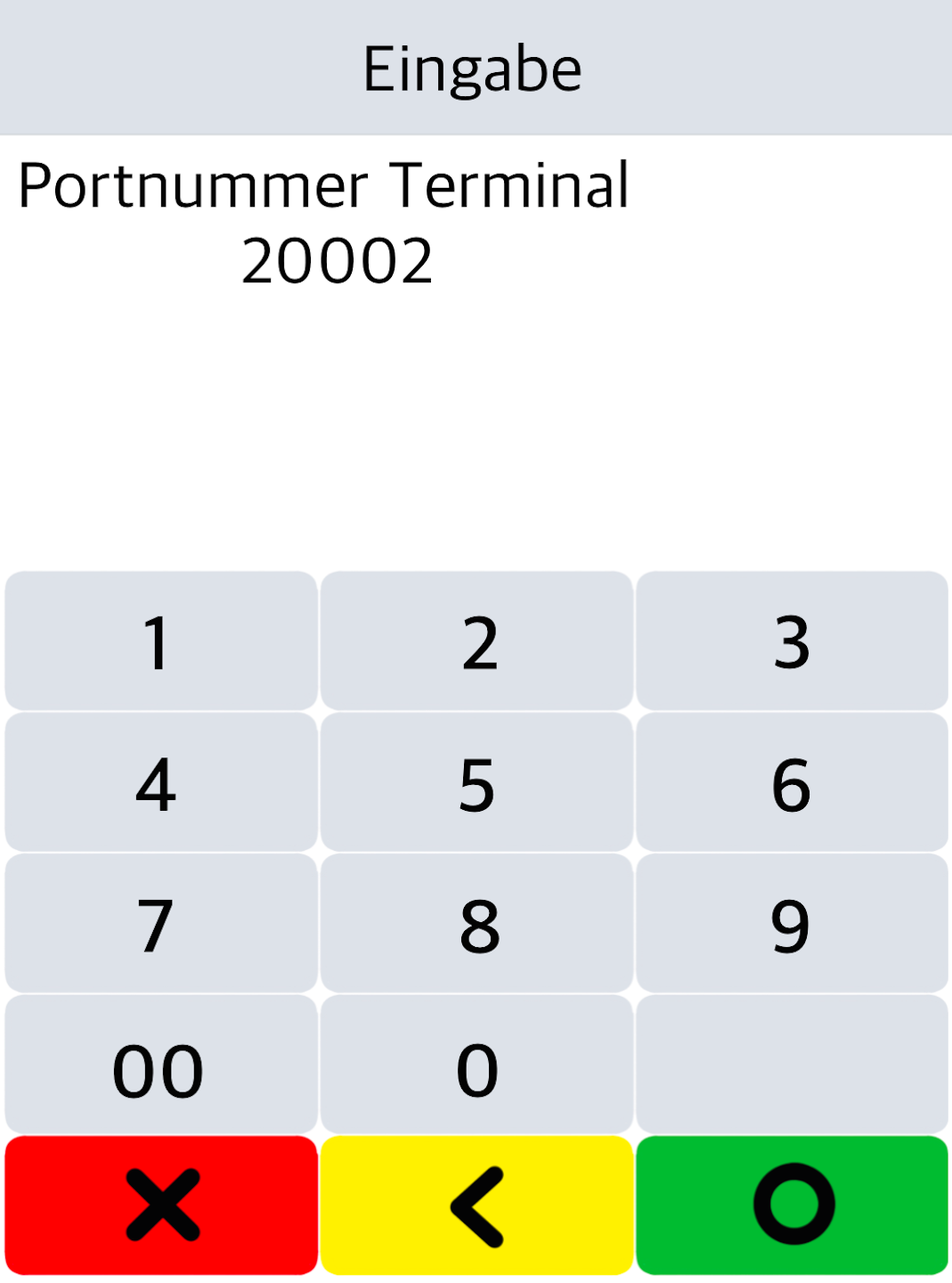

Terminal: 20002

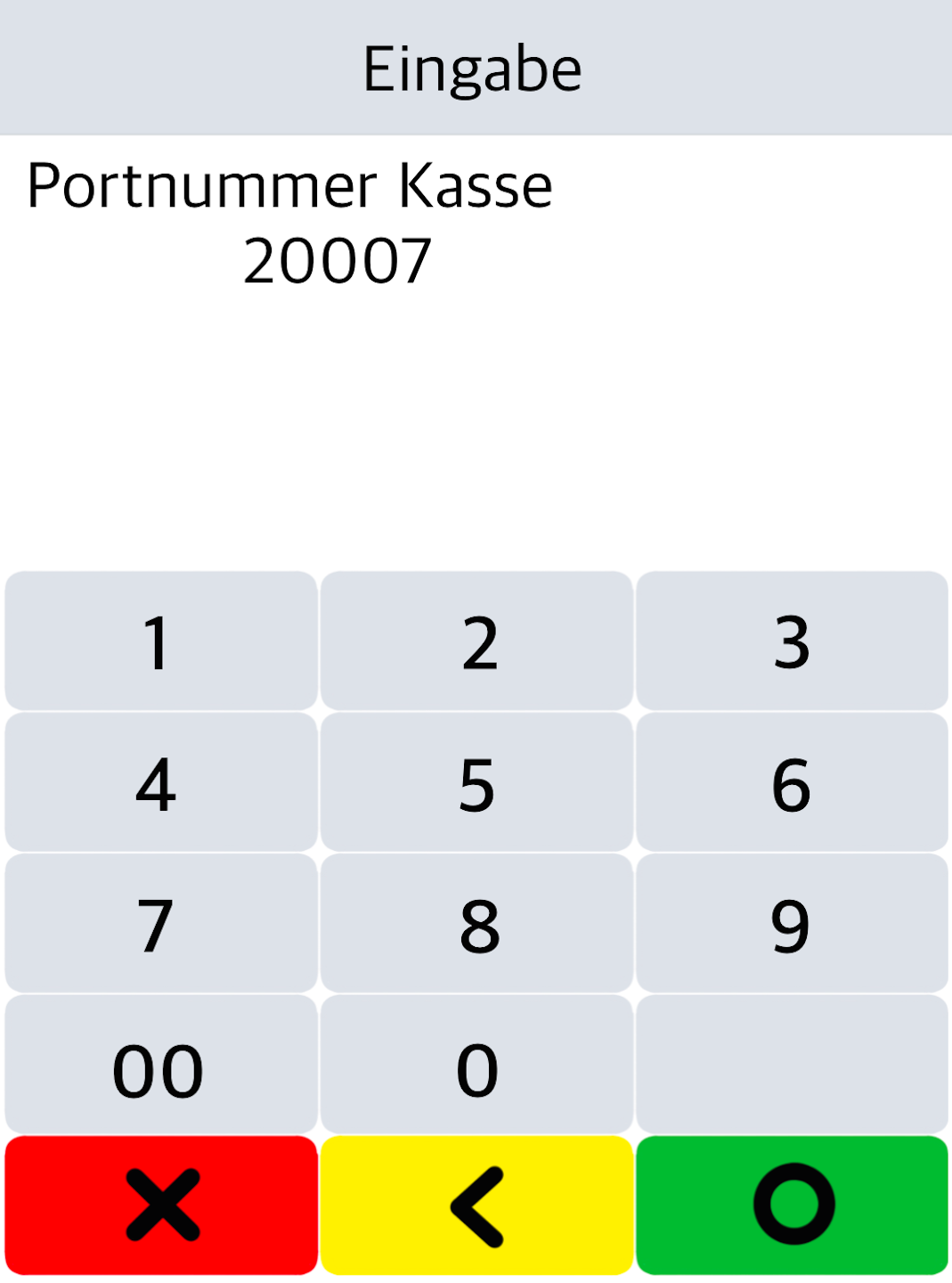

POS System: 20007

These port numbers are usually already entered by the Verifone system. Please confirm the port numbers.

Completion

The configuration for the Tillhub POS system is now complete.

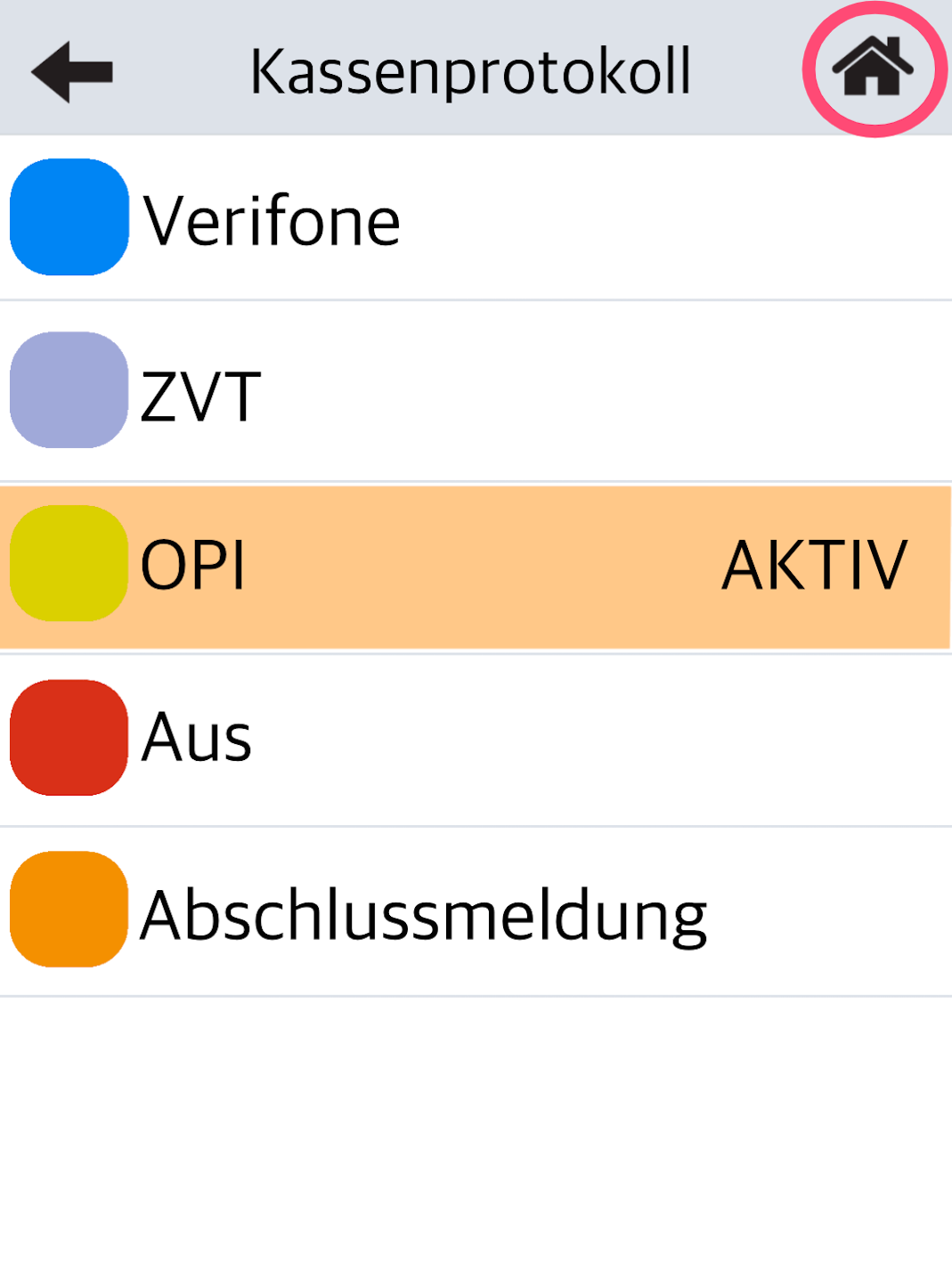

To return to your home display, please tap the house icon at the top right.

Next, configure your Tillhub POS system so that you can send payment amounts to the card reader.

Tillhub POS setup for the card reader

(as a step-by-step tutorial or as a setup video available)
